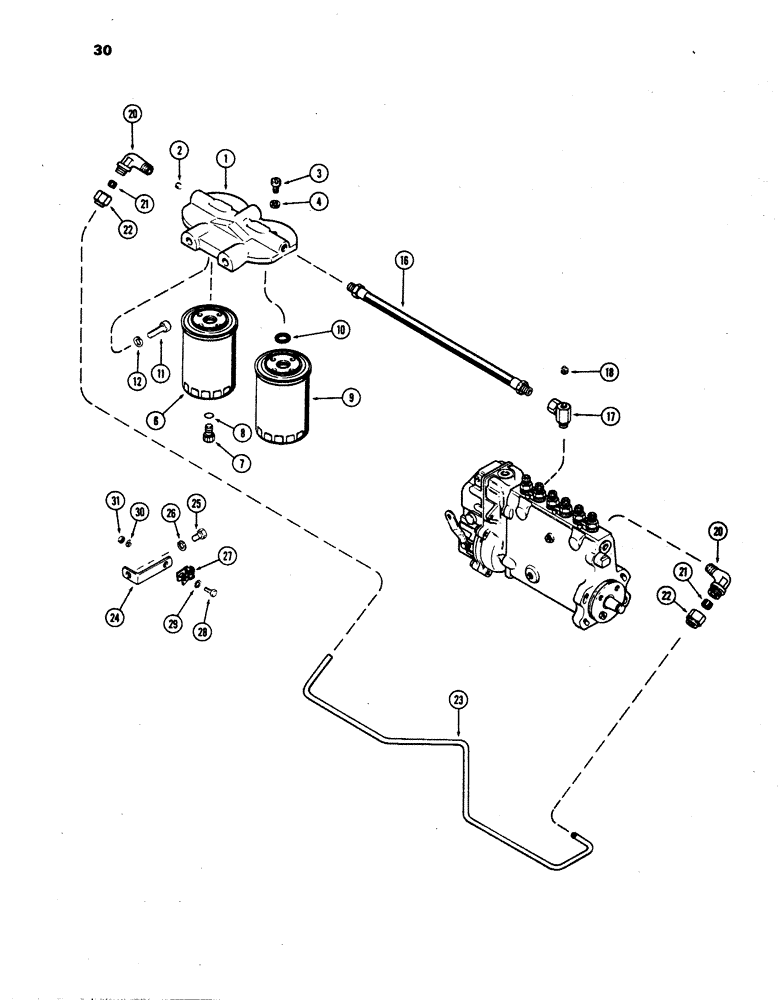

Запчасти Case W24B (030) - FUEL FILTER SYSTEM, (504BD) DIESEL ENGINE (03) - FUEL SYSTEM

1

A62339

HEAD

ASSY. - filter ( replaced A62239 ), Includes: Ref. 2

1шт.

2

221-1041

PLUG

- (1/8" P.T. sltd. hd.)

1шт.

3

A20663

SCREW,Fil Hd, #10 - 32 x 5/16"

- bleed (#10-32 x 5/16" sltd. rd. hd.)

2шт.

4

A66619

WASHER

- bleed screw (3/16 x 3/8 x 1/16" fiber)

2шт.

CASA41745

FUEL FILTER

ELEMENT KIT - filter replacement, Includes: Ref. 6 - 10

1шт.

6

NSS

NOT SOLD SEPARAT

FILTER ASSY. - 1st stage, Includes: Ref. 7 and 8

1шт.

7

G49080

PLUG

- filter drain (3/8" - 24, 12 pt. hd., plastic)

1шт.

8

A28090

O-RING,0.301" ID x 0.441" OD x 0.07"

-011, 70 Duro, .301" ID x .070" Thk - Plug

1шт.

9

NSS

NOT SOLD SEPARAT

FILTER ASSY. - 2nd stage, Includes: Ref. 10

1шт.

10

A42315

GASKET

-, Serial Range: filter-head

1шт.

11

A20662

GASKET

BOLT - filter mtg. (3/8 x 1-1/4" N.C. hex.)

2шт.

12

92-6

LOCK WASHER,3/8"

2шт.

16

A65564

HOSE,9.53mm ID x 390.65mm L, SAE 100R6

- filter to pump (16" long) (Replaced A58716)

1шт.

17

A20539

FITTING

UNION - hose (at pump)

1шт.

18

221-1011

DRAIN PLUG,Sq Hd, 1/8"-27 NPTF

PLUG - union (1/8" P.T., sq. hd.)

1шт.

20

222-45

ELBOW,90 Degree, 9/16"-24 Fem x 1/4"-27 NPTF

ASSY. - filter tube, Includes: Ref. 21 and 22

2шт.

21

222-103

SLEEVE,5/16" Tube

1шт.

22

222-113

TUBE NUT,9/16"-24

NUT - (for 5/16" tube)

1шт.

23

A62342

TUBE

- pump to 1st stage filter

1шт.

24

A64856

BRACKET

- tube support

1шт.

25

13-610

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5, Full Thd

Bracket to block Hex, 3/8"-16 x 5/8", G5, Full Thd

1шт.

26

92-6

LOCK WASHER,3/8"

1шт.

27

A62209

CLAMP,5/16", Insul, 1/4" Bolt

CLIP - tube to bracket

1шт.

28

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

Clip to bracket Hex, 1/4"-20 x 3/4", G5, Full Thd

1шт.

29

193-8

LOCK WASHER,Ext Tooth, 1/4"

WASHER - 1/4" int./ext. skpf.

1шт.

30

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

31

25-104

NUT,1/4"-20, G5

1шт.
