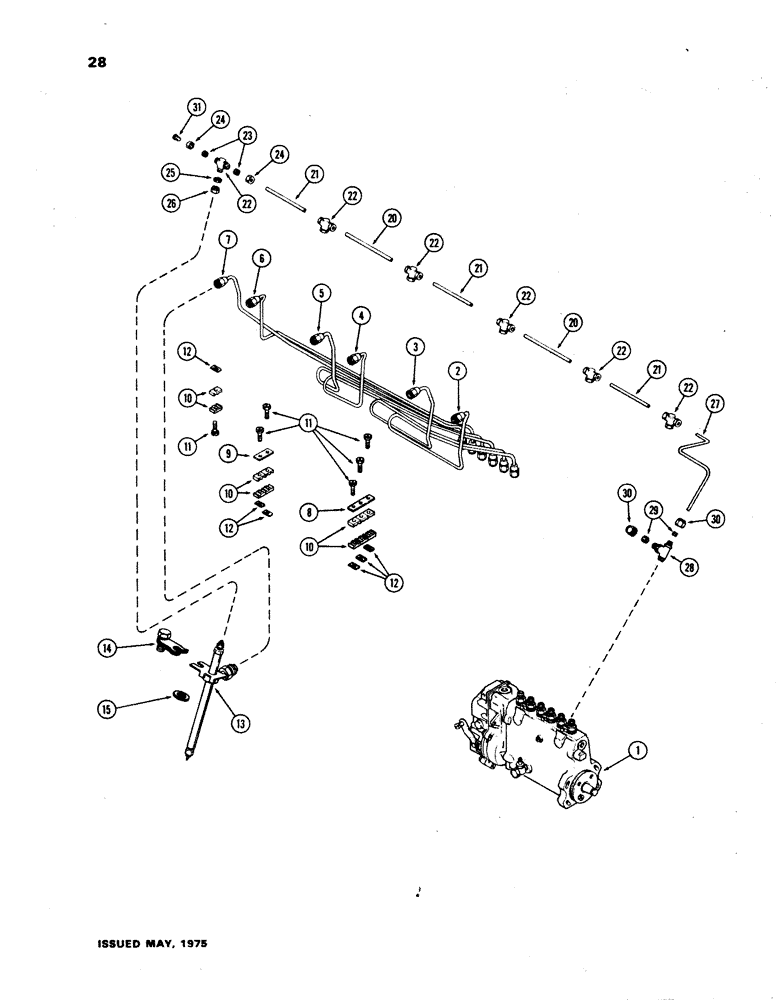

Запчасти Case W24B (028) - FUEL INJECTION SYSTEM, (504BD) DIESEL ENGINE (03) - FUEL SYSTEM

1

REF

INSTRUCTION

PUMP ASSY. - injecton (See Figures 33A & 33C)

1шт.

2

A58702

TUBE

- injection (No. 1 cylinder)

1шт.

3

A58703

TUBE

- injection (No. 2 cylinder)

1шт.

4

A58704

TUBE

- injection (No. 3 cylinder)

1шт.

5

A58705

TUBE

- injection (No. 4 cylinder)

1шт.

6

A58706

TUBE

- injection (No. 5 cylinder)

1шт.

7

A58707

TUBE

- injection (No. 6 cylinder)

1шт.

8

A58708

PLATE

- inj. tube brkt. (for 3 tubes)

1шт.

9

A58710

PLATE

- inj. tube brkt. (for 2 tubes)

1шт.

10

A58709

BRACKET

PLATE - inj. tube brkt. (for 1 tube)

14шт.

11

163-19

SCREW,Sl Hex Wshr Hd, #10 - 24 x 1"

- machine (#10 x 1" N.C. sltd. hex. hd.)

7шт.

12

131-612

SPRING NUT,Flat, #10 - 24, 0.022" Thk

NUT - plate screws (#10 Tinnerman)

7шт.

13

REF

INSTRUCTION

NOZZLE ASSY. - injectors (See Figure 33E)

6шт.

14

A58695

CLAMP

ASSY. - injector nozzles

6шт.

15

A58696

SPACER

- nozzle clamp

6шт.

20

A58964

TUBE

- leak-off (5-5/8" long)

2шт.

21

A58965

TUBE

- leak-off (4-5/8" long)

3шт.

22

A58960

TEE,1/2" - 25 NPT x 1/2" - 25 NPT x 9/16" - 24 NPT

TEE - leak-off lines junction

6шт.

23

222-102

SLEEVE,1/4" Tube

Leak-off tee 1/4" Tube

12шт.

24

87017024

TUBE NUT,1/2"-24

NUT - leak-off tee (for 1/4" tube)

12шт.

25

A58962

GROMMET,9.14mm ID x 12.82mm OD x 5.28mm Thk

- inj. nozzle (at leak-off tee)

6шт.

26

A58961

NUT

- inj. nozzle (at leak-off tee)

6шт.

27

A58963

TUBE

- leak-off (No. 1, Serial Range: nozzle-pump)

1шт.

28

A59097

VALVE

TEE ASSY. - check valve (in pump), Includes: Ref. 29 and 30

1шт.

29

222-102

SLEEVE,1/4" Tube

2шт.

30

87017024

TUBE NUT,1/2"-24

NUT - (for 1/4" tube)

2шт.

31

47-47

RIVET,FH, 1/4" x 7/16"

PLUG - leak-off tee

2шт.
