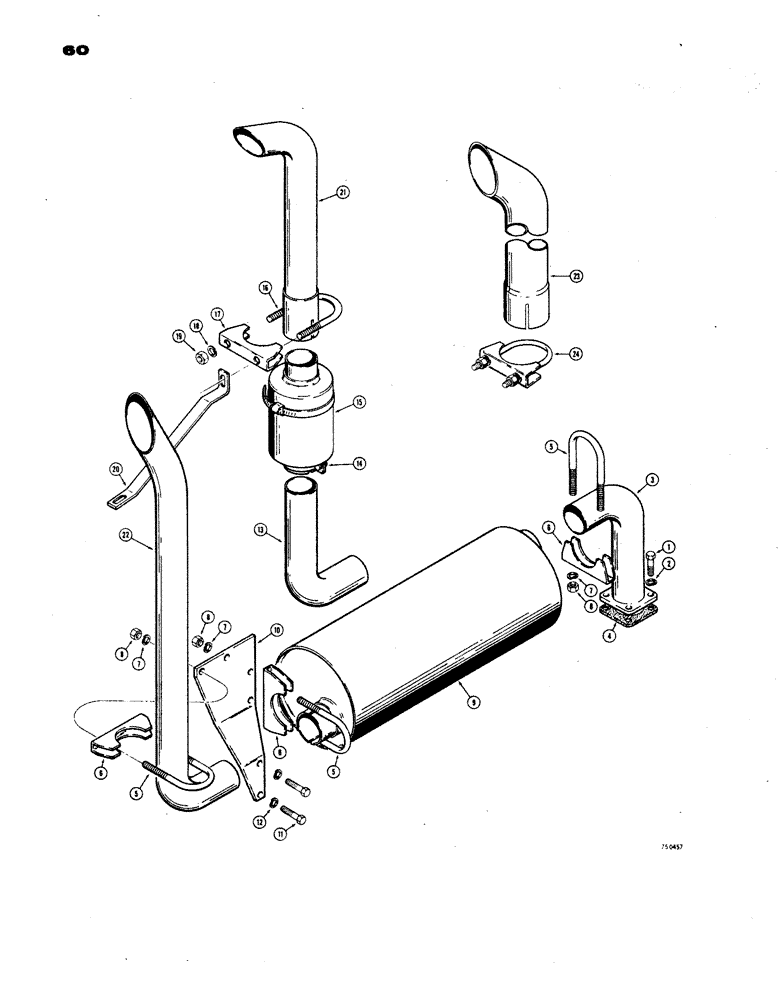

Запчасти Case W24B (060) - STANDARD AND SPARK ARRESTING MUFFLERS (02) - ENGINE

1

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

4шт.

2

92-6

LOCK WASHER,3/8"

4шт.

3

L14207

ADAPTER

- exhaust, Serial Range: manifold-muffler

1шт.

4

L14218

MANIFOLD GASKET

- adapter to exhaust manifold

1шт.

5

L19083

U-BOLT

"U" BOLT - muffler clamping

3шт.

6

L19084

SADDLE

- muffler clamping

3шт.

7

92-5

LOCK WASHER,5/16"

6шт.

8

9635082

NUT,5/16" - 18, Gr 5

- hex. (5/16" - 18 NC)

6шт.

9

L14219

MUFFLER

- engine exhaust

1шт.

10

L48021

SUPPORT

BRACKET - muffler mounting

1шт.

11

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

2шт.

12

92-6

LOCK WASHER,3/8"

2шт.

13

NLS

NO LONGER SERVICED

TUBE - standard muffler to spark arresting muffler

1шт.

L41692

ARRESTER

MUFFLER ASSEMBLY - spark arresting, Includes: Ref. 14 and 15

1шт.

14

NSS

NOT SOLD SEPARAT

CLAMP - muffler

1шт.

15

NSS

NOT SOLD SEPARAT

MUFFLER - spark arresting

1шт.

16

L19083

U-BOLT

"U"BOLT - muffler clamping

1шт.

17

L19084

SADDLE

- muffler clamping

1шт.

18

92-5

LOCK WASHER,5/16"

2шт.

19

9635082

NUT,5/16" - 18, Gr 5

- hex. (5/16" - 18 NC)

2шт.

20

L41696

BRACE - spark arresting muffler

1шт.

21

L18424

PIPE

STACK - engine exhaust (Used on models with spark arresting muffler)

1шт.

22

L17152

TUBE,2.975" OD

STACK - engine exhaust, 19" high (Standard on models without spark arresting muffler)

1шт.

22

L47988

PIPE, EXHAUST SYSTEM

STACK - engine exhaust (41" high) Optional on models without spark arresting muffler

1шт.

23

L40267

PIPE CLAMP

STACK - engine exhaust (Used on turbocharged models)

1шт.

24

A17851

CLAMP

- stack, includes hardware

1шт.
