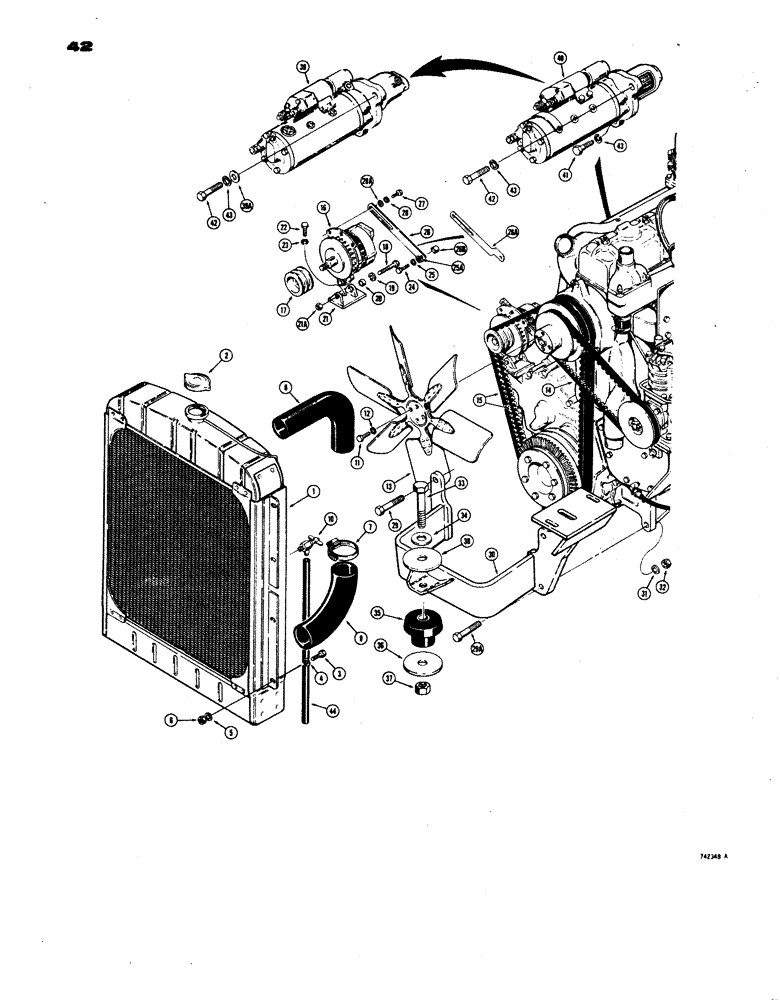

Запчасти Case W24B (042) - ENGINE, RADIATOR AND RELATED PARTS (02) - ENGINE

1

L15781

RADIATOR

- cooling, Includes: Ref. 2

1шт.

2

D25826

CAP

- radiator

1шт.

3

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

8шт.

4

195-26

WASHER

WASHER - plain (3/8")

8шт.

5

92-6

LOCK WASHER,3/8"

8шт.

6

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

8шт.

7

214-262

HOSE CLAMP,#44, 2.31" - 3.25", Type F Worm

CLAMP - radiator hose

4шт.

8

L15867

RADIATOR HOSE,2.50" ID x 10.50", SAE 20R4 Class SC

Upper 2.50" ID x 10.50", SAE 20R4 Class SC

1шт.

9

L15866

RADIATOR HOSE,2.62" ID x 6.80", SAE 20R4 Class SC or Class D-1

Lower 2.62" ID x 6.80", SAE 20R4 Class SC or Class D-1

1шт.

10

A23655

VALVE

- radiator drain

1шт.

11

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

Fan to fan pulley Hex, 3/8"-16 x 1", G5, Full Thd

4шт.

12

92-6

LOCK WASHER,3/8"

4шт.

13

A15520

FAN

- radiator cooling

1шт.

14

L50593

BELT,49.25" L

Compressor (Used with L14814 Air Compressor) 49.25" L

1шт.

14

L57802

V-BELT,12.70" W

- Compressor (Used with L57774 Air Compressor)

1шт.

15

T38546

SET OF BELTS,0.69" W x 65.75" L

V-Belt, Alternator drive 0.69" W x 65.75" L

1шт.

16

A41360

ALTERNATOR

- electrical, Motorola #MH24N-901 (Parts list Figure 35A) Models without instrument cluster

1шт.

16

L55767

ALTERNATOR

- electrical, Motorola #8HC3006F (Parts list Figure 34) Models with instrument cluster

1шт.

17

A41361

PULLEY

- alternator

1шт.

18

13-648

BOLT,Hex, 3/8" - 16 x 3", Gr 5

HHCS - 3/8" - 16 NC x 3"

1шт.

19

92-6

LOCK WASHER,3/8"

1шт.

20

L18857

SPACER

- A41360 alternator only

1шт.

21

A38492

BRACKET

- alternator

1шт.

21a

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

1шт.

22

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

23

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

24

13-660

BOLT,Hex, 3/8" - 16 x 3-3/4", Gr 5

HHCS - 3/8" - 16 NC x 3-3/4"

1шт.

25

92-6

LOCK WASHER,3/8"

1шт.

25a

95-6

WASHER,3/8"

- standard wrot () 3/8"

1шт.

26

A59098

STRAP

- A41360 alternator

1шт.

26a

A62429

STRAP

- L55767 alternator

1шт.

26b

A27328

SPACER

- strap

1шт.

27

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

1шт.

28

92-5

LOCK WASHER,5/16"

1шт.

28a

95-5

WASHER,3/8" x 7/8" x .083"

- standard wrot (5/16")

1шт.

29

13-1244

BOLT,Hex, 3/4" - 10 x 2-3/4", Gr 5

(Mounting bracket to engine, R.H. side) Hex, 3/4"-10 x 2 3/4", G5

2шт.

29a

13-1252

BOLT,Hex, 3/4" - 10 x 3-1/4", Gr 5

(Mounting bracket to engine, L.H. side) Hex, 3/4"-10 x 3 1/4", G5

2шт.

30

L48579

BRACKET

- engine mounting

1шт.

31

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

4шт.

32

25-1012

NUT,3/4"-10, G5

4шт.

33

13-1264

BOLT,Hex, 3/4" - 10 x 4", Gr 5

1шт.

34

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- plain (3/4")

1шт.

35

A19066

MOUNTING PARTS

MOUNT - rubber, engine

1шт.

36

A19068

WASHER

- special

1шт.

37

131-16

LOCK NUT,3/4"-10, GB

LOCKNUT, 3/4"-10, GB

1шт.

38

A61406

WASHER

- special

1шт.

39

R26137

STARTER MOTOR

STARTER - electrical (Parts list Figures 36 and 37A) Models with instrument cluster

1шт.

39a

R24323

WASHER

- special (Used with R26137 Starter)

3шт.

40

D42964

X

STARTER - electrical (Parts list Figures 38 and 39A) Models without instrument cluster

1шт.

41

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

2шт.

42

13-852

BOLT,Hex, 1/2" - 13 x 3-1/4", Gr 5

1шт.

43

92-8

LOCK WASHER,1/2"

3шт.

44

L13809

RADIATOR HOSE,6.40 mm ID x 609.60, SAE 30R2 Type I

- Radiator drain 6.40 mm ID x 609.60, SAE 30R2 Type I

1шт.
