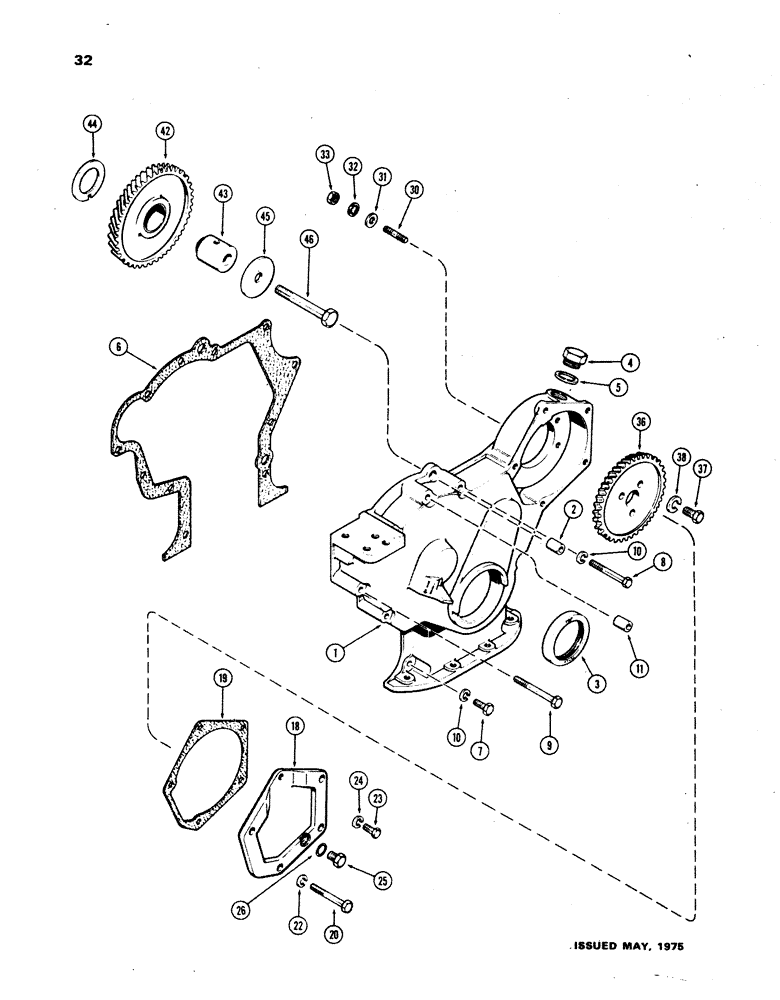

Запчасти Case W24B (032) - TIMING GEAR COVER, (504BD) DIESEL ENGINE (02) - ENGINE

1

A58609

COVER

ASSY. - timing gears, Includes: Ref. 2

1шт.

2

A58611

PIN

- cover locating (3/8 x 5/8 x 1")

2шт.

3

A62049

OIL SEAL

- oil, crankshaft, front (2-5/8 x 3-5/8 x 7/16")

1шт.

4

A21140

PLUG

- timing hole

1шт.

5

A58613

SEALING WASHER

GASKET - timing hole plug

1шт.

6

A58612

GASKET

- timing, Serial Range: cover-block

1шт.

7

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

4шт.

8

13-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

- (3/8 x 2-1/2" N.C. hex.)

2шт.

9

13-652

BOLT,Hex, 3/8" - 16 x 3-1/4", Gr 5

- (3/8 x 3-1/4" N.C. hex.)

2шт.

9

13-656

BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 5

- (3/8 x 3-1/2" N.C. hex.)

1шт.

10

92-6

LOCK WASHER,3/8"

9шт.

11

A19774

BUSHING

SPACER - alternator pry point (3/8" pipe x 1")

1шт.

18

A62832

COVER

- inj. pump gears

1шт.

19

A58615

GASKET

- cover

1шт.

20

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

2шт.

20

13-656

BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 5

- (3/8 x 3-1/2" N.C. hex.)

2шт.

22

92-6

LOCK WASHER,3/8"

4шт.

23

13-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

1шт.

24

92-5

LOCK WASHER,5/16"

1шт.

25

9672438

PLUG,7/16" - 20 ORB

Assy, Incl. Ref. 26 Hex Hd, 7/16"-20 ORB

1шт.

26

218-5003

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

"O" RING - plug (3/8 x 1/2 x 1/16")

1шт.

30

A58689

STUD

- pump mtg. (3/8" N.C. x 1-7/8"), injection drive

4шт.

31

A57470

WASHER

- mtg. stud (13/32 x 11/16 x 16 ga.), injection pump drive

4шт.

32

193-30

LOCK WASHER,Int Tooth, 3/8"

WASHER, LOCK, , Mounting stud, injection pump drive Int Tooth, 3/8"

4шт.

33

25-106

NUT,3/8"-16, G5

- mtg. stud (3/8" N.C. hex.), injection pump drive

4шт.

36

A58693

GEAR

- drive, inj. pump, injection drive

1шт.

37

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

Gear to hub, injection pump drive Hex, 3/8"-16 x 1", G5, Full Thd

3шт.

38

92-6

LOCK WASHER,3/8"

injection pump drive 3/8"

3шт.

42

A62542

GEAR

ASSY. - idler (w/bushing), injection pump drive

1шт.

43

A58690

SHAFT

- idler gear, injection pump drive

1шт.

44

A58691

WASHER

- thrust, idler gear, injection pump drive

1шт.

45

A58692

PLATE

- thrust, idler shaft, injection pump drive

1шт.

46

13-868

BOLT,Hex, 1/2" - 13 x 4-1/4", Gr 5

- idler shaft (1/2 x 4-1/2" N.C. hex.), injection pump drive

1шт.
