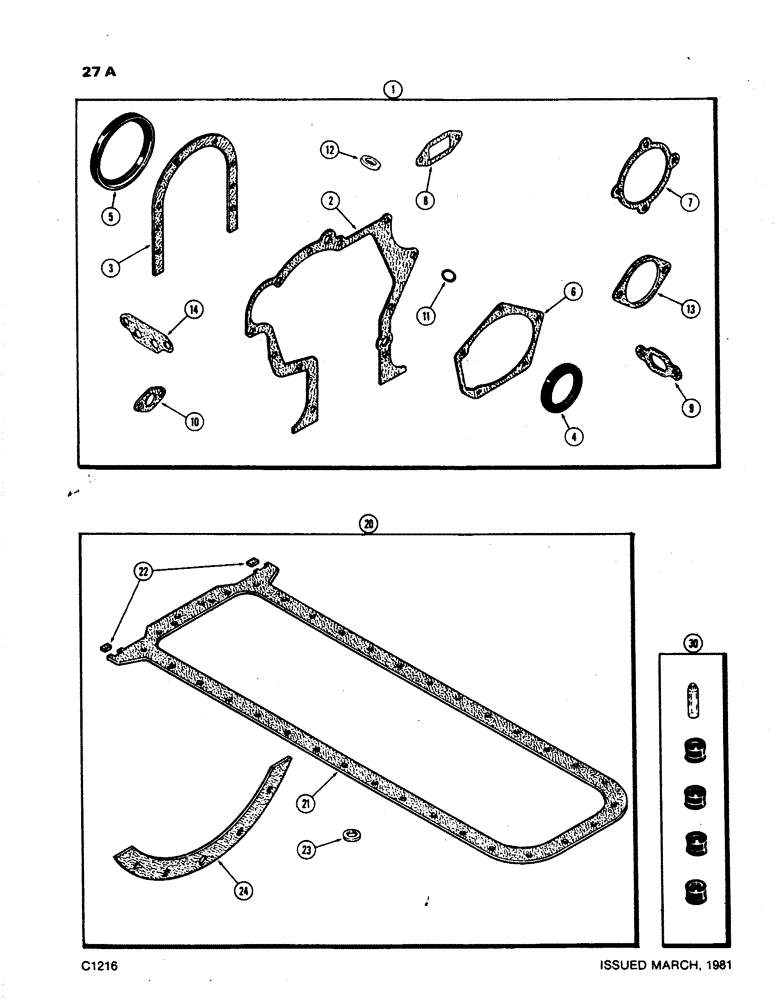

Запчасти Case W24B (027A) - ENGINE GASKET KITS, 504BD DIESEL ENGINE, CYLINDER BLOCK KIT (02) - ENGINE

1

A44075

GASKET KIT

- cylinder block, Includes: Ref. 2 - 14

1шт.

For complete engine overhaul with 5.189" to 5.194" fire dam diameter sleeves order A151404, A44075 and A152479.

1шт.

2

A58612

GASKET

- timing gear cover

1шт.

3

A32830

GASKET

- rear seal retainer

1шт.

4

A62049

OIL SEAL

- oil, crankshaft front

1шт.

5

A62050

OIL SEAL

- oil, crankshaft rear

1шт.

6

A58615

GASKET

- fuel pump cover

1шт.

7

A58646

GASKET

- water pump

1шт.

8

A58649

GASKET

- water pump body

1шт.

9

A58670

GASKET

- oil cooler, Serial Range: tube-block

1шт.

10

A58680

OIL PAN GASKET SET

- oil cooler tube to water pump

1шт.

11

A64434

O-RING,0.93" ID x 1.142" x 0.106"

- oil filter base

3шт.

12

A58613

SEALING WASHER

GASKET - timing gear cover plug

1шт.

13

A58617

GASKET

- auxiliary drive cover

1шт.

14

A58756

OIL PAN GASKET SET

- oil filter boss

1шт.

20

A152479

GASKET KIT

- oil pan, Includes: Ref. 21 - 24

1шт.

For complete engine overhaul with 5.092" to 5.097" fire dam diameter sleeves order A151406, A44075 and A152479.

1шт.

21

NSS

NOT SOLD SEPARAT

GASKET - pan to block, oil kit

1шт.

22

A62402

GASKET

- corner, pan to housing, oil kit

2шт.

23

A58608

GASKET

- drain plug (nylon), oil pan kit

1шт.

23

A27968

RING

- drain plug (copper), oil pan kit

1шт.

24

A57966

GASKET

- pan to transmission (Not used this unit), oil kit

1шт.

30

M20614

SEAL KIT

SEAL KIT - valve (Includes four seals and installation sleeve), oil pan kit

1шт.
