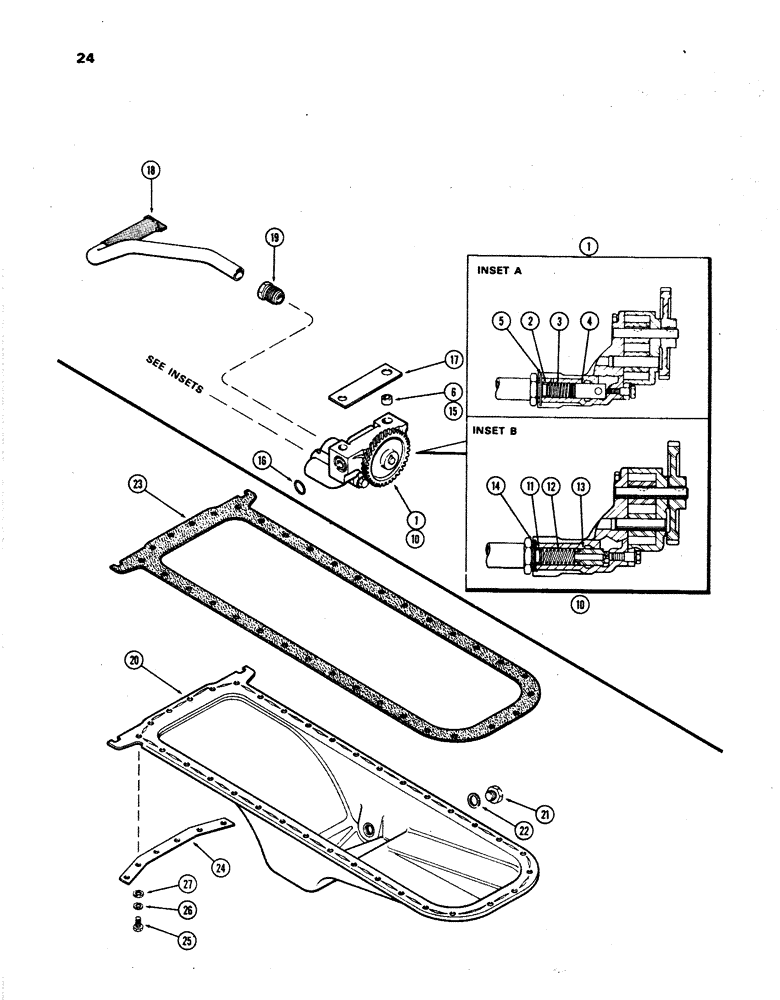

Запчасти Case W24B (024) - OIL PUMP, (504BD) DIESEL ENGINE (02) - ENGINE

1

A65080

PUMP

ASSY. - oil (Replaces A61809) (See Inset A), Includes: Ref. 2 - 6

1шт.

2

41-1011

PLUG,Cup, 11/16"

- relief valve (11/16" cup type)

1шт.

3

A59111

SPRING

- relief valve (2-1/16" free length)

1шт.

4

A65083

VALVE

- oil pressure regulation

1шт.

5

132-32

COTTER PIN,3/32" x 1 1/2"

Pin, Split (Cotter), 3/32" x 1 1/2"

1шт.

6

A58915

SLEEVE

- pump locating

1шт.

10

A61809

PUMP

ASSY. oil (Order A65080) (See Inset B), Includes: Ref. 11 - 15

1шт.

11

41-1011

PLUG,Cup, 11/16"

- relief valve (11/16" cup type)

1шт.

12

A59111

SPRING

- relief valve (2-1/16" free length)

1шт.

13

A34992

PISTON

VALVE - relief

1шт.

14

132-32

COTTER PIN,3/32" x 1 1/2"

Pin, Split (Cotter), 3/32" x 1 1/2"

1шт.

15

A58915

SLEEVE

- pump locating

1шт.

16

A64434

O-RING,0.93" ID x 1.142" x 0.106"

"O" RING - pump to block (15/16 x 1-1/8 x 3/32")

1шт.

17

A58859

SHIM,.005" Thk

Pump to brg. cap .005" Thk

1шт.

18

A62805

TUBE

SCREEN - oil suction tube

1шт.

19

222-510

TUBE NUT,1 1/4"-18

NUT - suction tube to pump

1шт.

20

A62035

PAN

- oil (Order A62410)

1шт.

21

A34826

PLUG,7/8" - 18 ORB

- drain, oil pan

1шт.

22

A27968

RING

- drain plug (7/8 x 1-1/8 x 1/16" copper), oil pan

1шт.

23

NSS

NOT SOLD SEPARAT

GASKET - oil pan (Order from Figure 27)

1шт.

24

A58932

STRAP

- pan reinforcing, oil

1шт.

25

13-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

Pan to block, Oil Hex, 3/8"-16 x 7/8", G5, Full Thd

34шт.

26

92-6

LOCK WASHER,3/8"

oil pan 3/8"

34шт.

27

195-25

WASHER,3/8"

- (13/32 x 13/16 x 1/16"), oil pan

34шт.
