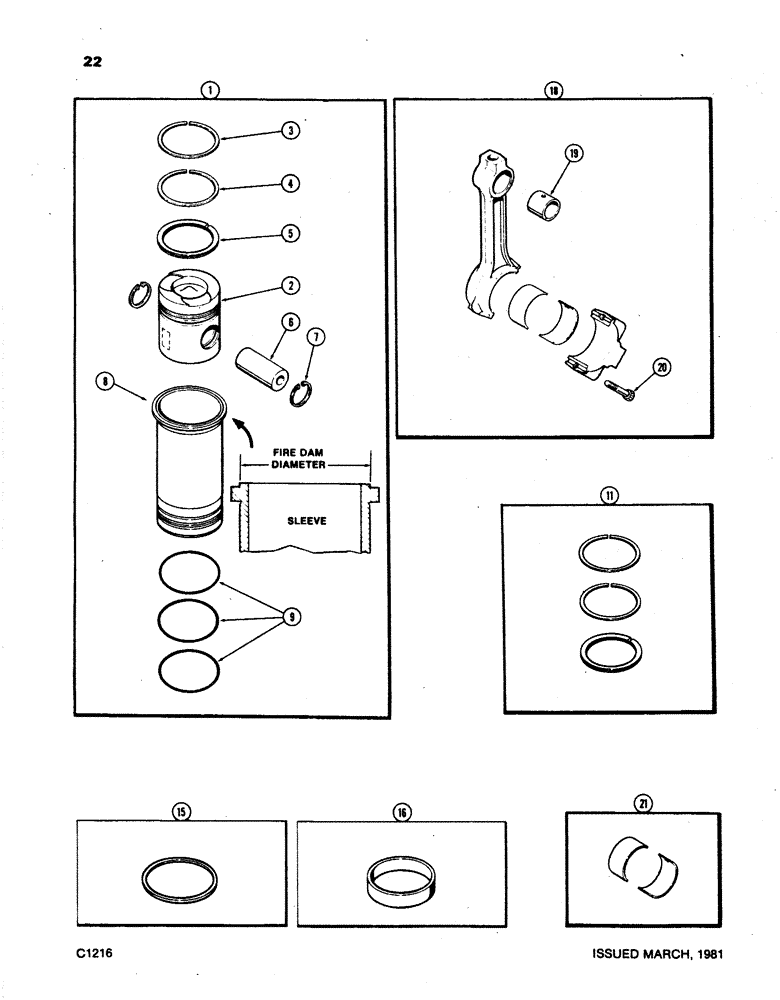

Запчасти Case W24B (022) - PISTONS & SLEEVES,W/5.189" -5.194"FIRE DAM DIA. SLEEVE USE W/ENG SN2572011&AFTER 504BD DIESEL ENG., (02) - ENGINE

1

A156931

KIT

PISTON AND SLEEVE ASSEMBLY - engine (Set of 2), Includes: Ref. 2 - 9

3шт.

2

A65531

FRAME

PISTON - cylinder 4-5/8" bore (107.47 mm)

2шт.

3

NSS

NOT SOLD SEPARAT

RING - compression, top groove (Order Ref. 11)

2шт.

4

NSS

NOT SOLD SEPARAT

RING - compression, second groove (Order Ref. 11)

2шт.

5

NSS

NOT SOLD SEPARAT

RING - oil control, third groove (Order Ref. 11)

2шт.

6

A140607

PISTON PIN,41.27mm OD x 93.34mm L

PIN - piston

2шт.

7

D27833

SNAP RING,1.625", Int, #162

Ring, Snap, 1.625", Int, #162

4шт.

8

A153638

SLEEVE CYLINDER

SLEEVE - piston, three groove

2шт.

NSS

NOT SOLD SEPARAT

SLEEVE - piston (2 Groove) Order 3 Groove Sleeve A153638

2шт.

9

A144667

O-RING,4.734" ID x 5.012" OD x 0.0139"

O-RING - sleeve

6шт.

11

A44060

RING

RING KIT - piston re-ring (Set of 1)

6шт.

15

A148553

SHIM

SHIM - sleeve, 0.010" (0.254 mm) (Repairs Only)

1шт.

15

A148554

SHIM

SHIM - sleeve, 0.005" (0.127 mm) (Repairs Only)

1шт.

16

A150327

BUSHING,129.06mm ID x 133.49mm OD x 30.15mm L

BUSHING - sleeve (Repairs Only)

1шт.

A150328

ADHESIVE

LOCTITE - tube (Not shown)

1шт.

18

A62954

ROD, CONNECTING

ROD ASSEMBLY - connecting, Includes: Ref. 19 and 20

6шт.

AR62954

REMAN-CONNECTING ROD

Remanufactured, CONNECTING ROD, N.A. Only

6шт.

AC62954

CORE-ROD CONNECTING

CORE-CONNECTING ROD Return Number, N.A. Only

6шт.

19

A61241

BUSHING,40.75mm ID x 44.56mm OD x 34.54mm L

BUSHING - piston pin, connecting rods

1шт.

20

A65757

FLANGE BOLT,1/2" - 20 x 2.31"

BOLT - connecting rod cap

2шт.

21

A43173

BEARING LINER

INSERT - connecting rod bearing (Standard) (Set of 2)

6шт.

21

A43174

BEARING LINER

INSERT - connecting rod bearing, 0.002" (0.051 mm) undersize (Set of 2)

6шт.

21

A43175

BEARING LINER,70.25mm ID x 74.32mm OD x 40.54mm W

INSERT - connecting rod bearing, 0.010" (0.254 mm) undersize (Set of 2)

6шт.

21

A43176

BEARING LINER,70mm ID x 74.32mm OD x 40.54mm W

INSERT - connecting rod bearing, 0.020" (0.508 mm) undersize (Set of 2)

6шт.

21

A43177

BEARING LINER

INSERT - connecting rod bearing, 0.030" (0.762 mm) undersize (Set of 2)

6шт.
