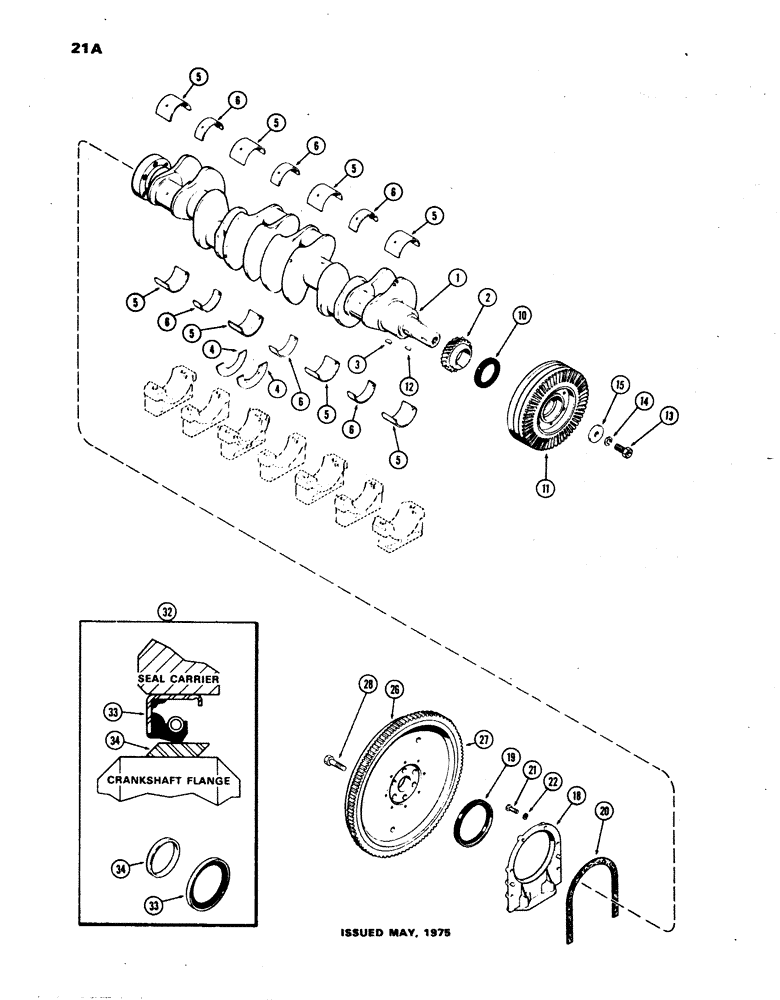

Запчасти Case W24B (021A) - CRANKSHAFT AND FLYWHEEL, (504BD) DIESEL ENGINE, LARGE CRANKSHAFT USED PRIOR TO ENG SN. 2572011 (02) - ENGINE

1

A66728

CRANKSHAFT

ASSY. - (Replaces A65097), Includes: Ref. 2 and 3

1шт.

2

A66404

GEAR

- crankshaft timing (Replaces A58573)

1шт.

3

126-129

WOODRUFF KEY,#C, 5/16" x 1 1/8", HT

Timing gear #C, 5/16" x 1 1/8", HT

1шт.

4

A58565

WASHER

- thrust (standard) (0.156")

2шт.

4

A42447

WASHER

- thrust (oversize) (0.162")

2шт.

5

A43090

BEARING LINER

LINER SET - main bearing, wide (standard) (Replaces A41752) (Set of 2)

4шт.

5

A43124

LINING

LINER SET - main bearing, wide (-.002") (Replaces A41907) (Set of 2)

4шт.

5

A43125

CRANKSHAFT BEARING

LINER SET - main bearing, wide (-.010") (Replaces A41908) (Set of 2)

4шт.

5

A43126

LINING

LINER SET - main bearing, wide (-.020") (Replaces A41909) (Set of 2)

4шт.

5

A43127

LINING

LINER SET - main bearing, wide (-.030") (Replaces A41910) (Set of 2)

4шт.

6

A43089

BEARING LINER

LINER SET - main bearings, narrow (standard) (Replaces A41759) (Set of 2)

3шт.

6

A43120

LINING

LINER SET - main bearing, narrow (-.002") (Replaces A41903) (Set of 2)

3шт.

6

A43121

SET OF CONN ROD BRGS STD

LINER SET - main bearing, narrow (-.010") (Replaces A41904) (Set of 2)

3шт.

6

A43122

LINING

LINER SET - main bearing, narrow (-.020") (Replaces A41905) (Set of 2) (Replaces A41906) (Set of 2)

3шт.

6

A43123

SET OF CONN ROD BRGS STD

LINER SET - main bearing, narrow (-.030")

1шт.

10

A62049

OIL SEAL

- oil, front (2-5/8 x 3-5/8 x 1/2")

1шт.

11

A58828

PULLEY

- fan drive

1шт.

12

126-129

WOODRUFF KEY,#C, 5/16" x 1 1/8", HT

Pulley #C, 5/16" x 1 1/8", HT

1шт.

13

88112

BOLT,Hex, 5/8" - 18 x 1 1/2", Gr 5

- pulley (5/8" N.F. x 1-1/2")

1шт.

14

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

15

A27903

WASHER

- pulley (21/32 x 2-1/8 x 1/4")

1шт.

18

A57457

RETAINER

- rear oil seal

1шт.

19

A62050

OIL SEAL

- oil, rear (4-3/4 x 5-3/4 x 1/2") (See Ref. 32)

1шт.

20

A32830

GASKET

- rear oil seal retainer

1шт.

21

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

Retainer Hex, 3/8"-16 x 1 1/4", G5, Full Thd

6шт.

22

92-6

LOCK WASHER,3/8"

6шт.

26

A58683

FLYWHEEL

ASSY., Includes: Ref. 27

1шт.

27

A27920

GEAR

- starter ring

1шт.

28

25331R1

BOLT,Hex, 5/8" - 18 x 1 1/2", Gr 8

- flywheel to crankshaft (5/8" N.F. x 1-1/2")

6шт.

32

A43194

KIT

WEAR SEAL KIT - oil, crankshaft, rear, Includes: Ref. 33 and 34

1шт.

33

NSS

NOT SOLD SEPARAT

SEAL - oil, rear (4-7/8 x 5-3/4 x 1/2"), wear kit

1шт.

34

NSS

NOT SOLD SEPARAT

SLEEVE - wear (4-3/4 x 4-7/8 x 9/16"), seal kit

1шт.
