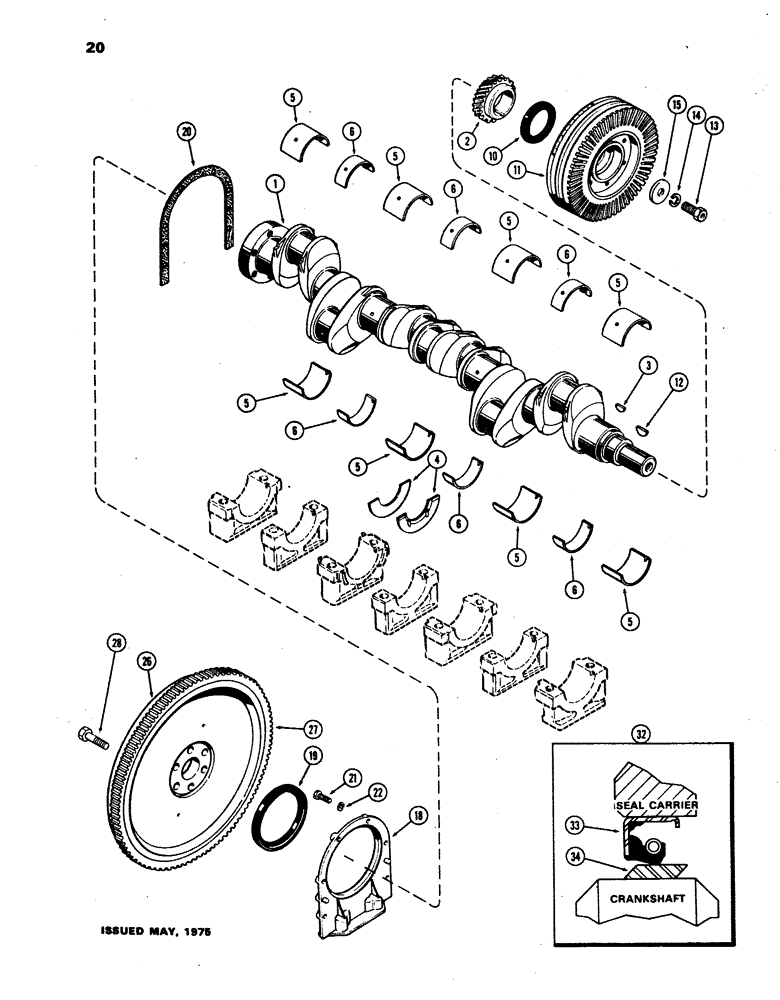

Запчасти Case W24B (020) - CRANKSHAFT AND FLYWHEEL, (504BD) DIESEL ENGINE, SMALL CRANKSHAFT 1ST USED ENG SN. 2572011 (02) - ENGINE

1

A136106

CRANKSHAFT

ASSY, Includes: Ref. 2 and 3

1шт.

2

A66404

GEAR

- crankshaft timing

1шт.

3

126-129

WOODRUFF KEY,#C, 5/16" x 1 1/8", HT

Timing gear #C, 5/16" x 1 1/8", HT

1шт.

4

A62573

THRUST WASHER,88.06mm ID x 114.3mm OD x 4.7mm Thk

WASHER - thrust (standard) (0.156")

2шт.

PART MEASURES ABOUT O.185

1шт.

4

A42932

BEARING WASHER,87.81mm ID x 114.55mm OD x 4.88mm Thk

WASHER - thrust (oversize) (0.162")

2шт.

PART MEASURES ABOUT 0.191

1шт.

5

A43163

BEARING LINER

LINER SET - main brg. wide (standard) (set of 2)

4шт.

5

A43164

BEARING LINER

LINER SET - main brg., wide (-.002") (set of 2)

4шт.

5

A43165

BEARING LINER

LINER SET - main brg., wide (-.010") (set of 2)

4шт.

5

A43166

BEARING LINER

LINER SET - main brg., wide (-.020") (set of 2)

4шт.

5

A43167

BEARING LINER

LINER SET - main brg., wide (-.030") (set of 2)

4шт.

6

A43158

BEARING LINER

LINER SET - main brg., narrow (standard) (set of 2)

3шт.

6

A43159

BEARING LINER

LINER SET - main brg., narrow (-.002") (set of 2)

3шт.

6

A43160

BEARING LINER

LINER SET - main brg., narrow (-.010") (set of 2)

3шт.

6

A43161

BEARING SET

LINER SET - main brg., narrow (-.020") (set of 2)

3шт.

6

A43162

BEARING LINER

LINER SET - main brg., narrow (-.030") (set of 2)

3шт.

10

A62049

OIL SEAL

- oil, front (2-5/8 x 3-5/8 x 1/2")

1шт.

11

A65125

PULLEY

- fan drive

1шт.

12

126-129

WOODRUFF KEY,#C, 5/16" x 1 1/8", HT

Pulley #C, 5/16" x 1 1/8", HT

1шт.

13

88112

BOLT,Hex, 5/8" - 18 x 1 1/2", Gr 5

- pulley (5/8" N.F. x 1-1/2")

1шт.

14

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

15

A27903

WASHER

- pulley (5/8 x 2-1/8 x 1/4")

1шт.

18

A57457

RETAINER

- rear oil seal

1шт.

19

A62050

OIL SEAL

- oil, rear (4-3/4 x 5-3/4 x 1/2") (See Ref. 32)

1шт.

20

A32830

GASKET

- rear oil seal retiner

1шт.

21

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

Retainer Hex, 3/8"-16 x 1 1/4", G5, Full Thd

6шт.

22

92-6

LOCK WASHER,3/8"

6шт.

26

A65049

FLYWHEEL

ASSY, Includes: Ref. 27

1шт.

27

A27920

GEAR

- starter ring

1шт.

28

28-1024

BOLT,Hex, 5/8" - 18 x 1-1/2", Gr 8

- flywheel (5/8" N.F. x 1-1/2")

6шт.

32

A43194

KIT

WEAR SEAL KIT - oil, crankshaft, rear, Includes: Ref. 33 and 34

1шт.

33

NSS

NOT SOLD SEPARAT

SEAL - oil, rear (4-7/8 x 5-3/4 x 1/2"), wear kit

1шт.

34

NSS

NOT SOLD SEPARAT

SLEEVE - wear (4-3/4 x 4-7/8 x 9/16"), seal kit

1шт.
