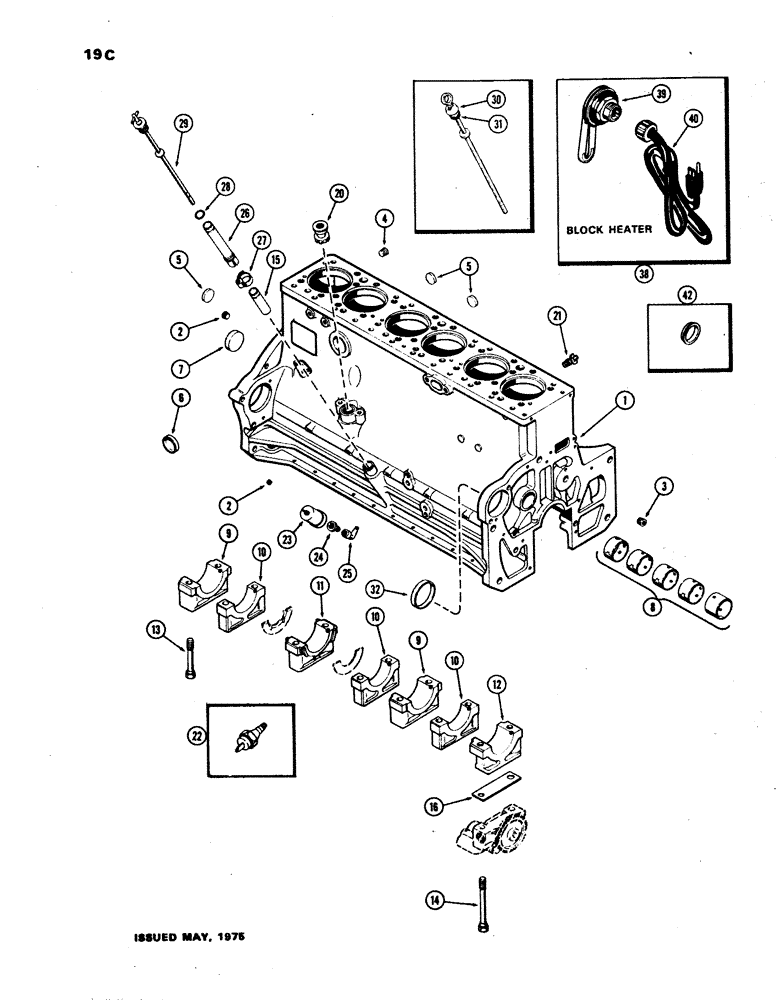

Запчасти Case W24B (019C) - CYL BLOCK, (504BD) DIESEL ENG,THIN DECK BLOCK & LARGE CRANKSHAFT USED PRIOR TO ENG. SN. 2572011, (02) - ENGINE

A43144

SKELETON ENGINE

BLOCK ASSY. - cylinder, short (Replaced A42763) (Incl. stripped block, camshaft, crankshaft & brgs., connecting rods & brgs., piston assy. & timing gears), Includes: Ref. 1 - 16

1шт.

1

A41765

SKELETON ENGINE

BLOCK ASSY. - stripped (Casting No. A58515), Includes: Ref. 2 - 16

1шт.

2

221-41

PLUG

- oil gallery (1/8" P.T., sltd., headless)

6шт.

3

221-1843

PLUG

- oil gallery (3/8" P.T., hex. sckt. hd.)

3шт.

4

221-845

PLUG,Hex Soc, 3/4"-14

- (3/4" P.T. hex. sckt. hd.)

1шт.

5

A58568

PLUG,Cup, 1 3/8", Stainless

- (1-3/8" cup type)

3шт.

6

A58569

PLUG,Cup, 2", Stainless

- heater hole (2" cup type)

1шт.

7

A24361

PLUG

- camshaft hole (2-3/8" cup type)

1шт.

8

A23544

BUSHING

SET - camshaft

1шт.

9

A58562

CAP

- main bearing, wide (rear & intermediate)

2шт.

10

A58563

CAP

- main bearing, narrow (intermediate)

3шт.

11

A58564

CAP

- main bearing, wide (thrust)

1шт.

12

A58561

CAP

- main bearing, wide (front)

1шт.

13

A58566

STEP BOLT

BOLT - bearing caps (5/8" N.C. x 4-1/2")

12шт.

14

A58567

STEP BOLT

BOLT - front brg. cap (5/8" N.C. x 6-13/16")

2шт.

15

A34540

TUBE

- oil filler & dipstick

1шт.

16

A58859

SHIM,.005" Thk

Oil pump to brg. cap .005" Thk

1шт.

20

A34266

DRIVE

ASSY. - tachometer

1шт.

21

A23656

COCK, DRAIN

DRAIN - cylinder block water

1шт.

22

A66737

SWITCH, PRESSURE

UNIT - sending, engine oil pressure (1st used eng. ser. no. 2546822)

1шт.

23

A35031

SENDER UNIT

UNIT - sending, engine oil pressure (Used prior to eng. ser. no. 2546822)

1шт.

24

221-411

ELBOW,90 Degree, 1/8"-27, NPT

Street (used w/A35031 unit) 90º, 1/8"-27, NPT

1шт.

25

221-52

BUSHING,Hex, 3/8" x 1/8" NPT

- reducing (3/8" P.T. to 1/8" P.T.) (used w/A35031 sending unit)

1шт.

26

A65778

TUBE

- extension, dipstick & oil filler (Replaced A57940)

1шт.

27

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - tube (1-3/16" to 1-3/4")

1шт.

28

A27342

O-RING,1.109" ID x 1.387" OD x 0.139"

"O" RING - tube (1-1/8 x 1-3/8 x 1/8")

1шт.

29

A22589

ELECTRICAL GAUGE

DIPSTICK ASSY. - oil level (1st used eng. ser. no. 2513631)

1шт.

30

A61841

DIPSTICK

ASSY. - oil level (Order A22589) (Used prior to eng. ser. no. 2513631), Includes: Ref. 31

1шт.

31

A42597

O-RING,0.734" ID x 1.012" OD x 0.139"

"O" RING - dipstick (3/4 x 1 x 1/8")

2шт.

32

41-1052

PLUG,Cup, 3 1/4"

- auxiliary pump opening (3-1/4" cup type)

1шт.

38

A44812

HEATER

ASSY. - (Replaces A42279), block, Includes: Ref. 39 and 40

1шт.

39

A7156

O-RING,0.139" Thk x 1.734" ID, -224, Cl 6, 90 Duro

"O" RING - heater element (1-3/4 x 2 x 1/8"), block

1шт.

40

A44813

CABLE EXTENSION

CORD ASSY. - (12" long) (Replaces A42297), block heater

1шт.

A44006

SLEEVE

KIT - cylinder block heater, Includes: Ref. 42

1шт.

42

NSS

NOT SOLD SEPARAT

SLEEVE - heater hole (for 2-1/16" dia. hole), block

1шт.

42

NSS

NOT SOLD SEPARAT

SLEEVE - heater hole (for 2-1/8" dia. hole), block

1шт.
