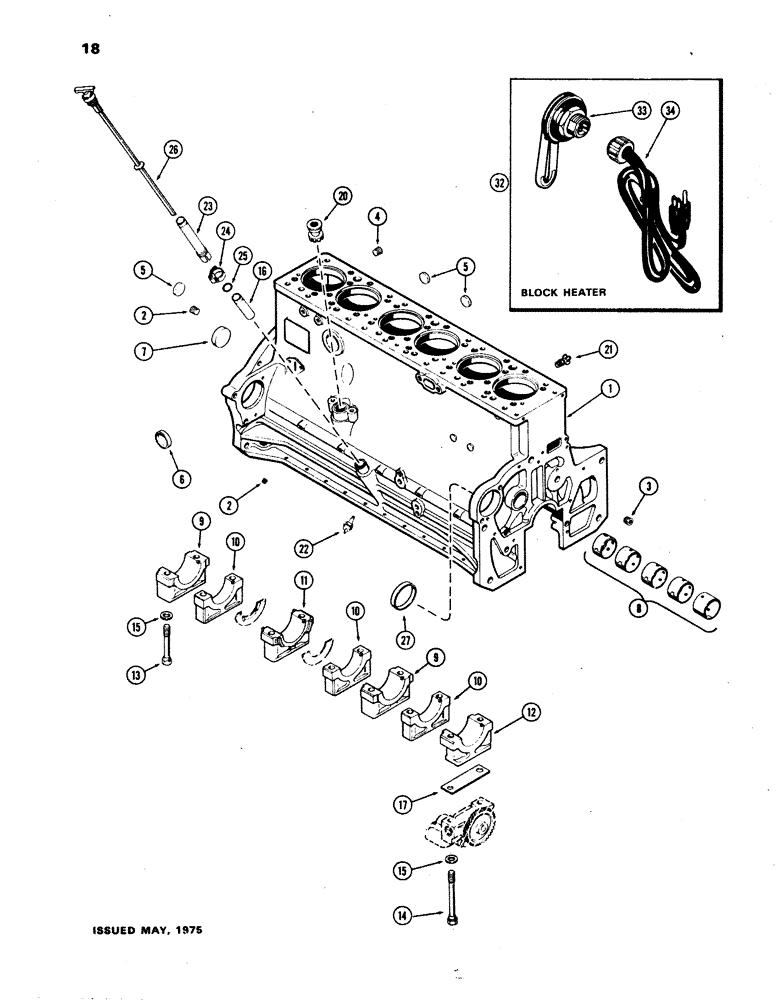

Запчасти Case W24B (018) - CYLINDER BLOCK, (504BD) DIESEL ENGINE,THICK DECK BLOCK AND SMALL CRANKSHAFT 1ST USED ENG. SN.2572011 (02) - ENGINE

A46001

MOTOR, ELECTRIC

BLOCK ASSY. - short (incl. stripped block, camshaft, crankshaft & brgs., piston assy. connecting rods & brgs. & timing gears), Includes: Ref. 1 - 17

1шт.

1

A46002

CRANKCASE

BLOCK ASSY. - stripped (casting No. A66526), Includes: Ref. 2 - 17

1шт.

1

AR77835

REMAN-BASIC ENGINE

Remanufactured, Engine Basic - replacement for engine and block casting number of A66526

1шт.

1

AC77835

CORE-BASIC ENGINE

Return Number, Engine Basic - replacement for engine and block casting number of A66526

1шт.

2

221-41

PLUG

PLUG - oil gallery (1/8" P.T., sltd., headless)

5шт.

3

221-1843

PLUG

PLUG - oil gallery (3/8" P.T., hex. sckt. hd.)

1шт.

4

221-845

PLUG,Hex Soc, 3/4"-14

PLUG - (3/4" P.T. hex. sckt. hd.)

1шт.

5

A58568

PLUG,Cup, 1 3/8", Stainless

PLUG - (1-3/8" cup type)

3шт.

6

A58569

PLUG,Cup, 2", Stainless

PLUG - heater hole (2" cup type)

1шт.

7

A24361

PLUG

PLUG - camshaft hole (2-3/8" cup type)

1шт.

8

A23544

BUSHING

BUSHING SET - camshaft

1шт.

9

A58783

BEARING CAP

CAP - main bearing, wide (rear & intermediate)

2шт.

10

A58784

BEARING CAP

CAP - main bearing, narrow (intermediate)

3шт.

11

A58785

BEARING CAP

CAP - main bearing, wide (thrust)

1шт.

12

A58782

CAP

CAP - main bearing, wide (front)

1шт.

13

A66948

STEP BOLT

BOLT - brg. cap, (5/8" N.C. x 5")

12шт.

14

A66949

STEP BOLT

BOLT - front brg. cap (5/8" N.C. x 7-1/4")

2шт.

15

A58629

BEARING WASHER,16.66mm ID x 25.4mm OD x 3.04mm Thk

WASHER - brg. cap bolts (5/8 x 1 x 1/8")

14шт.

16

A34540

TUBE

TUBE - oil filler & dipstick

1шт.

17

A58859

SHIM,.005" Thk

SHIM, , Oil pump .005" Thk

1шт.

20

A34266

DRIVE

DRIVE ASSY. - tachometer

1шт.

21

A23656

COCK, DRAIN

DRAIN - cylinder block water

1шт.

22

A66737

SWITCH, PRESSURE

PRESSURE SWITCH UNIT - sending, engine oil pressure

1шт.

23

A65778

TUBE

TUBE - extension, dipstick & oil filler

1шт.

24

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - tube (1-3/16" to 1-3/4")

1шт.

25

A27342

O-RING,1.109" ID x 1.387" OD x 0.139"

"O" RING - tube (1-1/8" x 1-3/8 x 1/8")

1шт.

26

A67028

DIPSTICK

DIPSTICK ASSY. - oil level

1шт.

27

41-1052

PLUG,Cup, 3 1/4"

PLUG - auxiliary pump opening (3-1/4" cup type)

1шт.

32

A44812

HEATER

HEATER ASSY, block, Includes: Ref. 33 and 34

1шт.

33

A7156

O-RING,0.139" Thk x 1.734" ID, -224, Cl 6, 90 Duro

"O" RING - heater element (1-3/4 x 2 x 1/8"), block

1шт.

34

A44813

CABLE EXTENSION

CORD ASSY. - 12" long, block heater

1шт.
