Запчасти Case W24B (014) - CYLINDER HEAD AND COVER, 504BD DIESEL ENGINE (02) - ENGINE

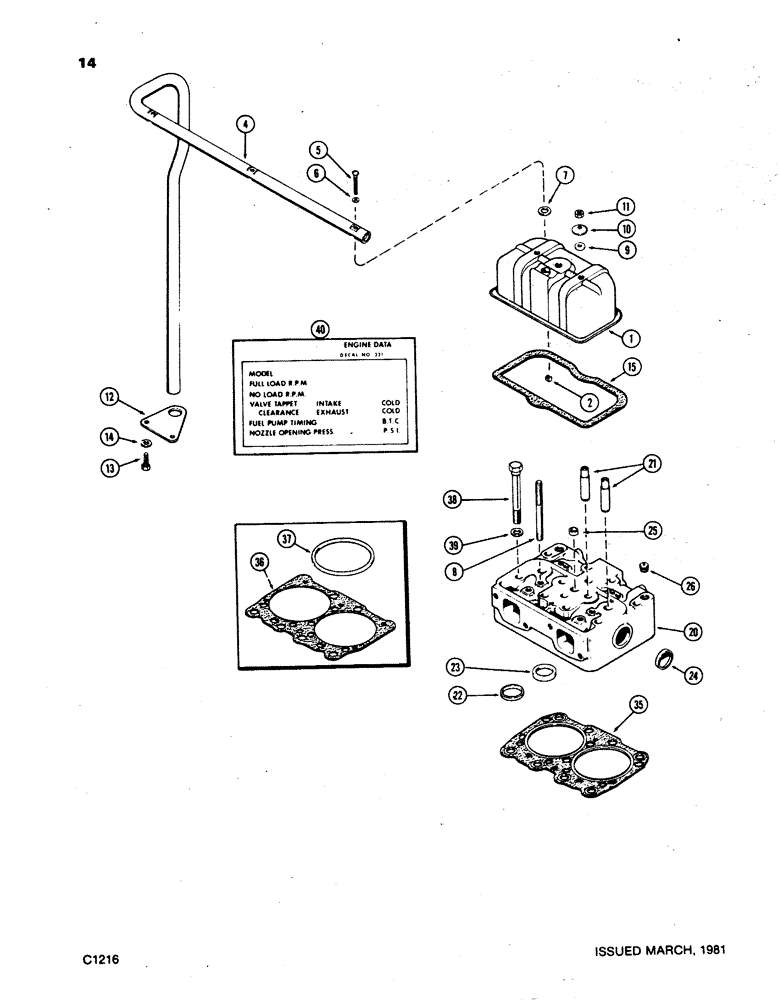

Схема запчастей Case W24B - (014) - CYLINDER HEAD AND COVER, 504BD DIESEL ENGINE (02) - ENGINE

Артикул

Название

Примечание

Количество

1

A58929

COVER

COVER ASSEMBLY - cylinder head, Includes: Ref. 2

3шт.

2

131-114

SPRING NUT,Rtnr, 1/4" - 20, 0.25" High

NUT - breather tube (1/4" NC, cage)

1шт.

4

A59053

TUBE

TUBE - breather

1шт.

5

75-440

SCREW

SCREW - breather tube (1/4 x 2-1/2" NC, round head)

3шт.

6

A34133

GASKET

GASKET - tube, upper (fiber)

3шт.

7

A58635

GASKET,17.27mm ID x 32mm OD x 6.6mm Thk

GASKET - tube, lower

3шт.

8

A67121

STUD

STUD - bracket and cover (7/16" NC x 6")

6шт.

9

A23684

GASKET

GASKET - cover stud (rubber)

6шт.

10

A23683

WASHER

WASHER - cover stud (dished)

6шт.

11

25-117

NUT,7/16"-20, G5

NUT - cover (7/16" NF hex)

6шт.

12

A59054

BRACKET

BRACKET - breather tube

1шт.

13

192-528

BOLT - bracket to oil pan (3/8 x 1-1/2" NC hex, sems)

2шт.

14

195-25

WASHER,3/8"

SPACER - bracket bolt (3/8 x 13/16 x 1/16")

1шт.

15

A65734

CYLINDER HEAD GASKET

GASKET - cover to head (Replaces A58928)

3шт.

20

A66709

HEAD

HEAD ASSEMBLY - cylinder (Replaces A60558), Includes: Ref. 21 - 25

3шт.

20

AR66686

REMAN-CYLINDER HEAD

Remanufactured Cylinder Head

3шт.

20

AC66686

CORE-CYLINDER HEAD

Return Number

3шт.

21

A41783

GUIDE

GUIDE - intake and exhaust valve

4шт.

22

A60557

INSERT

INSERT - intake valve seat

2шт.

23

A66192

INSERT

INSERT - exhaust valve seat

2шт.

24

A34124

PLUG,Cup, 1 5/8", Stainless

PLUG - 1-5/8" (41.27 mm) cup type

2шт.

25

A58620

PLUG,Cup, 3/4", Stainless

PLUG - 3/4" (19.1 mm) cup type

3шт.

26

221-1843

PLUG

PLUG - cylinder head (3/8" PT, socket head)

6шт.

35

REF

INSTRUCTION

GASKET - cylinder head, with fire ring (See Figure 26)

3шт.

37

A58622

RING

RING - fire (Standard) (Used with Ref 36)

6шт.

37

NLS

NO LONGER SERVICED

RING - fire (Oversize with blue stripe) (Used with Ref 36)

6шт.

38

A76638

BOLT

BOLT - cylinder head (5/8 x 6-1/4" NC hex) (Used engine serial no. 2556252 and after)

30шт.

38

A62732

STEP BOLT

BOLT - cylinder head (5/8 x 5-5/8" NC) (Used prior to engine serial no. 2556252)

30шт.

39

A58629

BEARING WASHER,16.66mm ID x 25.4mm OD x 3.04mm Thk

WASHER - cylinder head bolt

30шт.

40

321-2306

SPARE PART DECAL - engine data

1шт.

Выбрано товаров: 30
