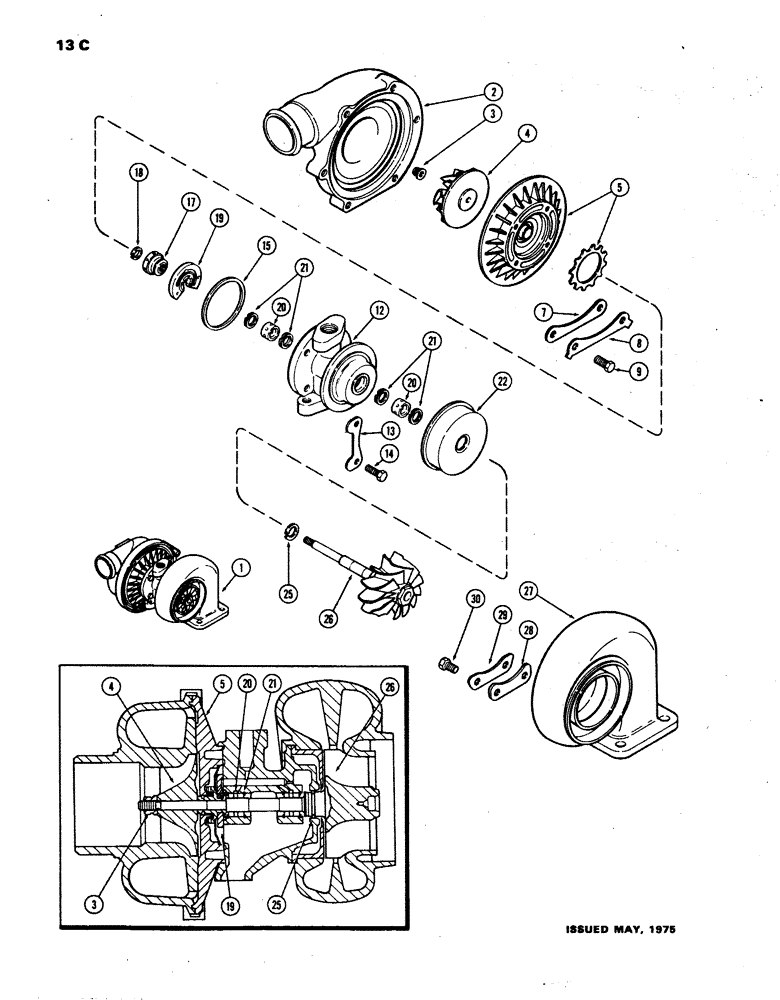

Запчасти Case W24B (013C) - TURBO-CHARGER, (504DB) DIESEL ENGINE (02) - ENGINE

1

A157336

TURBOCHARGER

TURBOCHARGER

1шт.

1

A48192

REMAN-TURBOCHARGER

Remanufactured Turbocharger

1шт.

1

A48191

CORE-TURBOCHARGER

Return Part Number

1шт.

1

A44499

TURBOCHARGER

TURBO-CHARGER ASSY. - (rebuilt), Includes: Ref. 2 - 30

1шт.

1

A48192

REMAN-TURBOCHARGER

Remanufactured Turbocharger

1шт.

1

A44498

CORE-TURBOCHARGER

Return Part Number, Turbo-Charger Assy. (do not use this part no. for ordering. This part no. is to be used only in requesting return authority on used turbo-charger to be returned for credit), Includes: Ref. 2 - 30

1шт.

2

A44837

HOUSING

HOUSING - compressor wheel

1шт.

3

A44831

NUT

NUT - lock, compressor wheel

1шт.

4

A44835

IMPELLER

IMPELLER - compressor wheel

1шт.

5

A44836

LARGE PLATE

PLATE, LARGE BACKPLATE ASSY. - w/thrust spring

1шт.

7

A44823

CLAMP

CLAMP -, Serial Range: backplate-housing

3шт.

8

A44824

PLATE

PLATE - lock, clamp bolt

3шт.

9

113-101

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

BOLT, , Clamp Hex, 5/16"-18 x 1/2", G5, Full Thd

6шт.

12

A44825

HOUSING

HOUSING ASSY. - center, w/spring pin

1шт.

13

A44820

PLATE

PLATE - lock, center, Serial Range: housing-backplate

2шт.

14

113-2

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

BOLT, , Lock plate Hex, 1/4"-20 x 5/8", G5, Full Thd

4шт.

15

A44833

RING

SEAL - center housing (2-1/4" x 2-3/8 x 1/16")

1шт.

17

A44830

COLLAR

COLLAR - thrust

1шт.

18

A44828

RING

RING - piston (1/2" O.D.)

2шт.

19

A44832

THRUST BEARING,0.172"

BEARING - thrust

1шт.

20

A44826

BEARING

BEARING - center housing (std.) (7/16 x 5/8 x 7/16")

1шт.

20

A44849

BUSHING

BEARING - center housing (.005" undersize)

1шт.

20

A44850

BUSHING

BEARING - center housing (.010" undersize)

1шт.

21

A44827

RING

RING - snap, bearing retaining

4шт.

22

A44834

GUARD

SHROUD - side wheel

1шт.

25

A44829

RING

RING - piston (3/4" O.D.)

1шт.

26

A44841

WHEEL

WHEEL ASSY. - turbine

1шт.

27

A44840

HOUSING

HOUSING - turbine

1шт.

28

A44838

CLAMP

CLAMP - turbine housing

3шт.

29

A44839

PLATE

PLATE - lock, turbine housing bolts

3шт.

30

113-101

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

BOLT, , Lock plate Hex, 5/16"-18 x 1/2", G5, Full Thd

6шт.
