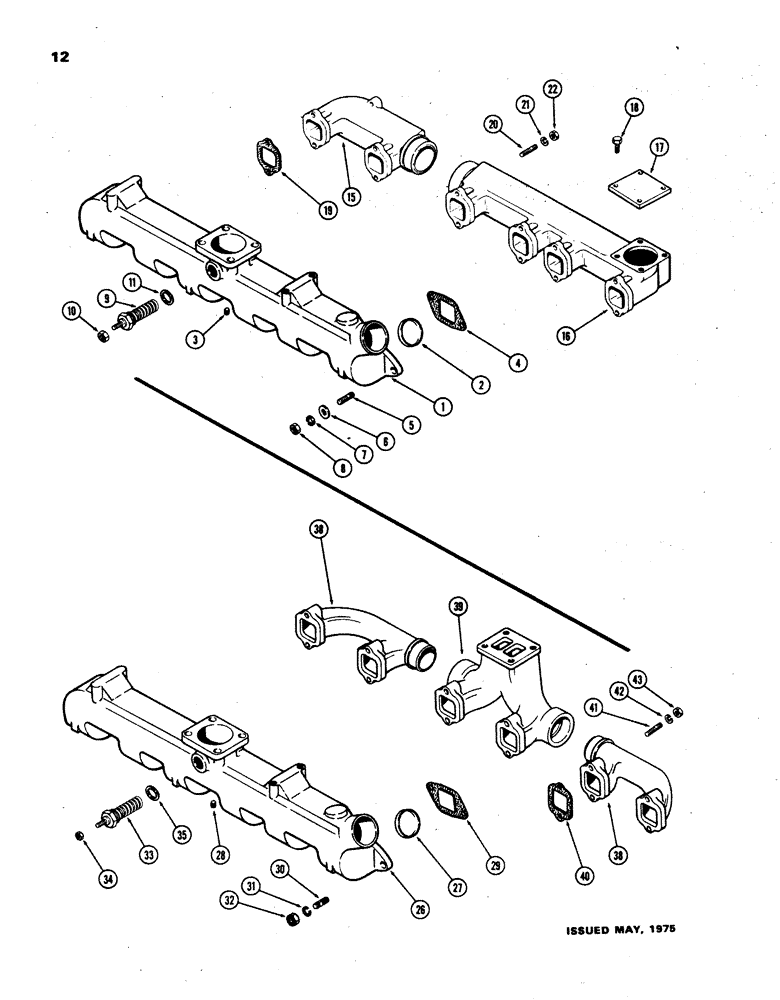

Запчасти Case W24B (012) - MANIFOLDS, (504BD) DIESEL ENGINE, USED WITH NATURAL ASPIRATED ENG., (02) - ENGINE

1

A62845

MANIFOLD

ASSY. - intake, Includes: Ref. 2

1шт.

2

41-1042

PLUG,Cup, 2 5/8"

- (2-5/8" cup type)

1шт.

3

221-1011

DRAIN PLUG,Sq Hd, 1/8"-27 NPTF

PLUG - 1/8" P.T., sq. hd.)

1шт.

4

A58662

MANIFOLD GASKET

- intake manifold

6шт.

5

A59077

STUD

- intake manifold (3/8" N.C. x 1-3/4")

12шт.

6

195-25

WASHER,3/8"

- (13/32 x 13/16 x 1/16")

12шт.

7

92-6

LOCK WASHER,3/8"

12шт.

8

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex.

12шт.

9

A66333

HEATER

ASSY. - (Replaces A34278)

1шт.

10

129-503

NUT,1/4"-20, Brass

Heater terminal 1/4"-20, Brass

1шт.

11

A20916

MANIFOLD GASKET

GASKET -, Serial Range: heater-manifold

1шт.

15

A58664

MANIFOLD

- exhaust, rear

1шт.

16

A58663

MANIFOLD

- exhaust, front

1шт.

17

A58665

COVER

- exhaust manifold

1шт.

18

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

Cover Hex, 3/8"-16 x 1", G5, Full Thd

4шт.

19

A58666

MANIFOLD GASKET

- exhaust manifold

6шт.

20

A59077

STUD

- exhaust manifold (3/8" N.C. x 1-3/4")

12шт.

21

92-6

LOCK WASHER,3/8"

12шт.

22

131-913

FLANGE NUT,Flg, USR, 1/2"-20

- exhaust manifold (3/8" N.C., Seez-Pruf)

12шт.

26

A62845

MANIFOLD

ASSY. - intake, used with turbo charged engines, Includes: Ref. 27

1шт.

27

41-1042

PLUG,Cup, 2 5/8"

- (2-5/8" cup type), used with turbo charged engines

1шт.

28

221-1011

DRAIN PLUG,Sq Hd, 1/8"-27 NPTF

PLUG - (1/8" P.T., Sq. Hd.), used with turbo charged engines

1шт.

29

A58662

MANIFOLD GASKET

- intake manifold, used with turbo charged engines

6шт.

30

A59077

STUD

- intake manifold (3/8" N.C. x 1-3/4"), used with turbo charged engines

12шт.

31

92-6

LOCK WASHER,3/8"

used with turbo charged engines 3/8"

12шт.

32

25-106

NUT,3/8"-16, G5

- intake stud (3/8" N.C. hex.), used with turbo charged engines

12шт.

33

A66333

HEATER

ASSY., used with turbo charged engines

1шт.

34

129-503

NUT,1/4"-20, Brass

Used with turbo charged engines 1/4"-20, Brass

1шт.

35

A20916

MANIFOLD GASKET

GASKET - heater to manifold, used with turbo charged engines

1шт.

38

A65917

MANIFOLD

- exhaust ends, used with turbo charged engines

2шт.

39

A76322

MANIFOLD

- exhaust center, used with turbo charged engines

1шт.

40

A58895

GASKET

- exhaust manifold, used with turbo charged engines

6шт.

41

A35175

STUD

- exhaust manifold (3/8" N.C. x 2-7/16"), used with turbo charged engines

12шт.

42

92-6

LOCK WASHER,3/8"

used with turbo charged engines 3/8"

12шт.

43

131-903

NUT,3/8"-16

NUT - exhaust studs (3/8" N.C., Seez-Pruf), used with turbo charged engines

12шт.
