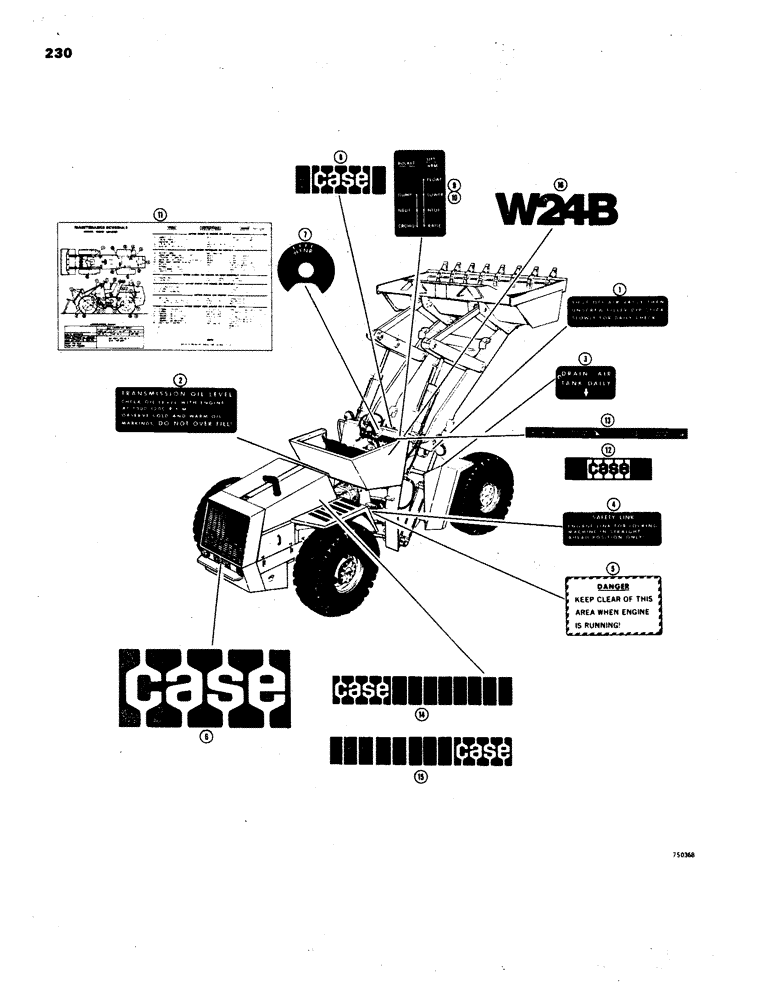

Запчасти Case W24B (230) - DECALS, LATE PRODUCTION (09) - CHASSIS

L36163

DECAL

KIT - decal , W24B articulated loader, Includes: Ref. 1 - 16

1шт.

1

321-1074

DECAL

- hydraulic tank, daily check

1шт.

2

321-1980

DECAL

- transmission oil level

1шт.

3

321-1077

DECAL

- air drain (Lower R.H. front and rear frame)

2шт.

4

321-1078

DECAL

- safety link

1шт.

5

321-1198

DECAL

- warning

1шт.

6

321-2428

DECAL

- "CASE" rear

1шт.

7

321-1047

DECAL

- transmission control

1шт.

8

321-3126

DECAL

- "CASE" front

1шт.

9

321-1075

DECAL

- bucket control, 2 spool

1шт.

10

321-1663

DECAL

- bucket control, 3 spool (Not shown)

1шт.

11

321-2777

DECAL

- maintenance chart

1шт.

12

321-2613

DECAL

- "CASE" instrument cluster

1шт.

13

L57685

DECAL

- instrument cluster

1шт.

14

321-3129

DECAL

- hood, R.H.

1шт.

15

321-3072

DECAL

- hood, L.H.

1шт.

16

321-3166

DECAL

- "W24B" operator's compartment

1шт.
