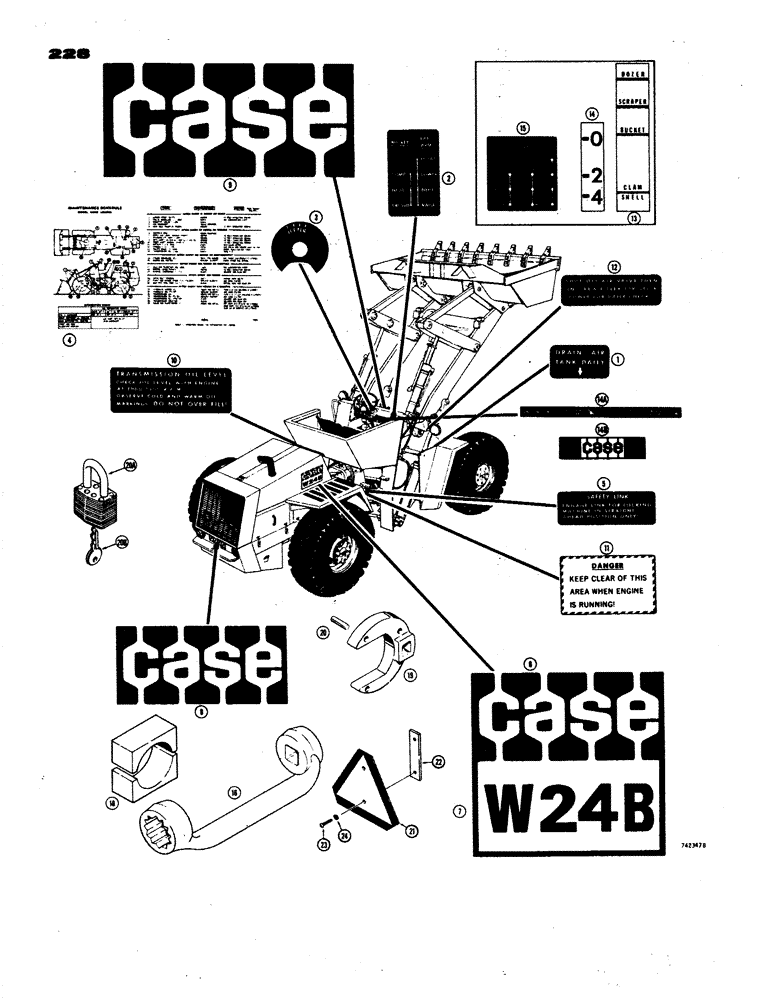

Запчасти Case W24B (228) - DECALS, EARLY PRODUCTION (09) - CHASSIS

L33951

DECAL

KIT - decal, W24B Articulated Loader, Includes: Ref. 1 - 14B

1шт.

1

321-1077

DECAL

- air drain (Lower R.H. front and rear frame)

2шт.

2

321-1075

DECAL

- bucket control pattern (Upper R.H. rear front frame)

1шт.

3

321-1047

DECAL

- transmission shift control (Steering column)

1шт.

4

321-2777

DECAL

- Maintenance Chart

1шт.

5

321-1078

DECAL

- safety link (R.H. rear frame at link bracket)

1шт.

6

321-1443

DECAL

- "CASE" over "W24B" (Hood side panels) Reflective (When stock is exhausted, order 321-1574 non - reflective decal for service)

2шт.

6

321-1574

DECAL

- "CASE" over "W24B (Hood side panels) non - reflective

2шт.

7

321-2120

DECAL

- "W24B" under "CASE" (Hood side panels)

2шт.

8

321-1442

DECAL

- "CASE" (Below grille between rear lights) Reflective (When stock is exhausted, order 321-2427 non - reflective decal for service)

1шт.

8

321-2427

EMBLEM

DECAL - "CASE" (Below grille between rear lights) non - reflect ive

1шт.

9

321-1445

DECAL

- "CASE" (Front frame above access cover) Reflective when stock is exhausted, order 321-2429 non - reflective decal for service)

1шт.

9

321-2429

EMBLEM

DECAL - "CASE" (Front frame above access cover) non - reflective

1шт.

10

321-1980

DECAL

- transmission oil level (L.H. rear frame at filler pipe)

1шт.

11

321-1198

DECAL

- warning (Lower R.H. front of rear frame)

1шт.

12

321-1074

DECAL

- hydraulic tank daily check (On tank cover)

1шт.

13

321-1223

DECAL

- bucket positioning indicator, at bellcrank

1шт.

14

A17710

DECAL

- clam opening, L.H. side of bucket blade

1шт.

14a

321-2613

DECAL

- instrument cluster

1шт.

14b

L57685

DECAL

- instrument cluster "Case"

1шт.

15

321-1663

DECAL

- bucket control pattern (3 spool valve) Upper R.H. rear front frame (Models with 4 - In - 1 bucket)

1шт.

16

A42393

SPECIAL WRENCH

WRENCH - torque, engine cylinder head bolt, tools

1шт.

17

L43569

LUBE NIPPLE

KIT - cable lubricator (Not shown), tools

1шт.

18

L51461

CLAMP - control valve spool, tools

1шт.

19

G33235

OPEN END WRENCH

WRENCH - spanner (To service tilt cylinder listed on Figures 204 thru 205A), tools, Includes: Ref. 20

1шт.

19

G33203

TOOL

WRENCH - spanner (To service lift cylinders listed on Figures 202 thru 203C), tools, Includes: Ref. 20

1шт.

19

D44112

OPEN END WRENCH

WRENCH - spanner (To service steering cylinders listed on Figures 154 thru 155A), tools, Includes: Ref. 20

1шт.

19

G33234

OPEN END WRENCH

WRENCH - spanner (To service clam cylinder listed on Figures 206 thru 207A), tools, Includes: Ref. 20

1шт.

20

D30107

PIN

- spanner wrench (D44112 and D44115 wrenches only), tools

3шт.

20

D44118

SPARE PART

PIN - spanner wrench (D44116 and G33203 wrenches only), tools

3шт.

20a

R29556

LOCK

- models with lockup parts, tools, Includes: Ref. 20B

8шт.

20b

R29554

LOCK

KEY - padlock, tools

2шт.

A59450

WARNING SIGN

EMBELM AND BACKING PLATE ASSEMBLY - slow moving vehicle, Includes: Ref. 21 and 21A

1шт.

21

321-1751

DECAL

- slow moving vehicle embelm

1шт.

21a

NSS

NOT SOLD SEPARAT

BACKING PLATE - slow moving vehicle embelm (Not shown)

1шт.

22

L16093

PLATE

- mounting, embelm, slow moving vehicle

1шт.

23

182-520

SCREW,Sl Pan Hd, #10 - 24 x 1 1/2"

- machine, pan head (#10 - 24 NC x 1 - 1/2"), slow moving vehicle emblem

2шт.

24

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, , SMV emblem #10

2шт.
