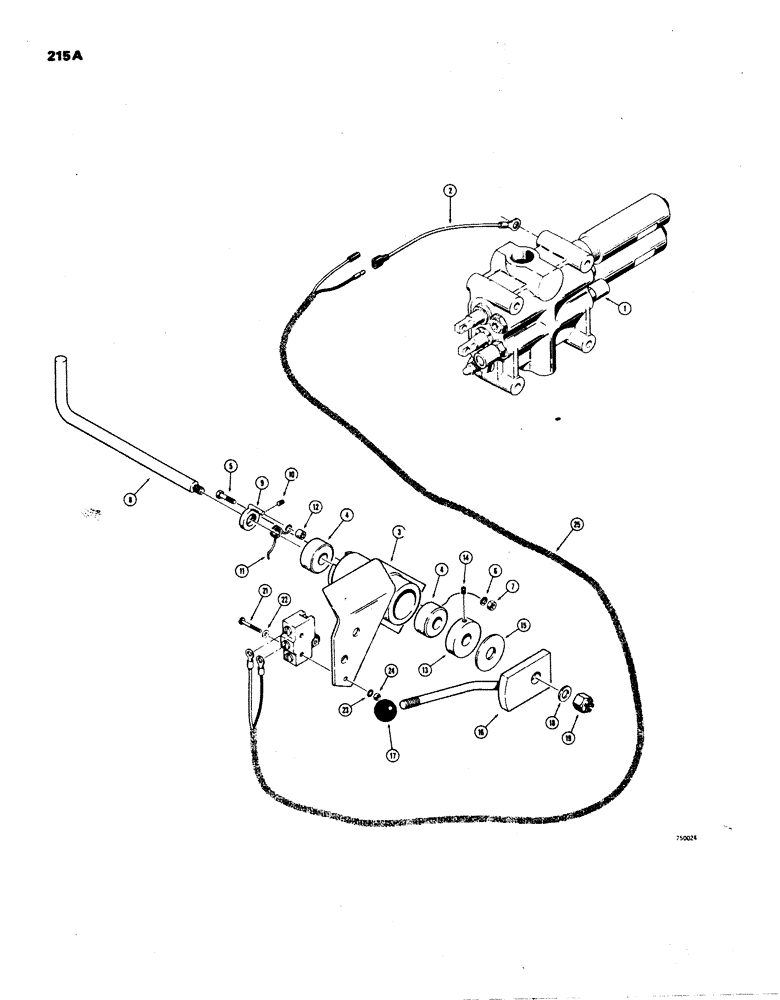

Запчасти Case W24B (215A) - LOADER BUCKET HEIGHT CONTROL, MODELS WITH INSTRUMENT CLUSTER (09) - CHASSIS

1

REF

INSTRUCTION

VALVE - hydraulic control (See Figures 210 and 212 for valves)

1шт.

2

L50380

ELECTRICAL WIRE

WIRE - valve to solenoid ground

1шт.

3

L54913

BRACKET

- height control, Includes: Ref. 4

1шт.

4

A34811

PLUG

BUSHING - height control bracket

2шт.

5

13-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

HHCS - 5/16" - 18 NC x 1 - 1/4"

2шт.

6

92-5

LOCK WASHER,5/16"

2шт.

7

9635082

NUT,5/16" - 18, Gr 5

- hex. (5/16" - 18 NC)

2шт.

8

L51878

SHAFT

- height control

1шт.

9

L52006

COLLAR CLAMP

COLLAR - shaft position

1шт.

10

178-804

SCREW - set, hex. socket self locking (1/4" - 20 NC x 3/4")

1шт.

11

L52007

VALVE SPRING

SPRING - height control return

1шт.

12

L52597

SPACER

- spring guide

1шт.

13

L52596

COLLAR

- handle

1шт.

14

83-410

SET SCREW,Hex Soc, 1/4"-20 x 5/8"

SCREW - set. hex. socket cup point (1/4" - 20 NC x 5/8")

1шт.

15

L52598

WASHER

DISC - friction

1шт.

16

L51924

HANDLE

- control

1шт.

17

L16708

KNOB

- handle

1шт.

18

95-5

WASHER,3/8" x 7/8" x .083"

- flat (5/16")

1шт.

19

232-4115

LOCK NUT,5/16"-18, GC

NUT - hex., lock (5/16" - 18 NC)

1шт.

20

L54683

SWITCH

- micro

1шт.

21

169-66

SCREW - #6 - 32 NC x 1"

2шт.

23

192-5

LOCK WASHER,#6

WASHER, LOCK, #6

2шт.

24

129-15

NUT,#6-32

2шт.

25

L50381

HARNESS

- bucket height control

1шт.
