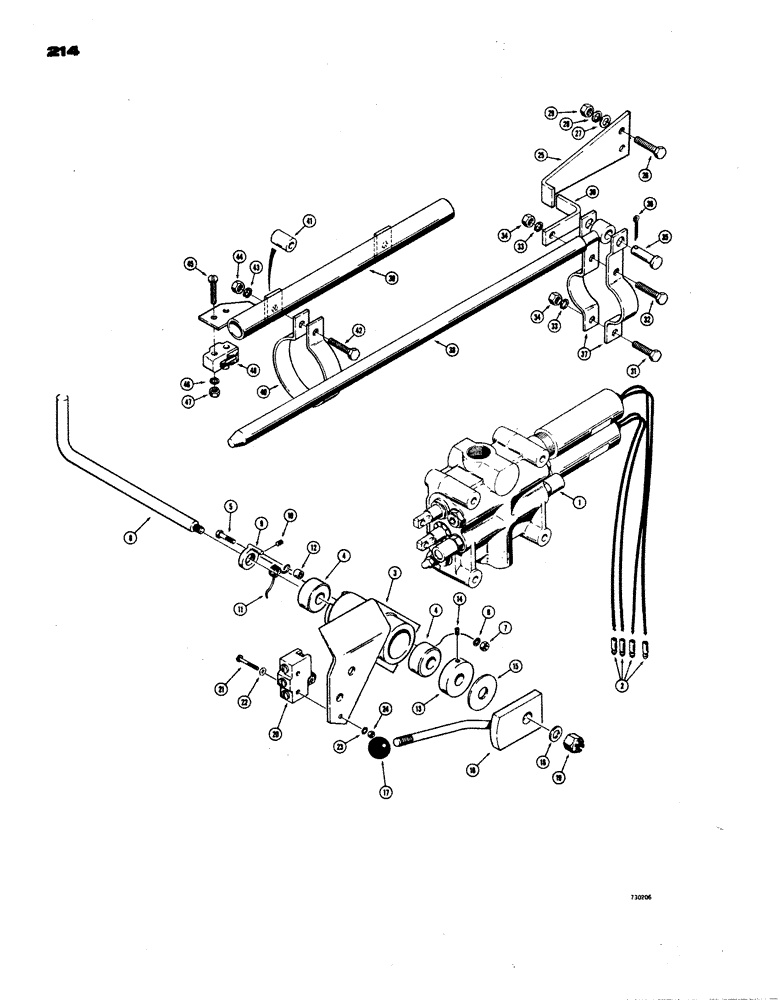

Запчасти Case W24B (214) - LOADER POSITIONING CONTROLS, MODELS WITHOUT INSTRUMENT CLUSTER (09) - CHASSIS

1

REF

INSTRUCTION

VALVE - hydraulic control (See Figures 210 and 212 for valves)

1шт.

2

L10051

TERMINAL CONNECTOR,Male

CONNECTOR - , bullet Male

4шт.

3

L53135

BRACKET

- height control (When stock is exhausted, order L54913 bracket for service), loader bucket

1шт.

3

L54913

BRACKET

- height control, loader bucket, Includes: Ref. 4

1шт.

4

A34811

PLUG

BUSHING - height control bracket, loader bucket

2шт.

5

13-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

HHCS - 5/16" - 18 NC x 1 - 1/4", loader bucket height control

2шт.

6

92-5

LOCK WASHER,5/16"

loader bucket height control 5/16"

2шт.

7

9635082

NUT,5/16" - 18, Gr 5

- hex. (5/16" - 18 NC), loader bucket height control

2шт.

8

L51878

SHAFT

- height control, loader bucket

1шт.

9

L52006

COLLAR CLAMP

COLLAR - shaft position, loader bucket height control

1шт.

10

178-804

SCREW - set, hex. socket self - locking (1/4" - 20 NC x 3/4"), loader bucket height control

1шт.

11

L52007

VALVE SPRING

SPRING - height control return, loader bucket

1шт.

12

L52597

SPACER

- spring guide, loader bucket height control

1шт.

13

L52596

COLLAR

- handle, loader bucket height control

1шт.

14

83-410

SET SCREW,Hex Soc, 1/4"-20 x 5/8"

SCREW - set, hex. socket cup point (1/4" - 20 NC x 5/8"), loader bucket height control

1шт.

15

L52598

WASHER

DISC - friction, loader bucket height control

1шт.

16

L51924

HANDLE

- control, loader bucket height

1шт.

17

L16708

KNOB

- handle, loader bucket height control

1шт.

18

95-5

WASHER,3/8" x 7/8" x .083"

- flat (5/16"), loader bucket height control

1шт.

19

232-4115

LOCK NUT,5/16"-18, GC

NUT - hex., lock (5/16" - 18 NC), loader bucket height control

1шт.

20

D40921

SWITCH

- micro (When stock is exhausted, order L54683 switch for service), loader bucket height control

1шт.

20

L54683

SWITCH

- micro, loader bucket height control

1шт.

21

182-52

SCREW,Sl Pan Hd, #6 - 32 x 1 1/4"

RHMS - #6 - 32 NC x 1 - 1/4", loader bucket height control

2шт.

22

195-10

WASHER,#8

Loader bucket height control #8

2шт.

23

193-4

LOCK WASHER,Ext Tooth, 0.145" ID x 0.318" OD, STL, PLN

WASHER, LOCK, , Loader bucket height control Ext Tooth, #6

2шт.

24

129-15

NUT,#6-32

Loader bucket height control #6-32

2шт.

25

L15066

INDICATOR

- return - to - dig, on bellcrank, loader bucket

1шт.

26

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

HHCS - 3/8" - 16 NC x 1 1/2", loader bucket return to dig

2шт.

27

95-6

WASHER,3/8"

- standard wrot (), loader bucket return to dig 3/8"

2шт.

28

92-6

LOCK WASHER,3/8"

loader bucket return to dig 3/8"

2шт.

29

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC), loader bucket return to dig

2шт.

30

L19459

INDICATOR

- return to dig, on cylinder, loader bucket

1шт.

31

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

Loader bucket return-to-dig Hex, 3/8"-16 x 1 1/4", G5, Full Thd

1шт.

32

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

HHCS - 3/8" - 16 NC X 1 - 1/2", loader bucket return to dig

1шт.

33

92-6

LOCK WASHER,3/8"

loader bucket return to dig 3/8"

2шт.

34

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC), loader bucket return to dig

2шт.

35

141-7

CLEVIS PIN,5/8" x 1.610"

PIN - clevis, loader bucket return to dig

1шт.

36

132-49

COTTER PIN,1/8" x 1 1/8"

Pin, Split (Cotter), , Loader bucket return to dig 1/8" x 1 1/8"

1шт.

37

L16198

CLAMP

- actuating, rod eye, loader bucket, Serial Range: return-dig

2шт.

38

L25954

STEM

ROD - actuating, loader bucket, Serial Range: return-dig

1шт.

39

L40442

GUIDE

- rod, return - to - dig, loader bucket

1шт.

40

L40440

STRAP

BRACKET - guide mounting, loader bucket, Serial Range: return-dig

2шт.

41

L17446

SPACER

- guide bracket, loader bucket, Serial Range: return-dig

2шт.

42

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

Loader bucket return to dig Hex, 3/8"-16 x 2", G5

2шт.

43

92-6

LOCK WASHER,3/8"

loader bucket return to dig 3/8"

2шт.

44

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC), loader bucket return to dig

2шт.

45

169-66

RHMS - #6 - 32 NC x 1", loader bucket, Serial Range: return-dig

2шт.

46

192-5

LOCK WASHER,#6

WASHER, LOCK, , Loader bucket return-to-dig #6

2шт.

47

129-15

NUT,#6-32

Loader bucket return to dig #6-32

2шт.

48

L54683

SWITCH

- micro, return - to - dig, loader bucket

1шт.
