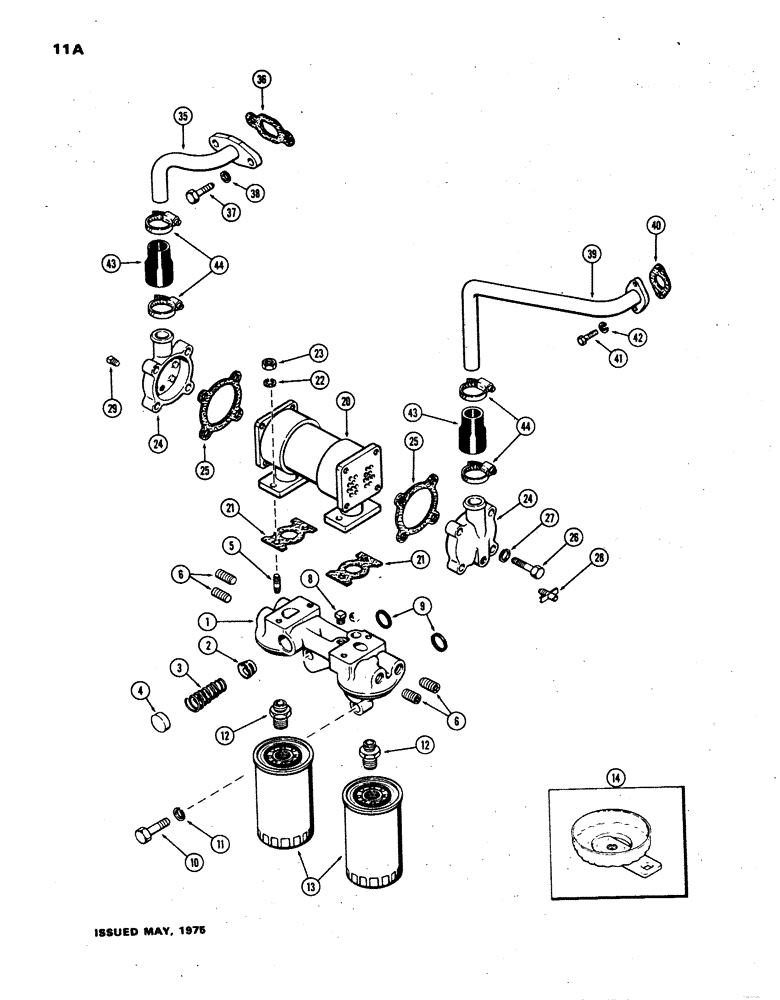

Запчасти Case W24B (011A) - OIL FILTER AND HEAT EXCHANGER, (504BD) DIESEL ENG,USED W/LARGE CRANKSHAFT USED PRIOR-ENG. SN.2572011 (02) - ENGINE

A64107

BASE

ASSY. - oil filter & cooler, Includes: Ref. 1 - 6

1шт.

1

NSS

NOT SOLD SEPARAT

BASE

1шт.

2

A21090

VALVE

- relief

1шт.

3

A58669

SPRING

- relief valve (2-13/16" free length)

1шт.

4

41-1020

PLUG,Cup, 1 1/4"

- relief valve (1-1/4" cup type)

1шт.

5

G11204

STUD

- cooler mtg. (3/8" N.C. x 1-1/2")

4шт.

6

221-844

PLUG,Hex Soc, 1/2"-14

- ports (1/2" P.T., hex. sckt. hd.)

5шт.

8

221-3

DRAIN PLUG,Sq Hd, 3/8"-18 NPTF

PLUG - base (3/8" P.T., sq. hd.)

1шт.

9

A64434

O-RING,0.93" ID x 1.142" x 0.106"

"O" RING - base to block (15/16 x 1-1/8 x 3/32")

2шт.

10

13-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

Base to block Hex, 1/2"-13 x 2", G5

1шт.

10

13-848

BOLT,Hex, 1/2" - 13 x 3", Gr 5

- base to block (1/2 x 3" N.C. hex.)

1шт.

11

195-33

WASHER,1/2"

- (1/2 x 1-1/16 x 13 ga.)

2шт.

12

A64454

ADAPTER

-, Serial Range: element-base

2шт.

13

A64453

ENGINE OIL FILTER

ELEMENT - oil filter

2шт.

14

A64761

TOOL

- filter removal

1шт.

20

A63917

COOLER

HEAT EXCHANGER - (oil cooler)

1шт.

21

A65359

GASKET

-, Serial Range: cooler-base

2шт.

22

92-6

LOCK WASHER,3/8"

cooler mtg. studs 3/8"

4шт.

23

25-106

NUT,3/8"-16, G5

- cooler mtg. studs (3/8" N.C. hex.)

4шт.

24

A64349

HOOD

BONNET - cooler ends

2шт.

25

A63920

GASKET

-, Serial Range: bonnets-cooler

2шт.

26

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- bonnet to cooler (3/8 x 1-1/2" N.C. hex.)

8шт.

27

92-6

LOCK WASHER,3/8"

8шт.

28

217-107

VALVE

DRAINCOCK - (in front bonnet)

1шт.

29

221-11

PLUG,Sq Hd, 1/8"-27

- (1/8" P.T., sq. hd.) (in rear bonnet)

1шт.

35

A64350

TUBE

-, Serial Range: cooler-block

1шт.

36

A58670

GASKET

-, Serial Range: tube-block

1шт.

37

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

Tube to block Hex, 1/2"-13 x 1 1/4", G5, Full Thd

2шт.

38

92-8

LOCK WASHER,1/2"

2шт.

39

A66714

TUBE

- cooler to water pump body (Replaces A64445)

1шт.

40

A58680

OIL PAN GASKET SET

- tube to water pump body

1шт.

41

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

Tube to water pump body Hex, 5/16"-18 x 1", G5, Full Thd

2шт.

42

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

43

A64353

HOSE

- water cooler, Serial Range: tubes-bonnets

2шт.

44

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose (1-3/16" to 1-3/4")

4шт.
