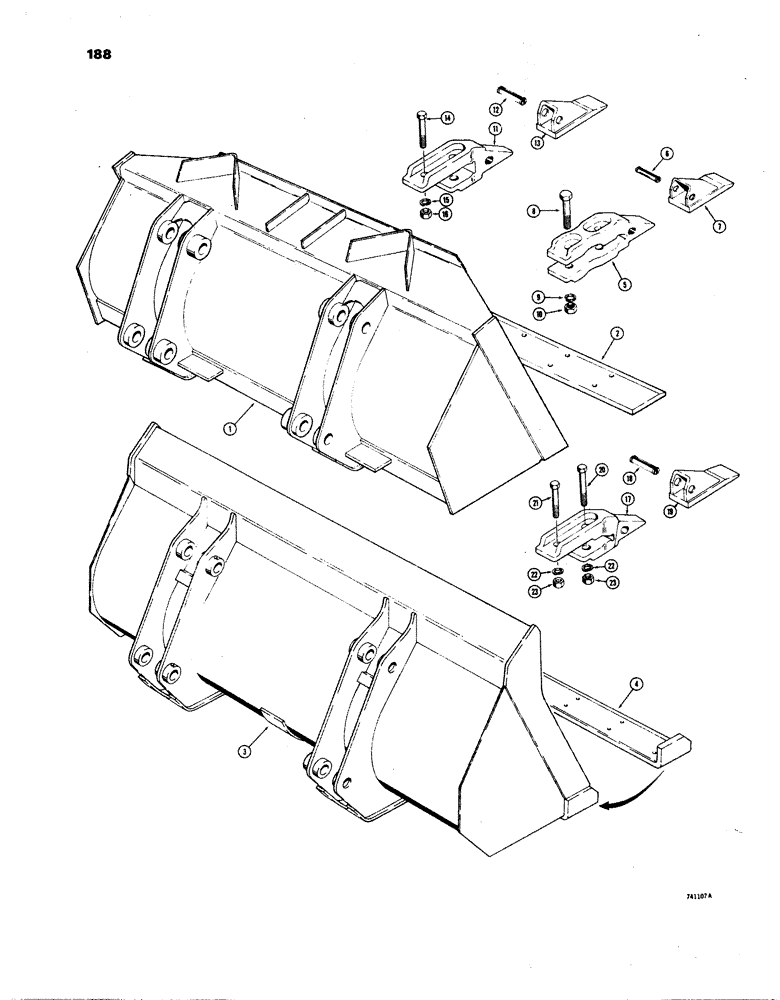

Запчасти Case W24B (188) - LOADER BUCKETS (09) - CHASSIS

L17042

BUCKET ASSEMBLY - loader, 2 cu. yd., (96 in. wide) machinery item, Includes: Ref. 1 and 2

1шт.

When stock is exhausted on the items preceded by an asterisk, they will no longer be available for service.

1шт.

1

NSS

NOT SOLD SEPARAT

BUCKET - loader, 2 cu. yd., (96 in. wide) machinery item

1шт.

2

L17396

EDGE

CUTTING EDGE - bucket, (96 in. wide) machinery item

1шт.

L17045

BUCKET ASSEMBLY - loader, 2 - 1/2 cu. yd. (Use L57484 Bucket), (96 in. wide) machinery item, Includes: Ref. 1 and 2

1шт.

1

NSS

NOT SOLD SEPARAT

BUCKET - loader, 2 - 1/2 cu. yd., (96 in. wide) machinery item

1шт.

2

L17396

EDGE

CUTTING EDGE - bucket 2 - 1/2 cu. yd., (96 in. wide) machinery item

1шт.

L57484

BUCKET ASSEMBLY - loader, 2 - 1/2 cu. yd., (96 in. wide) machinery item, Includes: Ref. 3 and 4

1шт.

3

NSS

NOT SOLD SEPARAT

BUCKET - loader, 2 - 1/2 cu. yd., (96 in. wide) machinery item

1шт.

4

L57494

EDGE

CUTTING EDGE - bucket 2 - 1/2 cu. yd., (96 in. wide) machinery item

1шт.

L15877

BUCKET ASSEMBLY - loader, 2 - 1/2 cu. yd. (Use L54112 bucket), (104 in. wide) machinery item, Includes: Ref. 1 and 2

1шт.

1

NSS

NOT SOLD SEPARAT

BUCKET - loader, 2 - 1/2 cu. yd., (104 in. wide) machinery item

1шт.

2

L17382

EDGE

CUTTING EDGE - bucket, (104 in. wide) machinery item

1шт.

L54112

BUCKET ASSEMBLY - loader, 2 - 1/2 cu. yd., (104 in. wide) machinery item, Includes: Ref. 3 and 4

1шт.

3

NSS

NOT SOLD SEPARAT

BUCKET - loader, 2 - 1/2 cu. yd., (104 in. wide) machinery item

1шт.

4

L54092

BLADE

CUTTING EDGE - bucket, (104 in. wide) machinery item

1шт.

L43731

BUCKET ASSEMBLY - loader, 2 - 3/4 cu. yd. (Rock and heavy material) Machinery No. L80344, (120 in. wide) item, Includes: Ref. 1 and 2

1шт.

1

NSS

NOT SOLD SEPARAT

BUCKET - loader, rock and heavy material, 2 - 3/4 cu. yd., (120 in. wide) machinery item

1шт.

2

L25568

CUTTING EDGE - bucket, 2 - 3/4 cu. yd. , (120 in. wide) machinery item

1шт.

L17043

BUCKET ASSEMBLY - loader, 3 cu. yd. (Use L57342 bucket), (104 in. wide) machinery item, Includes: Ref. 1 and 2

1шт.

1

NSS

NOT SOLD SEPARAT

BUCKET - loader, 3 cu. yd., (104 in. wide) machinery item

1шт.

2

L17382

EDGE

CUTTING EDGE - bucket, (104 in. wide) machinery item

1шт.

L57342

BUCKET ASSEMBLY - loader, 3 cu. yd., (104 in. wide) machinery item, Includes: Ref. 3 and 4

1шт.

3

NSS

NOT SOLD SEPARAT

BUCKET - loader, 3 cu. yd., (104 in. wide) machinery item

1шт.

4

L54092

BLADE

CUTTING EDGE - bucket, 3 cu. yd., (104 in. wide) machinery item

1шт.

L17044

BUCKET ASSEMBLY - loader, 4 cu. yd., (104 in. wide) machinery item, Includes: Ref. 1 and 2

1шт.

When stock is exhausted on the items preceded by an asterisk, they will no longer be available for service.

1шт.

1

NSS

NOT SOLD SEPARAT

BUCKET - loader, 4 cu. yd., (104 in. wide) machinery item

1шт.

2

L17382

EDGE

CUTTING EDGE - bucket, 4 cu. yd., (104 in. wide) machinery item

1шт.

L17087

ROD ASSY.

TOOTH ASSEMBLY - bucket (H and L tooth Co.), Includes: Ref. 5 - 7

8-9шт.

L55846

TOOTH

ASSEMBLY - bucket (American Steel Foundry Co.) When stock is exhausted, order L70481 Tooth Assembly (H & L Tooth Co.), Includes: Ref. 5 - 7

8-9шт.

5

NSS

NOT SOLD SEPARAT

SHANK - tooth

1шт.

6

R29121

PIN

FLEX PIN - tooth

1шт.

7

L35893

POINT

- tooth

1шт.

8

13-1260

BOLT,Hex, 3/4" - 10 x 3-3/4", Gr 5

HHCS - 3/4" - 10 NC x 3 - 3/4" (L17087 and L55846 teeth)

18шт.

9

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

18шт.

10

25-1012

NUT,3/4"-10, G5

18шт.

L58824

BUCKET TOOTH

TOOTH ASSEMBLY - L57484, L54112 and L57342 Bucket Assemblies only (H and L tooth Co.), Includes: Ref. 11 - 13

9шт.

12

D39448

PIN

FLEX PIN - tooth

1шт.

11

NSS

NOT SOLD SEPARAT

SHANK - tooth

1шт.

14

13-1052

BOLT,Hex, 5/8" - 11 x 3-1/4", Gr 5

(L58824 tooth) Hex, 5/8"-11 x 3 1/4", G5

18шт.

15

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

18шт.

16

25-1010

NUT,5/8"-11, G5

18шт.

13

D39090

POINT

- tooth

1шт.

L70481

TOOTH

ASSEMBLY - bucket (H & L Tooth Co.) L57484 and L54112 Bucket Assemblies, Includes: Ref. 17 - 19

8шт.

17

NSS

NOT SOLD SEPARAT

SHANK - tooth

8шт.

18

L32090

PIN

FLEX PIN - tooth

8шт.

19

L32089

POINT

- tooth

8шт.

20

13-1256

BOLT,Hex, 3/4" - 10 x 3-1/2", Gr 5

8шт.

21

13-1248

BOLT,Hex, 3/4" - 10 x 3", Gr 5

8шт.

22

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

16шт.

23

25-1012

NUT,3/4"-10, G5

16шт.
