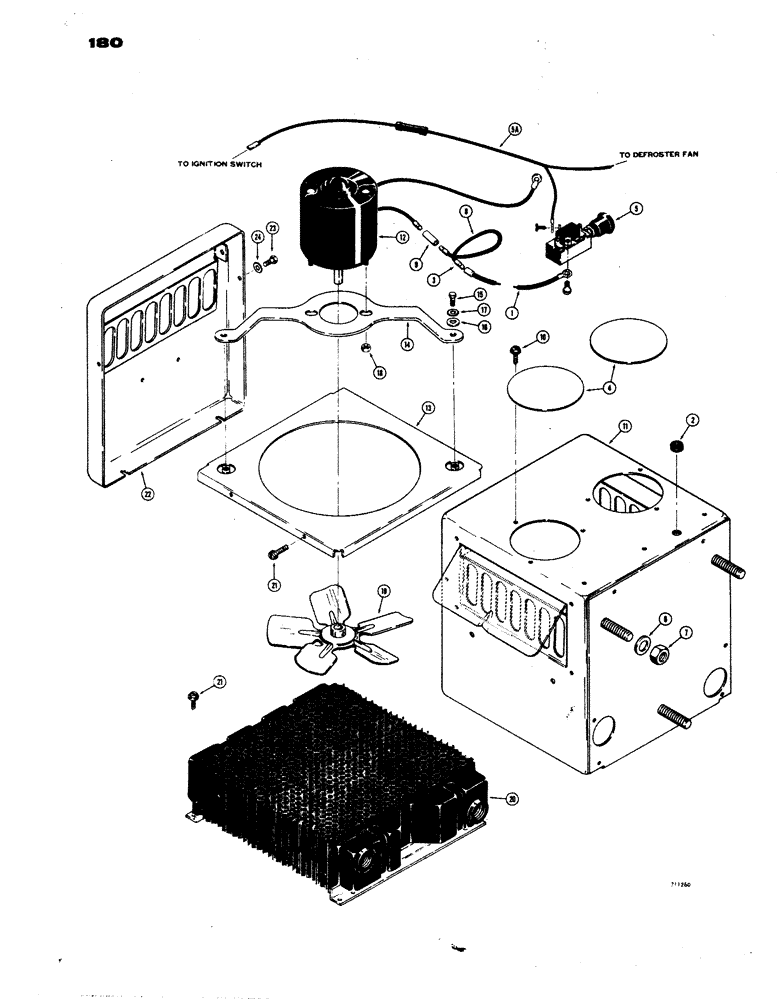

Запчасти Case W24B (180) - CAB HEATER AND WIRING (09) - CHASSIS

1

L50065

WIRE - heater to heater switch

1шт.

2

D45994

GROMMET,3/16" ID x 5/16" Groove Dia

- heater wire

1шт.

3

R18653

TERMINAL STRIP

CONNECTOR - wire, male bullet

1шт.

4

L50606

COVER

- defroster outlet

2шт.

5

L33827

SWITCH

- heater

1шт.

5a

L50619

HARNESS - wiring, heater switch to ignition switch

1шт.

6

195-103

WASHER,5/16"

- plain (3/8") Zinc plated

3шт.

7

129-122

NUT,5/16"-24, G5

Heater mounting 5/16"-24, G5

3шт.

L33826

HEATER ASSY.

HEATER ASSEMBLY - cab, Includes: Ref. 8 - 24

1шт.

8

L33835

LEAD - wire, at heater

1шт.

9

T42581

CONNECTOR - lead wire

1шт.

10

L33838

SELF-TAP SCREW,#8 - 15 x 1/2"

- special, defroster outlet cover mounting

6шт.

11

L33828

SHELL

HOUSING - heater

1шт.

12

L33829

MOTOR HOUSING

MOTOR - heater, 24 volt

1шт.

13

L33830

PLATE

- shroud

1шт.

14

L33831

BRACKET

- motor

1шт.

15

113-1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

HHCS - 1/4" - 13 NC x 1/2" (Zinc plated)

2шт.

16

195-510

WASHER,#8

- plain (3/16") Zinc plated

2шт.

17

193-70

LOCK WASHER,Ext-Int Tooth, #10

WASHER - internal, extenal shakeproof (1/4")

2шт.

18

129-16

NUT,#8-32

2шт.

19

L33832

FAN

- heater

1шт.

20

L33833

CORE

- heater

1шт.

21

L33838

SELF-TAP SCREW,#8 - 15 x 1/2"

- special

8шт.

22

L33834

COVER

- heater access

1шт.

23

L33838

SELF-TAP SCREW,#8 - 15 x 1/2"

- special, cover mounting

2шт.

24

493-11017

LOCK WASHER,Ext-Int Tooth, #8

Ext-Int Tooth, #8

2шт.
