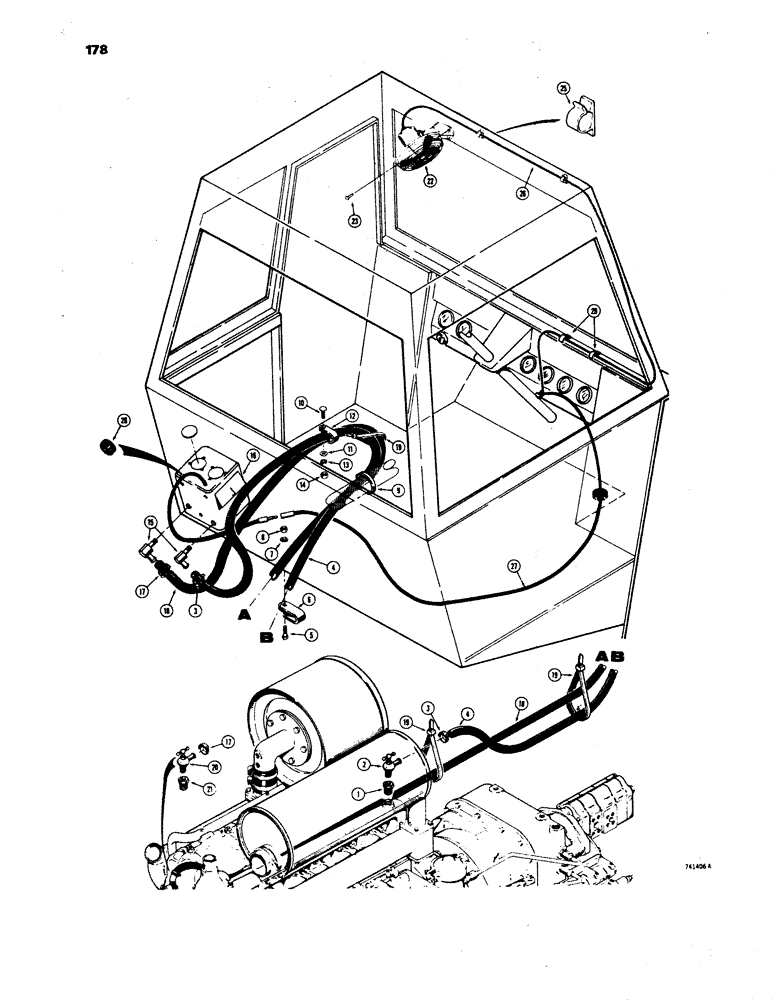

Запчасти Case W24B (178) - HEATER AND DEFROSTER (09) - CHASSIS

1

221-1089

REDUCER,Hex, 1/2" x 3/8" NPT

BUSHING - reducer (1/2" x 3/8")

1шт.

2

A16764

VALVE

- shutoff, water

1шт.

3

214-253

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

CLAMP - hose

2шт.

4

L52721

HOSE,3124.00 mm, SAE 20R3

HEATER HOSE - Low pressure, Water manifold to heater 3124.00 mm, SAE 20R3

1шт.

5

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

1шт.

6

L50062

SHIN

CLAMPS - hose

1шт.

7

92-5

LOCK WASHER,5/16"

1шт.

8

9635082

NUT,5/16" - 18, Gr 5

- hex. (5/16" - 18 NC)

1шт.

9

L18331

CABLE TIE,375.9mm L, Nylon, Black

TIE STRAP - heater hose

2шт.

10

11-516

BOLT,Short NK, 5/16"-18 x 1", G2

CARRIAGE, Short NK, 5/16"-18 x 1", G2

2шт.

11

95-5

WASHER,3/8" x 7/8" x .083"

- standard wrot (5/16")

2шт.

12

L50062

SHIN

CLAMP - hose

2шт.

13

92-5

LOCK WASHER,5/16"

2шт.

14

9635082

NUT,5/16" - 18, Gr 5

- hex. (5/16" - 18 NC)

2шт.

15

L50610

ELBOW

- adjustable, 90 degree

2шт.

16

REF

INSTRUCTION

HEATER ASSEMBLY - cab (Parts list Figure 180)

1шт.

17

214-253

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

CLAMP - hose

2шт.

18

L52722

HOSE ASSY.

HOSE - low pressure, heater to water pump

1шт.

19

L11541

CABLE TIE,203.2mm L, Nylon

TIE STRAP - heater hose

2шт.

20

A16764

VALVE

- shut off, water

1шт.

21

221-1089

REDUCER,Hex, 1/2" x 3/8" NPT

BUSHING - reducer (1/2" x 3/8")

1шт.

22

L48971

FAN

- defroster

1шт.

23

187-1109

SELF-TAP SCREW,Cross Pan Hd, #8 x 1/2"

RHMS - #10 -24 NC x 5/8" ( replaced 187-1509 )

4шт.

25

L54606

CLIP

CLAMP - wire

2шт.

26

L50066

WIRE - defroster fan to heater switch

1шт.

27

L50065

WIRE - heater to heater switch

1шт.

28

A17599

GROMMET,1/4" ID x 7/16" Groove Dia

- heater wire (At heater)

1шт.

29

L18331

CABLE TIE,375.9mm L, Nylon, Black

TIE STRAP - heater hose

2шт.
