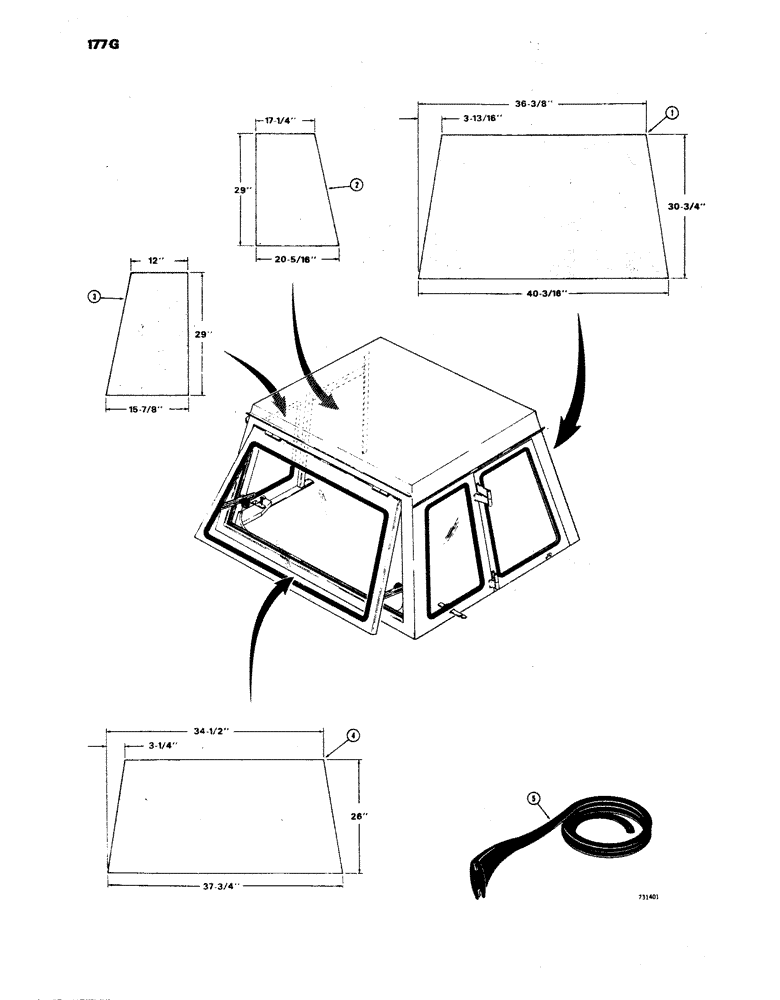

Запчасти Case W24B (177G) - L52736 OPERATORS CAB, GLASS AND MOLDING (09) - CHASSIS

L52736

CAB - operator's, ROPS, Sims 1000 - 0309 (Machinery item) See figure 2 for ordering, Includes: Ref. 1 - 4

1шт.

1

REF

INSTRUCTION

GLASS - windshield

1шт.

2

REF

INSTRUCTION

GLASS - upper door window

2шт.

3

REF

INSTRUCTION

GLASS - side panel window

2шт.

4

REF

INSTRUCTION

GLASS - rear window

1шт.

5

L35717

GASKET

MOLDING MATERIAL - 50 ft. roll

1шт.
