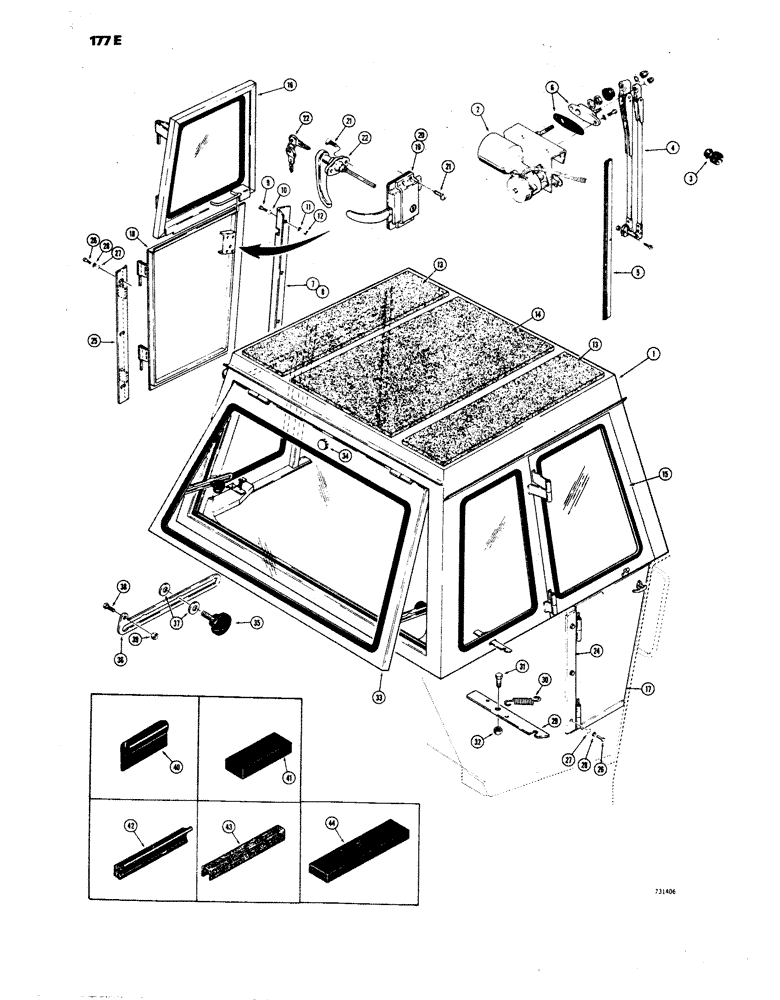

Запчасти Case W24B (177E) - L52736 OPERATORS CAB, DOORS, WINDOWS AND RELATED PARTS (09) - CHASSIS

L52736

CAB - operator's, ROPS, Sims 1000 - 0309 (Machinery item) See page 2 for ordering, Includes: Ref. 1 - 39

1шт.

1

NSS

NOT SOLD SEPARAT

FRAME - cab

1шт.

2

F93455

MOTOR, ELECTRIC

MOTOR - windshield wiper (24 volt). Includes mounting hardware

1шт.

3

L35743

SWITCH

- windshield wiper (Bullet terminals)

1шт.

3

F63532

SWITCH

- windshield wiper (Blade terminals)

1шт.

4

L35260

ARM

ASSEMBLY - windshield wiper

1шт.

5

L35261

BLADE

- windshield wiper

1шт.

6

L35753

ADAPTER

ADAPTOR - double arm wiper (Includes mtg. hardware)

1шт.

7

L35790

STRIKER - door, R.H.

1шт.

8

L35791

STRIKER - door, L.H.

1шт.

9

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

6шт.

10

195-104

WASHER,3/8"

- flat () Zinc plated 3/8"

6шт.

11

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

6шт.

12

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

6шт.

13

L35794

INSULATION - roof, outside

2шт.

14

L35795

INSULATOR

INSULATION - roof, middle

1шт.

15

L35792

DOOR

- upper, R.H.

1шт.

16

L35793

DOOR

- upper, L.H.

1шт.

17

L35796

DOOR - lower, R.H.

1шт.

18

L35797

DOOR

- lower, L.H.

1шт.

19

L35738

LATCH

- door, inside (L.H. door)

1шт.

20

L35737

LATCH

- door, inside (R.H. door)

1шт.

21

187-988

SELF-TAP SCREW,0.19"-16 x 3/4"

SCREW - self tapping (#10 x 3/4")

14шт.

22

T42591

HANDLE

ASSEMBLY - outside, key lock

2шт.

24

L35804

BRACKET - hinge mounting, R.H.

1шт.

25

L35805

BRACKET - hinge mounting, L.H.

1шт.

26

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

6шт.

27

195-104

WASHER,3/8"

- flat () Zinc plated 3/8"

6шт.

28

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

6шт.

29

L35800

LATCH ASSY.

LATCH - door holdback

2шт.

30

L35748

SPRING

- door holdback latch

2шт.

31

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

32

131-52

NUT,3/8"-16, GC

NUT - hex., lock (3/8" - 16 NC) Zinc plated

2шт.

33

L35802

WINDOW FRAME - rear, slideout

1шт.

34

205-28

PLUG - rear window frame

1шт.

35

L30087

KNOB

- window hold out

2шт.

36

T42594

BRACE

ARM - window holdout

2шт.

37

195-104

WASHER,3/8"

- flat () Zinc plated 3/8"

4шт.

38

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

39

86625061

NUT,1/4"-20, GB

NUT - hex., lock (1/4" 0 20 NC) Zinc plated

2шт.

40

L35798

RUBBER

MATERIAL - door bottom (50 ft. roll)

1шт.

41

L35799

RUBBER

MATERIAL - door gasket (50 ft. roll) 3/8" x 5/8"

1шт.

42

L35732

STRIP

WEATHER STRIP MATERIAL - 50 ft. roll

1шт.

43

L35759

WINDLACE MATERIAL - 50 ft. roll

1шт.

44

L35789

RUBBER - cab mounting (50 ft. roll)

1шт.
