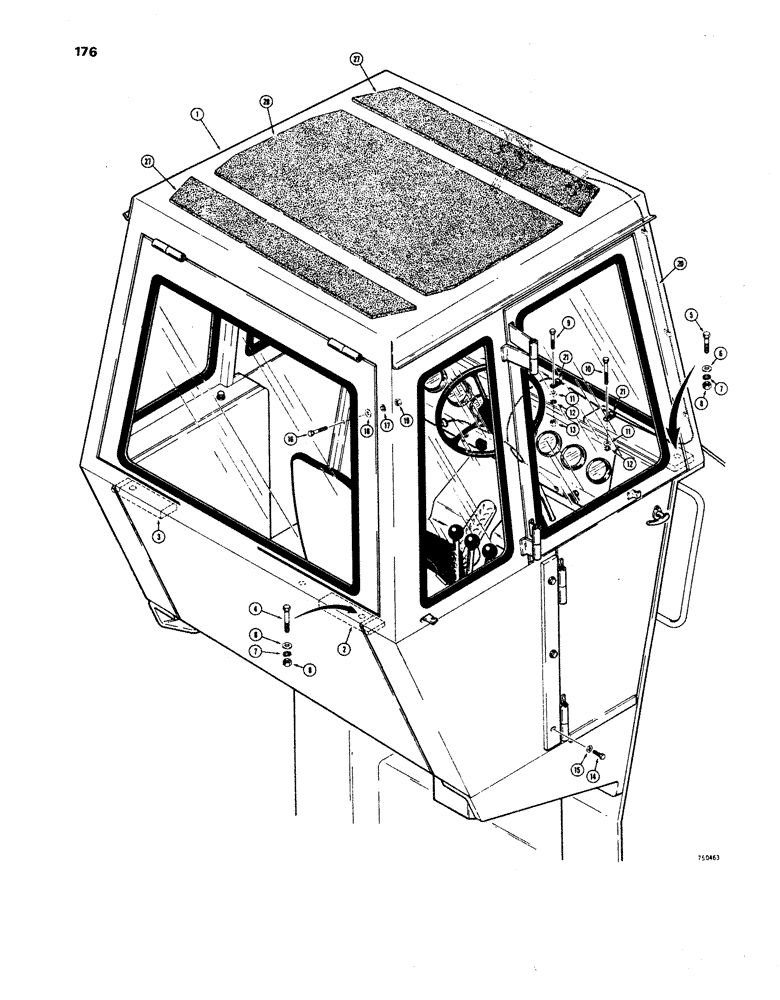

Запчасти Case W24B (176) - ROLL - OVER PROTECTION STRUCTURE AND CAB (09) - CHASSIS

1

L50462

CAB - all weather, Sims 1000-155 (Machinery item) See figure 2 for ordering

1шт.

1

L52735

CANOPY - protection, roll over (Machinery item) Not shown (When ordered for units prior to tractor Sn. 9109249, L50621 and L50622 plates must be ordered separately) See figure 2 for ordering

1шт.

1

L52736

CAB - ROPS, Sims 1000 - 215 (Machinery item) When ordering for units prior to tractor Sn. 9109249, L50621 and L50622 plates must be ordered separately (See figure 2 for ordering)

1шт.

1

L50581

CAB - ROPS, Sims 1000 - 215 (Machinery item) When ordering for units prior to tractor Sn. 9109249, L50621 and L50622 plates must be ordered separately (See figure 2 for ordering)

1шт.

2

L50621

PLATE - reinforcement, canopy mounting (R.H.) Used before tractor Sn. 9109249 only

1шт.

Part of P/N L80547 Reinforcement Kit

1шт.

3

L50622

PLATE - reinforcement, canopy mounting (L.H.) Used before tractor Sn. 9109249 only

1шт.

Part of P/N L80547 Reinforcement Kit

1шт.

4

26-1260

BOLT,Hex, 3/4" - 10 x 3-3/4", Gr 8

HHCS - 3/4" - 10 NC x 3 - 3/4" (Grade 8) Roll - over protection structures only

2шт.

4

26-1232

BOLT,Hex, 3/4" - 10 x 2", Gr 8

L50462 all weather cab only Hex, 3/4"-10 x 2", G8

2шт.

5

26-1248

BOLT,Hex, 3/4" - 10 x 3", Gr 8

Roll - over protection structures only Hex, 3/4"-10 x 3", G8

2шт.

5

13-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

HHCS - 1/2" - 13 NC x 2" (L50462 all weather cab only)

2шт.

5a

95-8

WASHER,1/2"

- flat L50462 all weather cab only 1/2"

2шт.

5b

92-8

LOCK WASHER,1/2"

L50462 all weather cab only 1/2"

2шт.

5c

25-108

NUT,1/2"-13, G5

- hex. (1/2" - 13 NC) L50462 all weather cab only

2шт.

6

95-12

WASHER,3/4"

- standard wrot () 3/4"

2-4шт.

7

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

2-4шт.

8

25-1012

NUT,3/4"-10, G5

2-4шт.

9

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

3шт.

10

13-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5

HHCS - 1/2" - 13 NC x 2 - 1/2"

5шт.

11

95-8

WASHER,1/2"

- standard wrot 1/2"

8шт.

12

92-8

LOCK WASHER,1/2"

8шт.

13

25-108

NUT,1/2"-13, G5

- hex. (1/2" - 13 NC)

3шт.

14

187-1515

SELF-TAP SCREW,1/4" - 20 x 3/4"

SCREW - self - tapping, 1/4" - 20 NC x 5/8" (Door to operator compartment) Cab only

6шт.

15

95-4

WASHER,1/4"

- plain (#10 Gauge)

6шт.

16

13-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

(Cab door stop to operator's compartment) Hex, 1/4"-20 x 1", G5

6шт.

17

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

6шт.

18

95-4

WASHER,1/4"

- plain () 1/4"

6шт.

19

25-104

NUT,1/4"-20, G5

6шт.

20

L50619

HARNESS - wiring, heater and wiper (Cab only)

1шт.

21

49836

CLAMP

- harness (Cab only)

2шт.

22

L52734

WASHER

BLOCK - spacer (2" x 2" x 3/8" thick) Not shown

2шт.

23

13-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

HHCS - 1/2" 13 NC x 1 - 3/4" (L50462 all weather cab only)

5шт.

24

95-8

WASHER,1/2"

flat, L50462 all weather cab only 1/2"

5шт.

25

92-8

LOCK WASHER,1/2"

L50462 all weather cab only 1/2"

5шт.

26

25-108

NUT,1/2"-13, G5

- hex. (1/2" - 13 NC) L50462 all weather cab only

5шт.

27

L35794

HEADLINER - insulation

2шт.

L80547

KIT reinforcement, Includes: Refs. 2 and 3

1шт.
