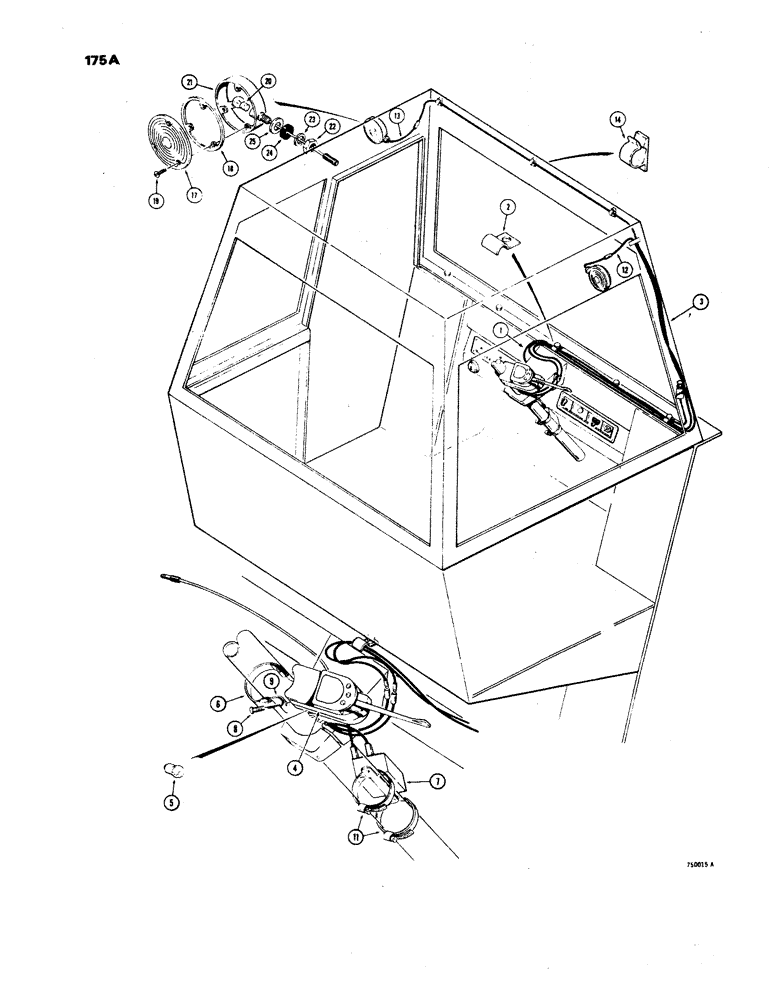

Запчасти Case W24B (175A) - CAB WITH TURN SIGNAL AND FLASHER LIGHTS, USED ON MODELS WITH INSTRUMENT CLUSTER (09) - CHASSIS

1

L50619

HARNESS - wiring, heater and wiper

1шт.

2

49836

CLAMP

- harness

2шт.

3

REF

INSTRUCTION

CAB - operators (See Figure 176 for proper cab)

1шт.

L59394

SIGNAL

KIT - turn and flasher, Includes: Ref. 4 - 9

1шт.

4

NSS

NOT SOLD SEPARAT

SWITCH - turn signal

1шт.

5

A14928

BULB

- direction indicator (24 volt)

1шт.

6

L32658

STRAP

- mounting, signal

1шт.

7

NSS

NOT SOLD SEPARAT

FLASHER - signal

1шт.

L32659

KIT

HARDWARE PACKAGE - mounting, turn signal, Includes: Ref. 8 and 9

1шт.

8

169-148

SCREW,Sl Fil Hd, #8 - 32 x 1"

- flat head machine (#8 - 32 NC x 1)"

2шт.

9

NSS

NOT SOLD SEPARAT

CLIP - strap mounting

2шт.

11

214-258

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

- signal mounting #28, 1.31/2.25 Type F Worm

2шт.

12

L17326

WIRE HARNESS

WIRE ASSEMBLY - signal to flasher (R.H.)

1шт.

13

L17325

WIRE - signal to flasher LH

1шт.

14

L54606

CLIP

CLAMP - wire, stick - on

3шт.

L43738

INTERIOR LIGHT

LIGHT - flasher, double face, Includes: Ref. 17 - 25

2шт.

L32214

LENS

KIT - light, flasher, Includes: Ref. 17 - 19

2шт.

17

NSS

NOT SOLD SEPARAT

LENS - light, flasher

1шт.

18

NSS

NOT SOLD SEPARAT

GASKET - lens

1шт.

19

NSS

NOT SOLD SEPARAT

SCREW - special

3шт.

20

L32257

BULB

- flasher light

1шт.

21

NSS

NOT SOLD SEPARAT

BODY - light, flasher (Double face)

1шт.

22

129-125

NUT,1/2"-20, G5

1шт.

23

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

24

L32256

WASHER

- rubber

1шт.

25

195-105

WASHER,7/16"

- standard wrot (Zinc plated)

1шт.

26

L50658

WIRE - rear windshield wiper (Not shown)

1шт.

L50657

WIPER

ASSEMBLY - rear windshield (Not shown), Includes: Ref. 27 - 29

1шт.

27

NSS

NOT SOLD SEPARAT

MOTOR - wiper, rear windshield (Not shown), Includes: Ref. 28

1шт.

28

T42555

ARM

- rear wiper (Not shown)

1шт.

29

T42556

WINDSHIELD WIPER

BLADE - rear wiper (Not shown)

1шт.

30

L35259

WIPER MOTOR

MOTOR - wiper, front windshield (Not shown)

1шт.

31

L35260

ARM

- front wiper (Not shown)

1шт.

32

L35261

BLADE

- front wiper (Not shown)

1шт.
