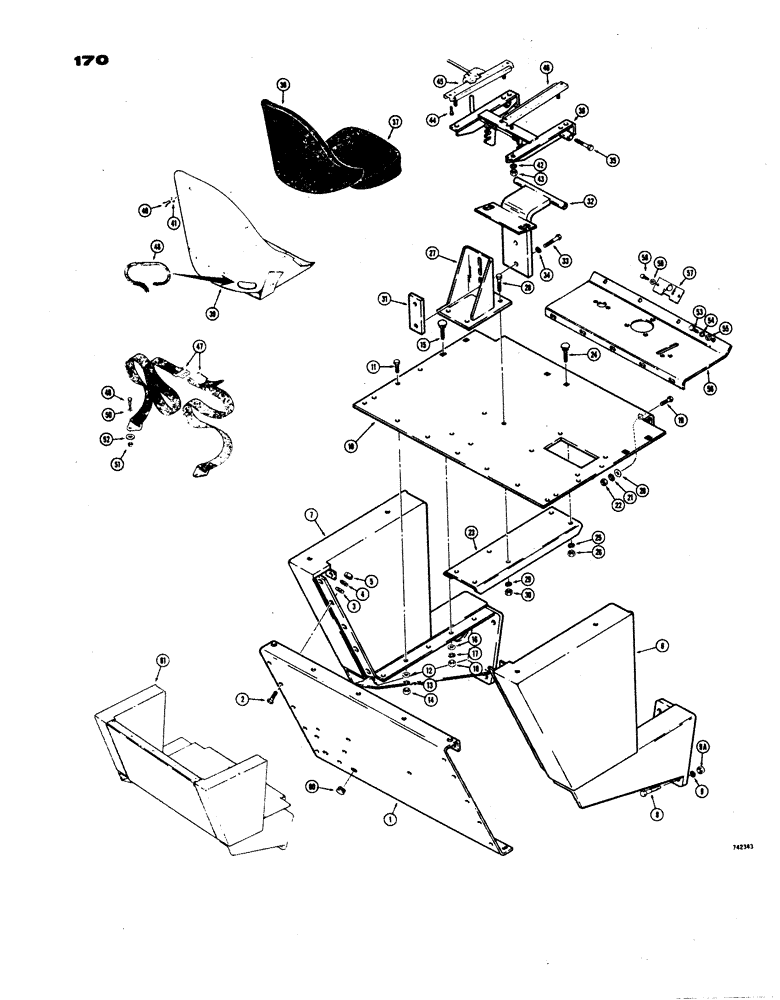

Запчасти Case W24B (170) - OPERATORS COMPARTMENT AND SEAT (09) - CHASSIS

1

L47921

BACK - operator's compartment

1шт.

2

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

12шт.

3

95-6

WASHER,3/8"

- flat () 3/8"

12шт.

4

92-6

LOCK WASHER,3/8"

12шт.

5

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

12шт.

6

L52645

SIDE - operators compartment, R.H. (When stock is exhausted, order L55487 side for service)

1шт.

6

L55487

SIDE - operator's compartment, R.H.

1шт.

7

L47923

SIDE - operator's compartment, L.H. (When stock is exhausted, order L55486 side for service)

1шт.

7

L55486

SIDE - operator's compartment, L.H.

1шт.

8

13-1236

BOLT,Hex, 3/4" - 10 x 2-1/4", Gr 5

8шт.

9

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

8шт.

9a

25-1012

NUT,3/4"-10, G5

8шт.

10

L52295

FLOOR - operator's compartment

1шт.

11

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

13шт.

12

95-5

WASHER,3/8" x 7/8" x .083"

- flat (5/16")

13шт.

13

92-5

LOCK WASHER,5/16"

13шт.

14

9635082

NUT,5/16" - 18, Gr 5

- hex. (5/16" - 18 NC)

13шт.

15

11-516

BOLT,Short NK, 5/16"-18 x 1", G2

CARRIAGE, Short NK, 5/16"-18 x 1", G2

4шт.

16

95-5

WASHER,3/8" x 7/8" x .083"

- flat (5/16")

4шт.

17

92-5

LOCK WASHER,5/16"

4шт.

18

9635082

NUT,5/16" - 18, Gr 5

- hex. (5/16" - 18 NC)

4шт.

19

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

5шт.

20

95-6

WASHER,3/8"

- plain () 3/8"

5шт.

21

92-6

LOCK WASHER,3/8"

5шт.

22

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

5шт.

23

L47911

STIFFENER - floor (Used before tractor Sn. 9115926)

1шт.

23

L53580

STIFFENER - floor (Used tractor Sn. 9115926 and after)

1шт.

24

11-516

BOLT,Short NK, 5/16"-18 x 1", G2

CARRIAGE, Short NK, 5/16"-18 x 1", G2

2шт.

25

92-5

LOCK WASHER,5/16"

2шт.

26

9635082

NUT,5/16" - 18, Gr 5

- hex. (5/16" - 18 NC )

2шт.

27

L48503

PEDESTAL - seat

1шт.

28

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

4шт.

29

92-8

LOCK WASHER,1/2"

4шт.

30

25-108

NUT,1/2"-13, G5

- hex. (1/2" - 13 NC)

4шт.

31

L48484

PLATE - clamp

1шт.

32

L48485

MOUNTING PARTS

MOUNTING - seat

1шт.

33

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

2шт.

34

92-6

LOCK WASHER,3/8"

2шт.

35

13-836

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

HHCS - 1/2" - 13 NC x 2 - 1/4"

2шт.

36

L48573

TILT ADJUSTMENT - seat

1шт.

L52520

SEAT

ASSEMBLY - operator's, Includes: Ref. 37 - 46

1шт.

37

L35270

CUSHION

- seat

1шт.

38

L35271

SEAT CUSHION

CUSHION - backrest

1шт.

39

NSS

NOT SOLD SEPARAT

SHELL - seat

1шт.

40

113-205

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5

7шт.

41

195-525

WASHER,3/8", SAE

- plain (3/8")

7шт.

42

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

6шт.

43

9635082

NUT,5/16" - 18, Gr 5

- hex. (5/16" - 24 NF) Zinc plated

6шт.

44

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

4шт.

45

L35273

ADJUSTER

- slide, seat control (L.H. side)

1шт.

46

L35272

ADJUSTER

- slide, seat (R.H. side)

1шт.

L50040

KIT

- seat belt, 3" webbing, Includes: Ref. 47 - 52

1шт.

47

L48907

BELT

SAFETY BELT

1шт.

48

D35424

LINING

TRIM - sea shell

1шт.

49

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

2шт.

50

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

51

131-70

NUT,1/2"-13, GB

NUT - hex., lock (1/2" - 13 NC)

2шт.

52

DR10768

WASHER

- seat belt

2шт.

53

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

Floor plate mounting Hex, 3/8"-16 x 1", G5, Full Thd

4шт.

54

92-6

LOCK WASHER,3/8"

4шт.

55

95-6

WASHER,3/8"

- standard wrot () 3/8"

8шт.

56

L51685

PLATE - floor, front (Used before tractor Sn. 9115926 on bolt together operator's compartments) When stock is exhausted, order L54688 floor plate for service

1шт.

56

L54688

PLATE - floor, front (Used before tractor Sn. 9115926 on bolt together operator's compartment

1шт.

56

L55541

PLATE - floor, front (Used tractor Sn. 9115926 and after on welded operator's compartments)

1шт.

57

L41568

GROMMET - floor plate

1шт.

58

113-4

BOLT,Hex, 1/4" - 20 x 1", Gr 5

1шт.

59

195-102

WASHER,1/4"

- plain () 1/4"

1шт.

60

353-418

PLUG - snap, 7/16" (If used)

4шт.

60

353-419

PLUG - snap, 9/16" (If used)

2шт.

60

353-420

PLUG - snap 7/8" (If used)

2шт.

61

L55637

COMPARTMENTS - operator's welded (No serviceable compartments) used tractor Sn. 9115926 & after (Used same mounting hardware & related parts as the earlier bolt together compartment, except for floor stiffeners & front floor plates, see ref. No. 23 & 56

1шт.
