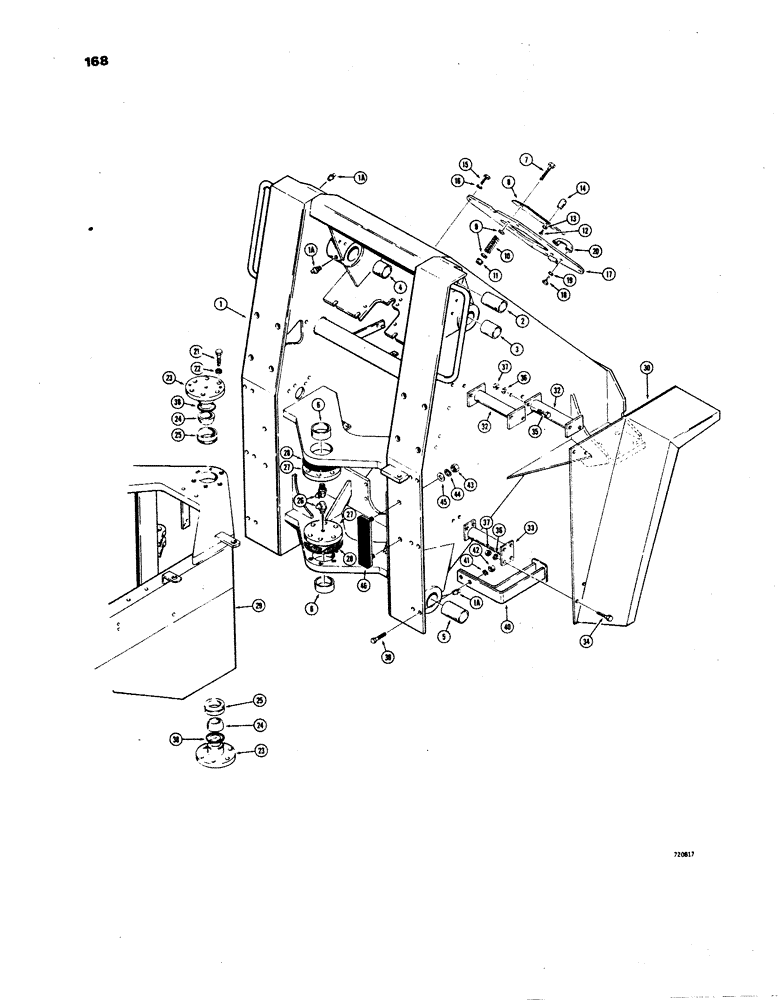

Запчасти Case W24B (168) - FRONT FRAME AND FENDERS, FRONT FRAME AND FENDERS (09) - CHASSIS

L51500

FRONT FRAME ASSEMBLY - articulated loader (Used before tractor Sn. 9115926), Includes: Ref. 1 - 6

1шт.

L55026

FRONT FRAME ASSEMBLY - articulated loader (Used tractor Sn. 9115926 and after on models without instrument cluster), Includes: Ref. 1 - 6

1шт.

L59688

FRONT FRAME ASSEMBLY - articulated loader (Used tractor Sn. 9115929 and after on models with instrument cluster), Includes: Ref. 1 - 6

1шт.

1

NSS

NOT SOLD SEPARAT

FRAME ASSEMBLY - articulated loader

1шт.

1a

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight (1/8" NPT)

6шт.

2

L26673

BUSHING

- tilt cylinder pivot

2шт.

3

L15526

BUSHING

- lift frame pivot, outer

2шт.

4

L15527

BUSHING

- lift frame pivot, inner

2шт.

5

L19473

BUSHING

- lift cylinder pivot

2шт.

6

L17466

BUSHING,100.05mm ID x 112.82mm OD x 37.4mm L

- frame pivot, upper and lower

2шт.

7

13-536

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

(Inspection cover mounting) Hex, 5/16"-18 x 2 1/4", G5

1шт.

8

L15712

COVER

- inspection

1шт.

9

95-5

WASHER,3/8" x 7/8" x .083"

- standard wrot (5/16")

2шт.

10

A26703

SPRING

- cover

1шт.

11

131-4

LOCK NUT,5/16"-18, GB

NUT - hex., lock (5/16" - 18 NC)

1шт.

12

61-612

HEX SOC SCREW,3/8"-16 x 3/4"

SCREW - hex. socket head (3/8" - 16 NC x 3/4") Knob mtg.

1шт.

13

92-6

LOCK WASHER,3/8"

1шт.

14

A14051

GRIP

KNOB - inspection cover

1шт.

15

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

Front cover mounting Hex, 3/8"-16 x 1", G5, Full Thd

4шт.

16

92-6

LOCK WASHER,3/8"

4шт.

17

L15699

COVER - front frame (When stock is exhausted, order L56222 cover for service)

1шт.

17

L56222

COVER

- front frame

1шт.

18

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

(Handle mounting) Hex, 5/16"-18 x 1", G5, Full Thd

2шт.

19

92-5

LOCK WASHER,5/16"

2шт.

20

A23725

HANDLE

- cover

1шт.

21

26-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 8

HHCS - 5/8" - 11 NC x 2" (Spindle mounting)

24шт.

22

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

24шт.

L17468

SPINDLE

ASSEMBLY - frame pivot, Includes: Ref. 23 and 24

2шт.

23

NSS

NOT SOLD SEPARAT

SPINDLE - frame pivot

1шт.

24

L17462

THRUST BEARING

- thrust, inner ring

1шт.

25

L17463

THRUST BEARING

- thrust, outer ring

2шт.

26

219-37

LUBE NIPPLE,45 Degree Elbow, 1/4" - 28 NPTF

FITTING - grease, 45 degree (1/4" NPT)

2шт.

27

L17465

CAP

- thrust plate, splindle

2шт.

28

L17318

SHIM,113.54mm ID x 177.8mm OD x 0.56mm Thk

- thrust bearing pre - load (.0149" thick)

1шт.

28

L17213

SHIM,113.5mm ID x 177.8mm OD x 0.91mm Thk

Thrust bearing pre-load .0359" Thk

1шт.

28

L17212

SHIM,113.5mm ID x 177.8mm OD x 1.52mm Thk

Thrust bearing pre-load .0598" Thk

1шт.

29

REF

INSTRUCTION

FRAME ASSEMBLY - rear (See Figure 156 for related parts).

1шт.

30

L16988

FENDER - front, R.H.

1шт.

31

L16989

FENDER ASSY.

FENDER - front, L.H. (Not illustrated)

1шт.

32

L17070

PIPE

BRACE - fender mounting (Top and center)

4шт.

33

L17215

PIPE CLAMP

BRACE - fender mounting (Bottom)

2шт.

34

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

Fender to brace Hex, 3/8"-16 x 1", G5, Full Thd

12шт.

35

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

HHCS - 3/8" - 16 NC x 1 - 1/2" (Brace to front frame)

12шт.

36

92-6

LOCK WASHER,3/8"

24шт.

37

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

24шт.

38

A30895

O-RING,0.21" Thk x 3.6" ID, -342, Cl 5, 75 Duro

SEAL - "O" ring, thrust bearing at spindle

2шт.

39

13-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

Hex, 1/2"-13 x 2",G5 (Step to chassis)

12шт.

40

L48150

STEP

- access, operator (When stock is exhausted, order L53618 st ep for service)

6шт.

40

L53618

STEP

- access, operator

6шт.

41

92-8

LOCK WASHER,1/2"

12шт.

42

25-108

NUT,1/2"-13, G5

- hex. (1/2" - 13 NC)

12шт.

43

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

4шт.

44

92-6

LOCK WASHER,3/8"

4шт.

45

95-6

WASHER,3/8"

- plain () 3/8"

4шт.

46

L47997

ELASTIC STOP

STOP - front to rear frame

2шт.
