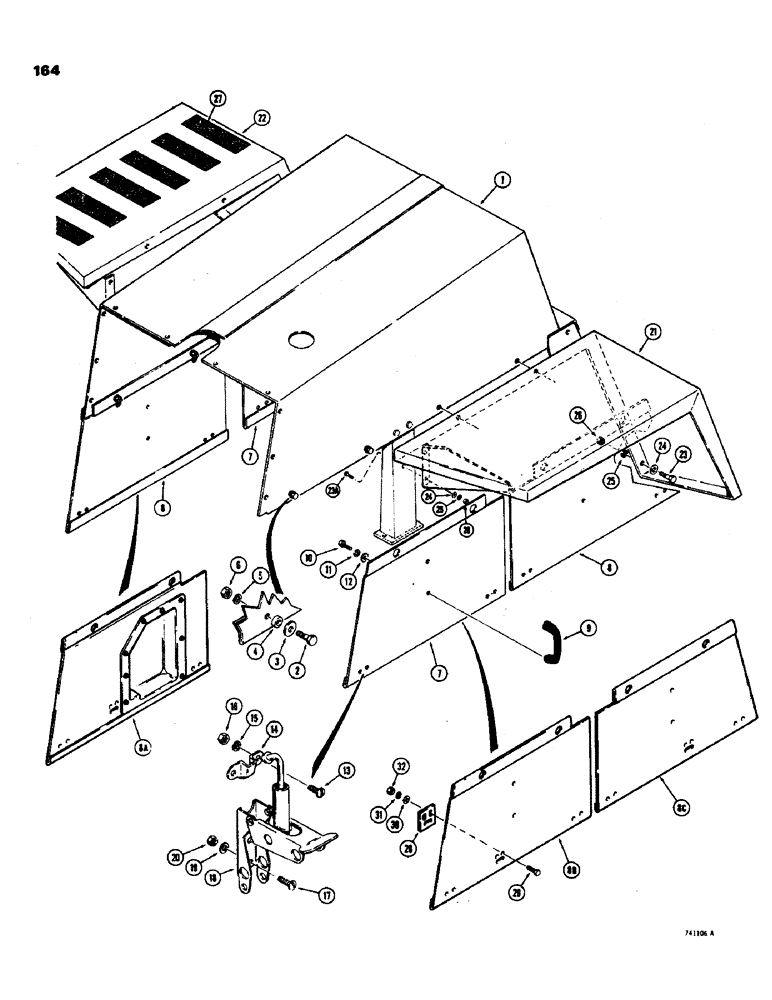

Запчасти Case W24B (164) - REAR FENDERS AND SIDE PANELS, REAR FENDERS AND SIDE PANELS (09) - CHASSIS

1

REF

INSTRUCTION

HOOD - engine (See Figure 162 for related parts)

1шт.

2

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

(Side panel mounting) Hex, 3/8"-16 x 1 1/4", G5, Full Thd

8шт.

3

195-26

WASHER

WASHER - plain (3/8")

8шт.

4

L16674

SLEEVE

- panel support

8шт.

5

92-6

LOCK WASHER,3/8"

8шт.

6

25-106

NUT,3/8"-16, G5

- hex. (3/8" - NC)

8шт.

7

L16572

PANEL

- engine side (R.H. rear, L.H. front) Used on models without lockup parts

2шт.

8

L16573

PANEL

- engine side (L.H. rear, R.H. front) Used on models without lockup parts

2шт.

8a

L71384

PANEL ASSY.

PANEL - engine side, models with air conditioning (L.H. rear)

1шт.

8b

L71419

SUPPORT

PANEL - engine side (R.H. rear, L.H. front) Used on models with l ockup parts or as service replacement for other models ( replaced L71418 )

2шт.

8c

L71418

PANEL

- engine side (L.H. rear, R.H. front) Used on models with l ockup parts or as service replacement for other models ( replaced L71419 )

2шт.

9a

A23725

HANDLE

- engine side panel

4шт.

10

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

(Handle mounting) Hex, 5/16"-18 x 3/4", G5, Full Thd

8шт.

11

92-5

LOCK WASHER,5/16"

8шт.

12

95-5

WASHER,3/8" x 7/8" x .083"

- standard wrot (5/16")

8шт.

13

173-97

SCREW,Sl Rnd Hd, #10 - 24 x 1/2"

- machine, round head (#10 - 24 NC x 1/2")

16шт.

14

A17237

HOOK

CATCH - side panel latch

8шт.

15

92-3

LOCK WASHER,#10

WASHER, LOCK, #10

16шт.

16

129-7

NUT,Hex, #10 - 24

- hex. (#10 - 24 NC)

16шт.

17

173-100

BOLT,Sl Rnd Hd, #10 - 24 x 3/4"

SCREW - machine, round head (#10 - 24 NC x 3/4")

16шт.

18

L10473

LATCH

- engine side shields

8шт.

19

92-3

LOCK WASHER,#10

WASHER, LOCK, #10

16шт.

20

129-7

NUT,Hex, #10 - 24

- hex. (#10 - 24 NC)

16шт.

21

L16962

FENDER

- rear, R.H.

1шт.

22

L16963

FENDER

- rear, L.H.

1шт.

23

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

(Fender to chassis) Hex, 3/8"-16 x 1 1/4", G5, Full Thd

10шт.

23a

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

Fender to post Hex, 3/8"-16 x 1", G5, Full Thd

10шт.

24

195-26

WASHER

WASHER - plain (3/8")

20шт.

25

92-6

LOCK WASHER,3/8"

20шт.

26

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

20шт.

27

A55582

PAD

- non slip

12шт.

28

L48994

PLATE

- lock adjustment

4шт.

29

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

HHCS - 5/16" - 18 NC x 1"

8шт.

30

195-22

WASHER

- plain, 5/16"

8шт.

31

92-5

LOCK WASHER,5/16"

8шт.

32

9635082

NUT,5/16" - 18, Gr 5

- hex., 5/16" - 18 NC

8шт.
