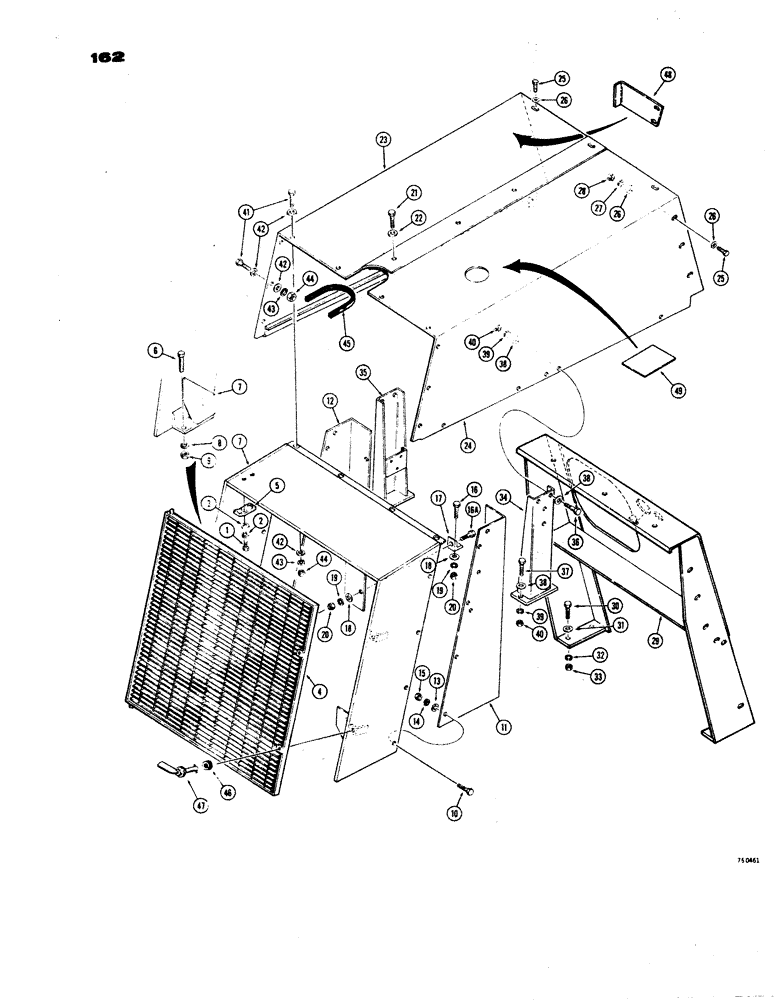

Запчасти Case W24B (162) - GRILLE AND HOOD (09) - CHASSIS

1

13-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

2шт.

2

92-8

LOCK WASHER,1/2"

2шт.

3

95-8

WASHER,1/2"

- plain 1/2"

2шт.

4

L48314

GRILLE

- radiator protecting

1шт.

5

L45084

SUPPORT

- grille, upper

1шт.

6

13-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

HHCS - 1/2" - 13 NC x 1 - 3/4" (Frame mounting)

4шт.

7

L51199

FRAME - grille mounting (Used on models without backup alarm)

1шт.

7

L57515

GUARD ASSY.

FRAME - grille mounting (Used on models with backup alarm)

1шт.

8

92-8

LOCK WASHER,1/2"

4шт.

9

25-108

NUT,1/2"-13, G5

- hex. (1/2" - 13 NC)

4шт.

10

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

(Radiator bracket to grille frame) Hex, 3/8"-16 x 1 1/4", G5, Full Thd

8шт.

11

L16230

BRACKET

- radiator mounting, R.H.

1шт.

12

L16231

BRACKET - radiator mounting, L.H.

1шт.

13

195-26

WASHER

WASHER - plain (3/8")

8шт.

14

92-6

LOCK WASHER,3/8"

8шт.

15

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

8шт.

16

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

16a

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

2шт.

17

L19662

ANGLE

BRACKET - angle type (Radiator bracket to rear frame)

2шт.

18

195-26

WASHER

WASHER - plain (3/8")

4шт.

19

92-6

LOCK WASHER,3/8"

4шт.

20

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

4шт.

21

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

Hood to hood mounting Hex, 3/8"-16 x 3/4", G5, Full Thd

3шт.

22

95-6

WASHER,3/8"

- plain () 3/8"

3шт.

23

NSS

NOT SOLD SEPARAT

HOOD - engine, L.H. (For models with turbocharges also order L57708 air cleaner bracket, ref #48)

1шт.

24

L46702

HOOD - engine, R.H. ( For models with turbocharger also order L59 923 cover plate, ref. #49).

1шт.

25

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

(Hood to front post). Hex, 3/8"-16 x 1 1/4", G5, Full Thd

9шт.

26

95-6

WASHER,3/8"

- plain () 3/8"

15шт.

27

92-6

LOCK WASHER,3/8"

6шт.

28

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC) Hood to side of front post.

6шт.

29

L52562

SUPPORT - hood, front, Serial Range: -9115926

1шт.

29

L59737

SUPPORT - hood, front, Start Serial: 9115926

1шт.

30

13-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

HHCS - 1/2" - 13 NC x 1 - 3/4"

4шт.

31

95-8

WASHER,1/2"

- standard wrot 1/2"

4шт.

32

92-8

LOCK WASHER,1/2"

4шт.

33

25-108

NUT,1/2"-13, G5

- hex. (1/2" - 13 NC)

4шт.

34

L16553

SUPPORT - hood, R.H.

1шт.

35

L18833

SUPPORT - hood, L.H.

1шт.

36

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

(Hood support) Hex, 3/8"-16 x 1 1/4", G5, Full Thd

4шт.

37

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

HHCS - 3/8" - 16 NC x 1 - 1/2" (Hood support to rear frame).

4шт.

38

95-6

WASHER,3/8"

- plain () 3/8"

8шт.

39

92-6

LOCK WASHER,3/8"

8шт.

40

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

8шт.

41

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

(Hood mounting, rear) Hex, 3/8"-16 x 1 1/4", G5, Full Thd

10шт.

42

95-6

WASHER,3/8"

- plain () 3/8"

20шт.

43

92-6

LOCK WASHER,3/8"

10шт.

44

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

10шт.

45

D33534

MOLDING

TRIM - rubber (12 - 1/2" long) Radiator cap access

1шт.

46

L48760

WASHER

- grille retainer

2шт.

47

L48699

RETAINER

- grille (When stock is exhausted, order L55533 retainer for service).

2шт.

47

L55533

RETAINER

- grille

2шт.

48

L57708

BRACKET - air cleaner (Models with turbocharger)

1шт.

49

L59923

PLATE - cover, exhaust pipe hole (Models with turbocharger)

1шт.
