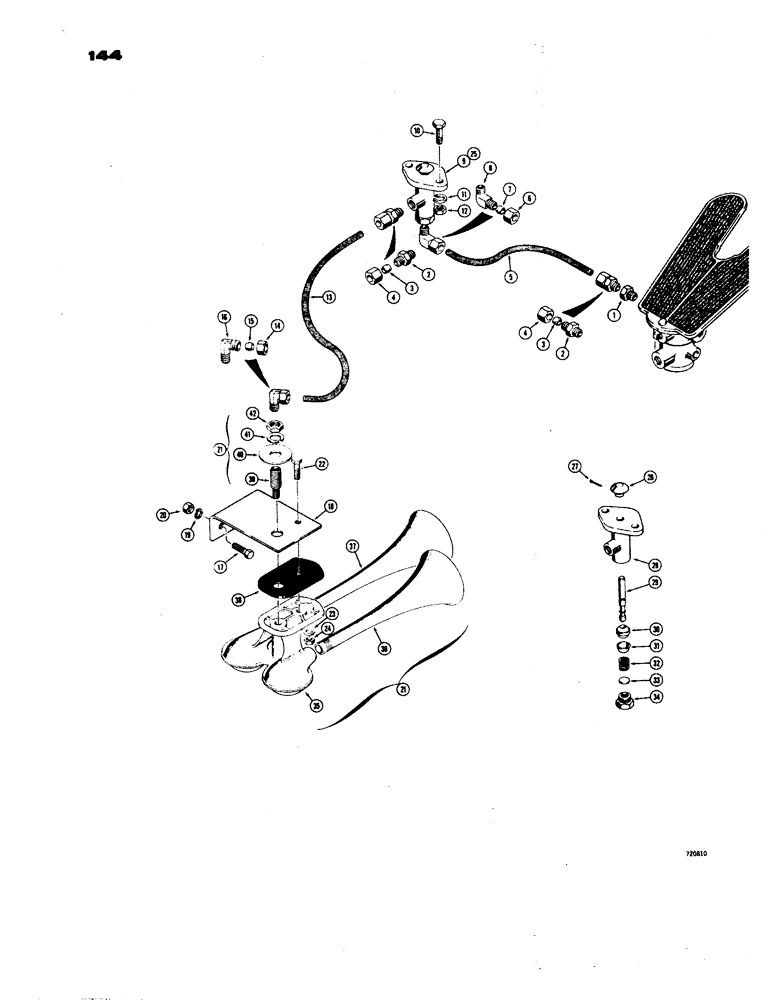

Запчасти Case W24B (144) - HORN AND RELATED PARTS (09) - CHASSIS

1

217-40

REDUCER,1/4"-18 NPTF x 1/8"-27 Fem NPTF

Bushing - hex. 1/4"-18 NPTF x 1/8"-27 Fem NPTF

1шт.

222-5002

HYD CONNECTOR,1/2"-20 x 1/8" NPT, Hi-seal

CONNECTOR ASSEMBLY - straight, 1/4" tube, Includes: Ref. 2 - 4

2шт.

2

NSS

NOT SOLD SEPARAT

CONNECTOR - straight, 1/4" tube

1шт.

3

222-5047

SLEEVE,1/4" Tube

- 1/4" Tube

1шт.

4

222-5060

NUT,1/2"-20

NUT - 1/4" tube

1шт.

5

L16536

TUBE,0.25" OD x 8" L

- to horn valve

1шт.

222-5024

ELBOW,90 Degree, 1/2"-20 x 1/4" NPT, Hi-seal

ASSEMBLY - 90 degree, 1/4" tube, Includes: Ref. 6 - 8

1шт.

6

222-5060

NUT,1/2"-20

NUT - 1/4" tube

1шт.

7

222-5047

SLEEVE,1/4" Tube

- 1/4" Tube

1шт.

8

NSS

NOT SOLD SEPARAT

ELBOW - 90 degree, 1/4" tube

1шт.

9

L12647

VALVE

- horn, air (See parts listed below)

1шт.

10

13-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

(Valve to floor plate) Hex, 1/4"-20 x 1", G5

2шт.

11

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

12

25-104

NUT,1/4"-20, G5

2шт.

13

L52494

TUBE,0.25" OD x 33" L

- valve to horn

1шт.

222-5023

ELBOW,90º, 1/2"-20 x 1/8" NPT, Hi-seal

ASSEMBLY - 90 degree, 1/4" tube, Includes: Ref. 14 - 16

1шт.

14

222-5060

NUT,1/2"-20

NUT - 1/4" tube

1шт.

15

222-5047

SLEEVE,1/4" Tube

- 1/4" Tube

1шт.

16

NSS

NOT SOLD SEPARAT

ELBOW - 90 degree, 1/4" tube

1шт.

17

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

HHCS - 3/8" - 16 NC x 1 - 1/2"

2шт.

18

L48196

BRACKET

- horn mounting

1шт.

19

92-6

LOCK WASHER,3/8"

2шт.

20

25-106

NUT,3/8"-16, G5

- hex (3/8" - 16 NC)

2шт.

21

L50225

HORN

- air type (See parts listed below)

1шт.

22

13-420

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

(Horn mounting) Hex, 1/4"-20 x 1 1/4", G5

1шт.

23

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

24

25-104

NUT,1/4"-20, G5

1шт.

25

L12647

VALVE

- horn, air, L12647, Includes: Ref. 26 - 34

1шт.

26

L31359

BUTTON - valve, L12647 horn

1шт.

27

132-26

COTTER PIN

Pin, Split (Cotter), 3/32" x 3/4", L12647 horn valve

1шт.

28

NSS

NOT SOLD SEPARAT

BODY - valve, L12647 horn

1шт.

29

L31354

VALVE

STEM - valve, L12647 horn

1шт.

30

L31354

VALVE

- inlet, L12647 horn

1шт.

31

L31355

SEAT

- valve, L12647 horn

1шт.

32

L35089

SPRING

- valve, L12647 horn

1шт.

33

L31357

PLATE

- spring, L12647 horn valve

1шт.

34

L31358

PLUG

CAP - valve, L12647 horn

1шт.

L50225

HORN

ASSEMBLY - air, L50225, Includes: Ref. 35 - 42

1шт.

35

NSS

NOT SOLD SEPARAT

MOTOR AND BODY - horn, L50225

1шт.

36

L33784

HORN

- high pitch (10 - 3/4" long), L50225

1шт.

37

L33785

HORN

- low pitch (13 - 1/3" long), L50225

1шт.

L33786

KIT

- horn mounting, L50225, Includes: Ref. 38 - 42

1шт.

38

NSS

NOT SOLD SEPARAT

PAD - mounting, L50225 horn

1шт.

39

NSS

NOT SOLD SEPARAT

ADAPTER - air line to horn, L50225

1шт.

40

NSS

NOT SOLD SEPARAT

WASHER - special, L50225 horn

1шт.

41

NSS

NOT SOLD SEPARAT

WASHER - lock, L50225 horn

1шт.

42

NSS

NOT SOLD SEPARAT

NUT - hex., L50225 horn

1шт.
