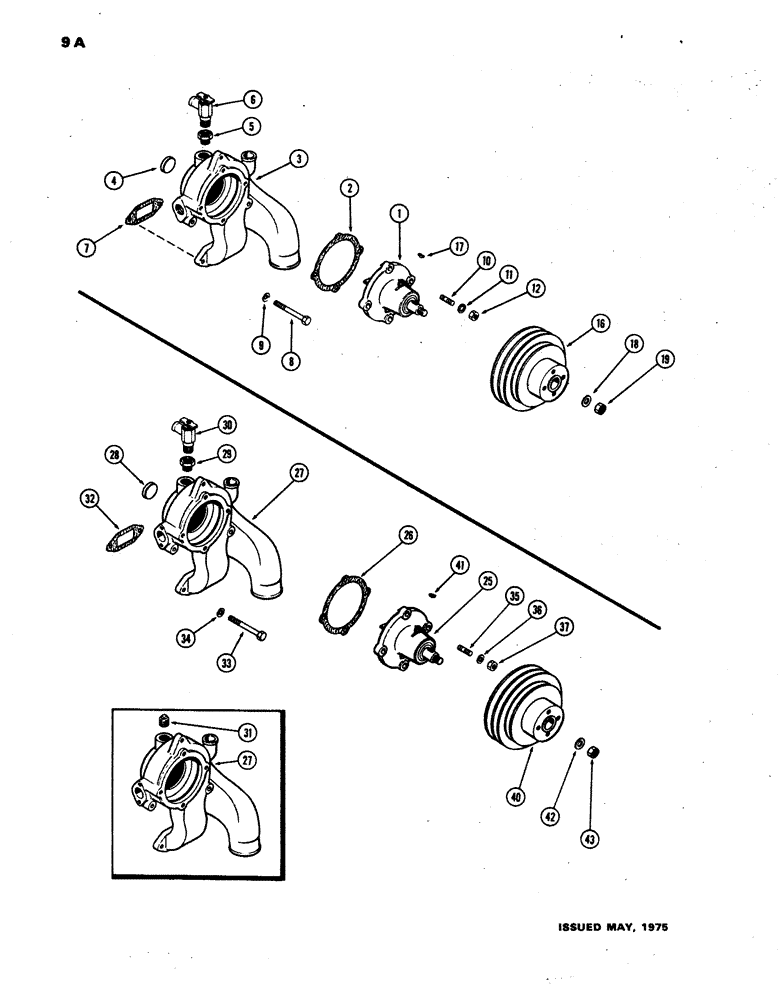

Запчасти Case W24B (009A) - WATER PUMP, (504BD) DIESEL ENGINE, USED WITH SMALL CRANKSHAFT 1ST USED ENG. SN.2572011, (02) - ENGINE
№
Артикул
Название
Примечание
Количество
1
A62974
PUMP
PUMP ASSY. - water
1шт.
1
1342818C1R
REMAN-WATER PUMP
Remanufactured Water Pump
1шт.
1
A48335
CORE-WATER PUMP
Return Part Number, Water Pump
1шт.
2
A58646
GASKET
GASKET -, Serial Range: pump-body
1шт.
3
A136441
HOUSING
BODY ASSY. - water pump, Includes: Ref. 4
1шт.
4
A58568
PLUG,Cup, 1 3/8", Stainless
PLUG - (1-3/8" cup type)
1шт.
5
221-1089
REDUCER,Hex, 1/2" x 3/8" NPT
BUSHING - reducing (1/2" P.T. to 3/8" P.T.)
1шт.
9
A66821
VALVE
VALVE - water shut-off
1шт.
7
A58649
GASKET
GASKET -, Serial Range: body-block
1шт.
8
13-618
BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5
BOLT, , Body to block Hex, 3/8"-16 x 1 1/8", G5, Full Thd
2шт.
8
13-660
BOLT,Hex, 3/8" - 16 x 3-3/4", Gr 5
BOLT - body to block (3/8 x 3-3/4" N.C. hex.)
2шт.
9
92-6
LOCK WASHER,3/8"
LOCK WASHER, 3/8"
4шт.
10
A62234
STUD
STUD - pump to body (3/8" N.C. x 1-5/16" )
4шт.
11
193-30
LOCK WASHER,Int Tooth, 3/8"
WASHER, LOCK, Int Tooth, 3/8"
4шт.
12
25-146
JAM NUT,Jam, 3/8"-16, G5
NUT - 3/8" N.C. hex. jam
4шт.
16
A58650
PULLEY
PULLEY - water pump
1шт.
17
126-116
WOODRUFF KEY,#9, 3/16" x 3/4", HT
WOODRUFF KEY, , Pulley #9, 3/16" x 3/4", HT
1шт.
18
A58651
WASHER
WASHER - pulley (1/2 x 1-1/16 x 1/16")
1шт.
19
131-1106
LOCK NUT,1/2"-20, GB
NUT, LOCK, , Pulley 1/2"-20, GB
1шт.
25
A62974
PUMP
PUMP ASSY. - water, with large crankshaft, used prior to engine ser. no. 2572011
1шт.
26
A58646
GASKET
GASKET - pump to body, with large crankshaft, used prior to engine ser. no. 2572011
1шт.
27
A58856
HOUSING
BODY ASSY. - water pump, with large crankshaft, used prior to engine ser. no. 2572011, Includes: Ref. 28
1шт.
28
A58568
PLUG,Cup, 1 3/8", Stainless
PLUG - (1-3/8" cup type), with large crankshaft, used prior to engine ser. no. 2572011
1шт.
29
221-1089
REDUCER,Hex, 1/2" x 3/8" NPT
BUSHING - reducing (1/2" P.T. to 3/8" P.T.), with large crankshaft, used prior to engine ser. no. 2572011
1шт.
30
A66821
VALVE
VALVE - water shut-off, with large crankshaft, used prior to engine ser. no. 2572011
1шт.
31
221-4
DRAIN PLUG,Sq Hd, 1/2"-14 NPTF
PLUG - (1/2" P.T., sq. hd.)(used in place of water shut-off valve on some models), with large crankshaft, used prior to engine ser. no. 2572011
1шт.
32
A58649
GASKET
GASKET - body to block, with large crankshaft, used prior to engine ser. no. 2572011
1шт.
33
13-618
BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5
BOLT, , Body to block, with large crankshaft, used prior to engine S/N 2572011 Hex, 3/8"-16 x 1 1/8", G5, Full Thd
2шт.
33
13-660
BOLT,Hex, 3/8" - 16 x 3-3/4", Gr 5
BOLT - body to block (3/8 x 3-3/4" N.C. hex.), with large crankshaft, used prior to engine ser. no. 2572011
2шт.
34
92-6
LOCK WASHER,3/8"
LOCK WASHER, , with large crankshaft, used prior to engine ser. no. 2572011 3/8"
4шт.
35
A62234
STUD
STUD - pump to body (3/8" N.C. x 1-5/16"), with large crankshaft, used prior to engine ser. no. 2572011
4шт.
36
193-30
LOCK WASHER,Int Tooth, 3/8"
WASHER, LOCK, , w/ large crankshaft, used prior to engine S/N 2572011 Int Tooth, 3/8"
4шт.
37
25-146
JAM NUT,Jam, 3/8"-16, G5
NUT - 3/8" N.C. hex., jam, with large crankshaft, used prior to engine ser. no. 2572011
4шт.
40
A58650
PULLEY
PULLEY - water pump, with large crankshaft, used prior to engine ser. no. 2572011
1шт.
41
126-116
WOODRUFF KEY,#9, 3/16" x 3/4", HT
WOODRUFF KEY, , Pulley, with large crankshaft, used prior to engine S/N 2572011 #9, 3/16" x 3/4", HT
1шт.
42
A58651
WASHER
WASHER - pulley (1/2 x 1-1/16 x 1/16"), with large crankshaft, used prior to engine ser. no. 2572011
1шт.
43
131-1106
LOCK NUT,1/2"-20, GB
NUT, LOCK, , Pulley, with large crankshaft, used prior to engine S/N 2572011 1/2"-20, GB
1шт.
Выбрано товаров: 37
