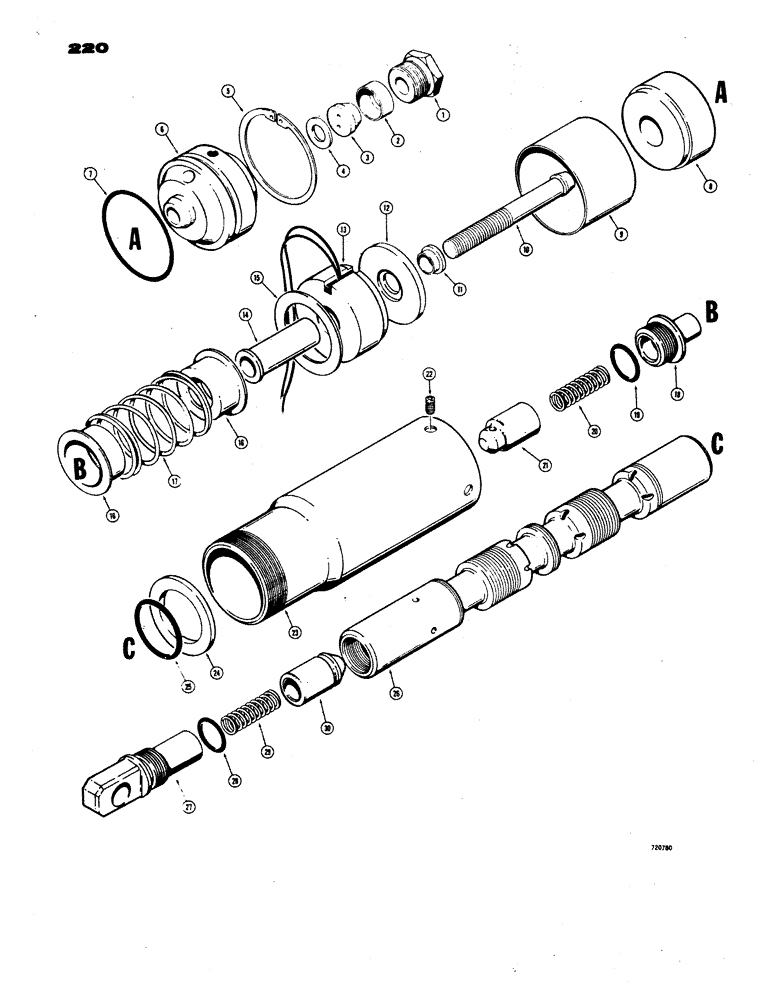

Запчасти Case W24B (220) - L51805, L58355, L51863 AND L58354, LOADER CONTROL VALVE L35317 TILT SPOOL (08) - HYDRAULICS

L35317

SPOOL ASSEMBLY - valve, tilt, Includes: Ref. 1 - 30

1шт.

1

L33773

PLUG

- seal access

1шт.

2

L33772

RING

CLAMP - ring, magnetic detent seal

1шт.

3

L33771

SEAL

- magnetic detent lead

1шт.

4

L33770

WASHER

- seal

1шт.

5

L33769

SNAP RING,#187, 1.960", Int, Spiral

RING - retaining, end plug

1шт.

6

L33768

PLUG

- spool end

1шт.

7

A15528

O-RING,0.103" Thk x 1.674" ID, -131, Cl 5, 75 Duro

SEAL - "O" ring, plug

1шт.

8

L33767

BUSHING

SPACER - dummy coil, magnetic detent

1шт.

9

L33766

SPACER

- coil

1шт.

10

L35331

SCREW,3/8" - 16 x 2 1/2", Gr 5

- special, magnetic detent

1шт.

11

L33764

SPACER

- magnetic detent

1шт.

12

L35330

WASHER

- special, clapper

1шт.

13

L33762

COIL

AND HOLDER ASSEMBLY - magnetic detent

1шт.

14

L35329

TUBE

SPACER TUBE - magnetic detent

1шт.

15

L33761

WASHER

- special, coil shim

1шт.

16

A13164

RETAINER,13.49mm ID x 37.31mm OD

SEAT - spring

2шт.

17

A33758

SPRING - centering

1шт.

18

L35328

PLUG

- spool end, internal

1шт.

20

L35327

SPRING

- restrictor, internal spool end

1шт.

21

L35326

VALVE POPPET

POPPET - restrictor, internal spool end

1шт.

22

178-415

SET SCREW,Hdls Hex Skt, #10 - 24 x 3/8", Flat Pt

SCREW - set, hex. socket headless (#10 - 24 NC x 3/8")

1шт.

23

L33759

HOUSING

- magnetic detent

1шт.

24

L32604

RETAINER,1.007" ID x 1.672" OD x 0.187"

RETAINER - "O" ring

1шт.

25

A13184

O-RING,0.103" Thk x 0.987" ID, -120, Cl 5, 75 Duro

SEAL - "O" ring

1шт.

26

NSS

NOT SOLD SEPARAT

SPOOL - valve, tilt

1шт.

27

L35335

EYE

- spool

1шт.

29

L35324

SPRING

- make up, spool eye end

1шт.

30

L35325

SPOOL

POPPET - make up, spool eye end

1шт.

19

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

SEAL - "O" ring, plug

1шт.

28

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

SEAL - "O" ring, plug

1шт.
