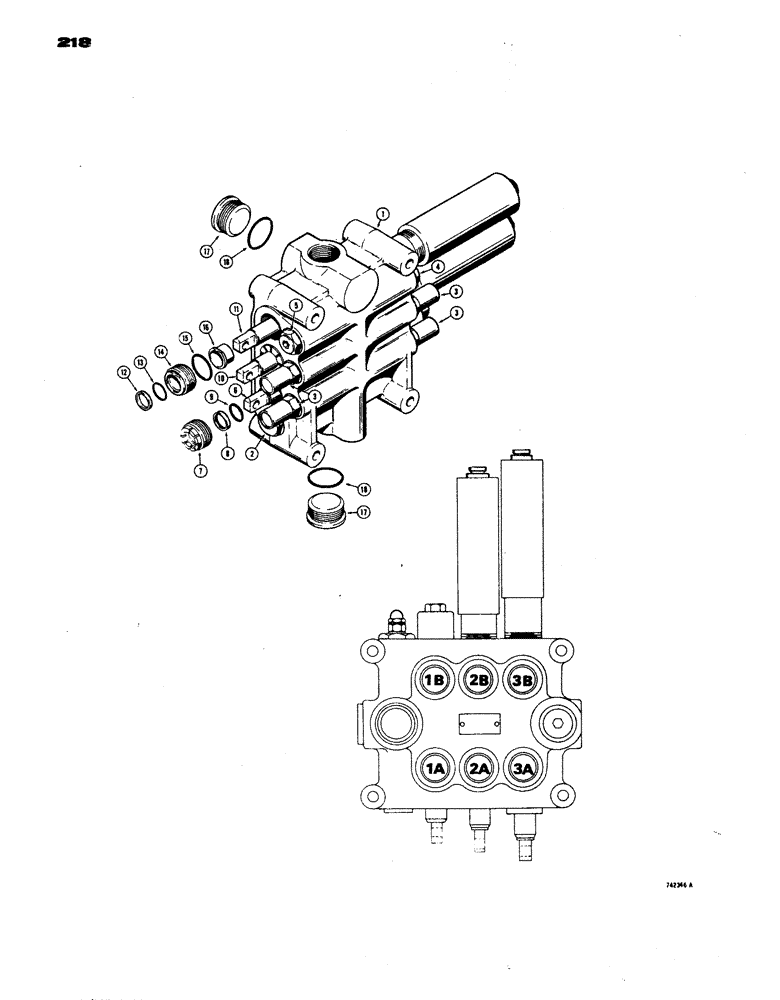

Запчасти Case W24B (218) - LOADER CONTROL VALVE (3 SPOOL) (08) - HYDRAULICS

L51863

VALVE

- loader control, 3 spool (Models without instrument cluster) For service order L58354 valve, Includes: Ref. 1 - 18

1шт.

L58354

VALVE

- hydraulic control, 3 spool (Models with instrument cluster), Includes: Ref. 1 - 18

1шт.

L70433

VALVE

- hydraulic control, 3 spool (Models with instrument cluster), Includes: Ref. 1 - 18

1шт.

L71422

VALVE

- hydraulic control, 3 spool (Models with instrument cluster), Includes: Ref. 1 - 18

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING - valve

1шт.

2

NSS

NOT SOLD SEPARAT

VALVE - main relief (Parts list Figure 222)

1шт.

3

L35319

VALVE

- secondary relief (Used in ports 1A, 1B, 2A, and 2B in L57863 and L58354 valves) Parts list Figure 226

4шт.

3

L32633

VALVE

- secondary relief (Used in ports 1A, 1B, 2A and 2B in L70433 valve and in ports 1A,1B and 2B in L71422 valve) Parts list Figure 227A

3-4шт.

3

L33429

VALVE

- secondary relief (Used in port 2A in L71422 valve) Parts list Figure 227A

1шт.

4

L35320

VALVE

- check (Used in port 3B) Parts list Figure 226

1шт.

5

L35321

VALVE

- check, regeneration (Used in port 3A) Parts list Figure 226

1шт.

6

L32592

SPOOL

- valve, clam (Used in L51863, L58354 and L70433) Parts list Figure 222

1шт.

6

L33751

SPOOL

- valve, clam (Used in L71422 valve) Parts list Figure 223A

1шт.

NSS

NOT SOLD SEPARAT

SEAL ASSEMBLY - tilt and clam spool, Includes: Ref. 7 - 9

2шт.

7

L32608

RETAINER

AND WIPER - spool

1шт.

8

L32604

RETAINER,1.007" ID x 1.672" OD x 0.187"

RETAINER - seal

1шт.

9

A13184

O-RING,0.103" Thk x 0.987" ID, -120, Cl 5, 75 Duro

SEAL - "O" ring, seal

1шт.

10

L35317

SPOOL - valve, tilt (L51863 and L58354 valves) Parts list Figure 220

1шт.

10

D63369

SPOOL

- valve, tilt (Parts list Figure 221A) Used in L70433 and L71422

1шт.

11

L35318

DETENT

SPOOL - valve, lift (L51863 and L58354 valves) Parts list Figure 224

1шт.

11

D71227

SPOOL

- valve, lift (Parts list Figure 225C) Used in L70433 valve

1шт.

11

D63370

SPOOL

- valve, lift (Parts list Figure 225A) Used in L71422 valve

1шт.

NSS

NOT SOLD SEPARAT

SEAL ASSEMBLY - lift spool, Includes: Ref. 12 - 16

1шт.

12

A28211

OIL SEAL

WIPER - spool

1шт.

13

A13184

O-RING,0.103" Thk x 0.987" ID, -120, Cl 5, 75 Duro

SEAL - "O" ring, small

1шт.

14

L32612

RETAINER

- seal

1шт.

15

L32613

O-RING

SEAL - "O" ring, large

1шт.

16

L32611

SLEEVE

- spool

1шт.

17

218-5215

PLUG,Hex Soc, 1 5/8"-12 ORB

- pipe, hex. socket head, Includes: Ref. 18

2шт.

18

218-5011

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

SEAL - "O" ring

1шт.
