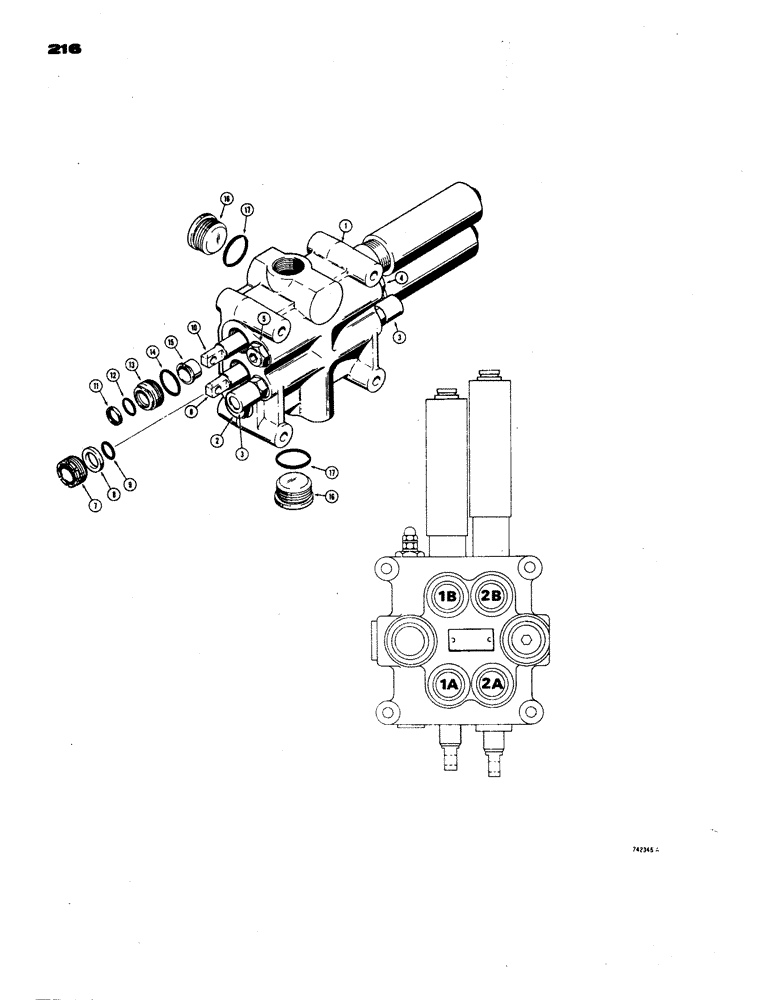

Запчасти Case W24B (216) - LOADER CONTROL VALVE (2 SPOOL) (08) - HYDRAULICS

L51805

VALVE

- loader control, 2 spool (Models without instrument cluster) For service order L58355 valve, Includes: Ref. 1 and 2

1шт.

L58355

VALVE

- hydraulic control, 2 spool (Models without instrument cluster), Includes: Ref. 1 and 2

1шт.

L70432

CONTROL VALVE

VALVE - hydraulic control, 2 spool (Models with instrument cluster), Includes: Ref. 1 and 2

1шт.

L70410

SPOOL

VALVE - hydraulic, 2 spool (Models with instrument cluster), Includes: Ref. 1 and 2

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING - valve

1шт.

2

NSS

NOT SOLD SEPARAT

VALVE - main relief (Parts list Figure 222)

1шт.

3

L35319

VALVE

- secondary relief (Used at ports 1A and 1B in all valves except L70410, Used in port 1B in L70410) Parts list Figure 226

1-2шт.

3

L35386

VALVE

- secondary relief (Port 1A in L70410 valve) Parts list Figure 226

1шт.

4

L35320

VALVE

- check (Used at port 2B) Parts list Figure 226

1шт.

5

L35321

VALVE

- check, regeneration (Used at port 2A) Parts list Figure 226

1шт.

6

L35317

SPOOL - valve, tilt (L51805 and L58355 valves) Parts list Figure 220

1шт.

6

D71226

SPOOL

- valve, tilt (L70432 valve) Parts list Figure 221C

1шт.

6

D63369

SPOOL

SPPOL - valve, tilt (L70410 valve) Parts list Figure 221A

1шт.

NSS

NOT SOLD SEPARAT

SEAL ASSEMBLY - tilt spool, Includes: Ref. 7 - 9

1шт.

7

L32608

RETAINER

AND WIPER - spool

1шт.

8

L32604

RETAINER,1.007" ID x 1.672" OD x 0.187"

RETAINER - seal

1шт.

9

A13184

O-RING,0.103" Thk x 0.987" ID, -120, Cl 5, 75 Duro

SEAL - "O" ring, special

1шт.

10

L35318

DETENT

SPOOL - valve, lift (L51805 and L58355 valves) Parts list Figure 224

1шт.

10

D71227

SPOOL

- valve, lift (L70432 valve) Parts list Figure 225C

1шт.

10

D63370

SPOOL

- valve, lift (L70410 valve) Parts list Figure 225A

1шт.

NSS

NOT SOLD SEPARAT

SEAL ASSEMBLY - lift spool, Includes: Ref. 11 - 15

1шт.

11

A28211

OIL SEAL

WIPER - spool

1шт.

12

A13184

O-RING,0.103" Thk x 0.987" ID, -120, Cl 5, 75 Duro

SEAL - "O" ring, small

1шт.

13

L32612

RETAINER

- seal

1шт.

14

L32613

O-RING

SEAL - "O" ring, large

1шт.

15

L32611

SLEEVE

- spool

1шт.

16

218-5215

PLUG,Hex Soc, 1 5/8"-12 ORB

- pipe, hex. socket head, Includes: Ref. 17

2шт.

17

218-5011

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

SEAL - "O" ring

1шт.
