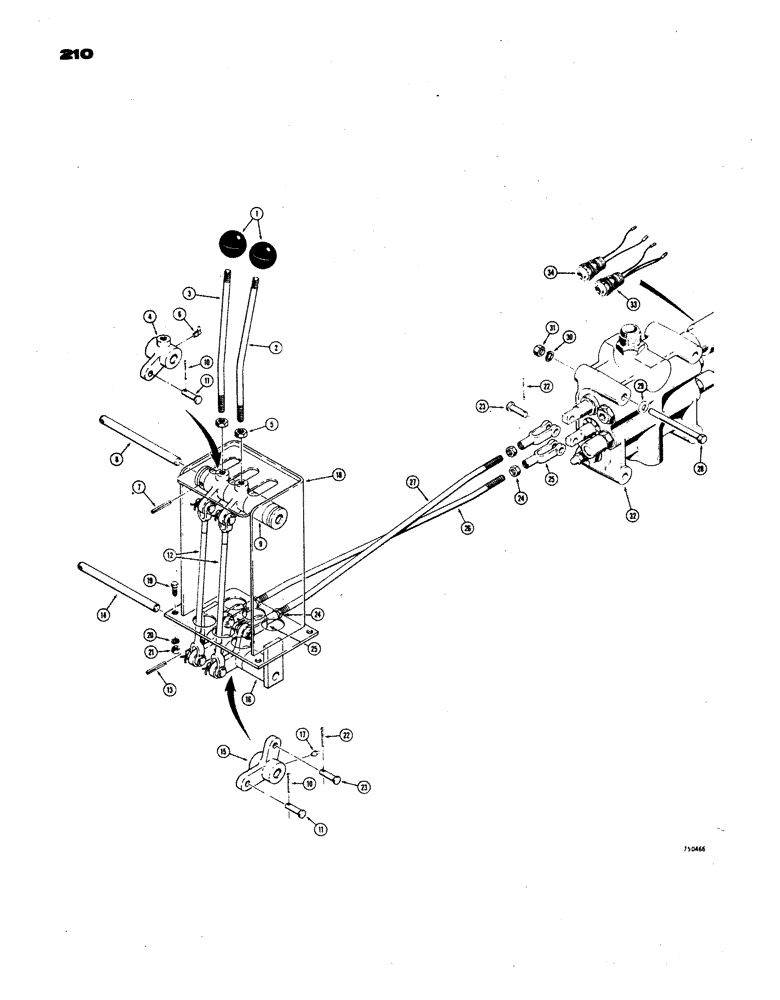

Запчасти Case W24B (210) - LOADER CONTROL VALVE AND LEVER, (2 SPOOL) (08) - HYDRAULICS

1

A23885

KNOB

- control lever

2шт.

2

L51853

LEVER

- lift control

1шт.

3

L51854

LEVER

- bucket control

1шт.

4

L51830

LEVER

BELLCRANK - upper

2шт.

5

25-148

JAM NUT,Jam, 1/2"-13, G5

- hex, jam (1/2"-13 NC)

2шт.

6

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, 90º, 1/8" NPT x .84" lg

2шт.

7

138-67

LOCK PIN,1/8" x 1 3/4", Slotted

Pin, 1/8" x 1 3/4", Slotted

1шт.

8

L47816

SHAFT

- lever pivot

1шт.

9

L55379

BUSHING,19.05mm ID x 26.9mm OD x 54mm L

SPACER - pivot shaft

1шт.

10

132-48

COTTER PIN,1/8" x 1"

Pin, Split (Cotter), 1/8" x 1"

4шт.

11

141-6

CLEVIS PIN,1/2" x 1.360"

PIN - clevis, 1/2"

4шт.

12

L47998

ROD

- connecting

2шт.

13

138-67

LOCK PIN,1/8" x 1 3/4", Slotted

Pin, 1/8" x 1 3/4", Slotted

1шт.

14

L47816

SHAFT

- bellcrank, pivot

1шт.

15

L51047

DIPPER

BELLCRANK - lower

2шт.

16

L55379

BUSHING,19.05mm ID x 26.9mm OD x 54mm L

SPACER - pivot, shaft

1шт.

17

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight (1/8" NPT)

2шт.

18

L52359

CONSOLE

- control (When stock is exhausted, order L54716 console for service)

1шт.

18

L54716

CONSOLE

- control

1шт.

19

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

4шт.

20

92-6

LOCK WASHER,3/8"

4шт.

21

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

4шт.

22

132-48

COTTER PIN,1/8" x 1"

Pin, Split (Cotter), 1/8" x 1"

4шт.

23

141-6

CLEVIS PIN,1/2" x 1.360"

PIN - clevis, 1/2"

4шт.

24

25-158

JAM NUT,Jam, 1/2"-20, G5

- hex., jam (1/2" - 13 NC)

4шт.

25

213-6

ADJUSTABLE CLEVIS,1/2"-20 x 3"

CLEVIS - connecting link

4шт.

26

L52364

ROD

- connecting, bucket control

1шт.

27

L52367

ROD

- connecting, loader lift control

1шт.

28

13-888

BOLT,Hex, 1/2" - 13 x 5-1/2", Gr 5

3шт.

29

95-8

WASHER,1/2"

- standard wrot 1/2"

3шт.

30

92-8

LOCK WASHER,1/2"

3шт.

31

25-108

NUT,1/2"-13, G5

- hex. (1/2" - 13 NC)

3шт.

32

L51805

VALVE

- control, models without instrument cluster (Parts list Figure 216) For service order L58355 valve

1шт.

May be serviced with L70410 valve assembly, L70848 connector and L70849 connector, references 32, 33 and 34.

1шт.

32

L58355

VALVE

- control, models without instrument cluster (Parts list Figure 216)

1шт.

May be serviced with L70410 valve assembly, L70848 connector and L70849 connector, references 32, 33 and 34.

1шт.

32

L70432

CONTROL VALVE

VALVE - hydraulic control, 2 spool (Parts list Figure 216) To be us ed on units equipped with instrument panel cluster

1шт.

32

L70410

SPOOL

VALVE - hydraulic control, 2 spool (Parts list Figure 216) Used on units with instrument cluster

1шт.

33

L70848

CONNECTOR, ELEC

CONNECTOR - amphenol, If used (Lift spool)

1шт.

34

L70849

CONNECTOR, ELEC

CONNECTOR - amphenol, If used (Tilt spool)

1шт.
