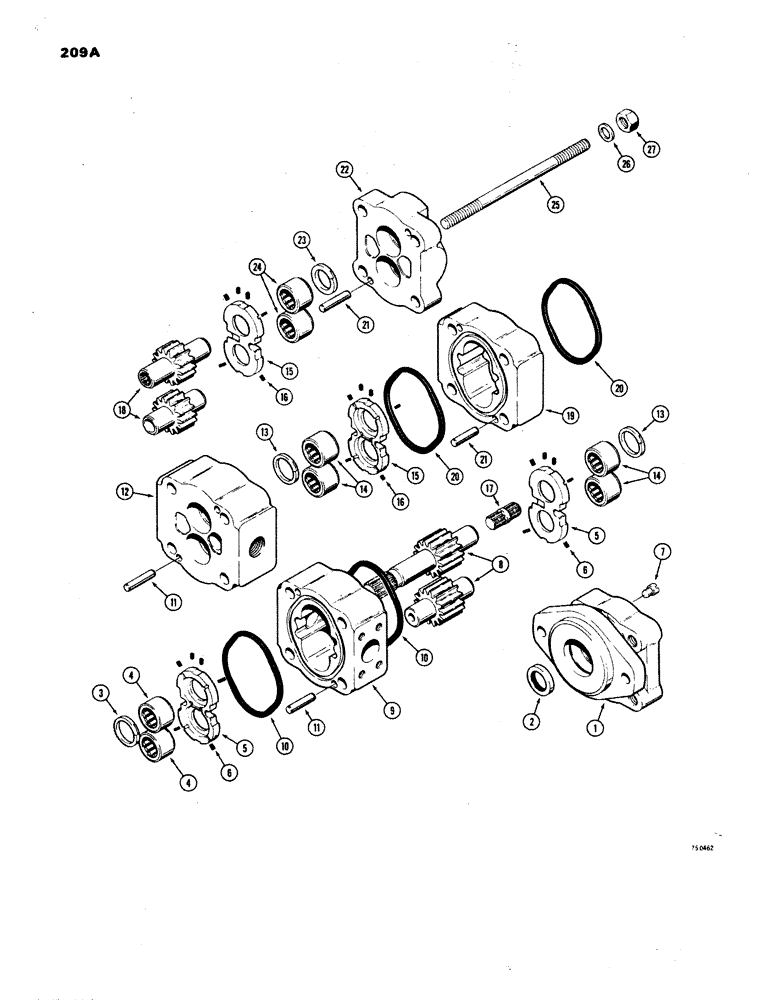

Запчасти Case W24B (209A) - L71667 LOADER AND STEERING PUMP (08) - HYDRAULICS

L71667

PUMP

- hydraulic, loader and steering (Commercial Shearing P51B)

1шт.

D70674

COVER

KIT - shaft end cover, Includes: Ref. 1 - 27

1шт.

1

NSS

NOT SOLD SEPARAT

COVER - shaft end

1шт.

2

L32318

SEAL

- double lip

1шт.

3

L32319

SEALING RING,32.68mm ID x 44.88mm OD x 3.81mm Thk

- ring, bronze

1шт.

4

D70679

BEARING

- roller

2шт.

5

D70680

PLATE

- thrust

2шт.

6

L32099

SEAL

- pocket

12шт.

7

L32320

PLUG

- special (7/16" - 20 NF)

1шт.

8

L35336

GEAR

AND SHAFT SET - matched, drive and driven (2 - 1/4" dia.)

1шт.

D70676

HOUSING

KIT - gear housing (2 - 1/4" dia. gears), Includes: Ref. 9 - 11

1шт.

9

NSS

NOT SOLD SEPARAT

HOUSING - gear

1шт.

10

D41391

O-RING

SEAL - gasket

2шт.

11

W16323

DOWEL

PIN - dowel

4шт.

D70677

KIT

- bearing carrier, Includes: Ref. 12 - 16

1шт.

12

NSS

NOT SOLD SEPARAT

CARRIER - bearing

1шт.

13

L32319

SEALING RING,32.68mm ID x 44.88mm OD x 3.81mm Thk

- ring, bronze

2шт.

14

D70679

BEARING

- roller

4шт.

15

D70680

PLATE

- thrust

2шт.

16

L32099

SEAL

- pocket

12шт.

17

L32324

SHAFT

- connecting

1шт.

18

L32325

GEAR

S - matched set, drive and driven (1" dia. gears)

1шт.

D70678

HOUSING

KIT - gear housing (1" dia. gears), Includes: Ref. 19 - 21

1шт.

19

NSS

NOT SOLD SEPARAT

HOUSING - gear

1шт.

20

D41391

O-RING

GASKET - seal

2шт.

21

W16323

DOWEL

PIN - dowel

4шт.

D70675

COVER

KIT - port end cover, Includes: Ref. 22 - 24

1шт.

22

NSS

NOT SOLD SEPARAT

COVER - port end

1шт.

23

L32319

SEALING RING,32.68mm ID x 44.88mm OD x 3.81mm Thk

- ring, bronze

1шт.

24

D70679

BEARING

- roller

2шт.

25

S82201

STUD

- special, 5/8" - 11 NC

4шт.

26

D31957

WASHER

- special, 5/8"

4шт.

27

86625068

NUT,5/8"-11, G8

- hex., special (5/8" - 11 NC)

4шт.
