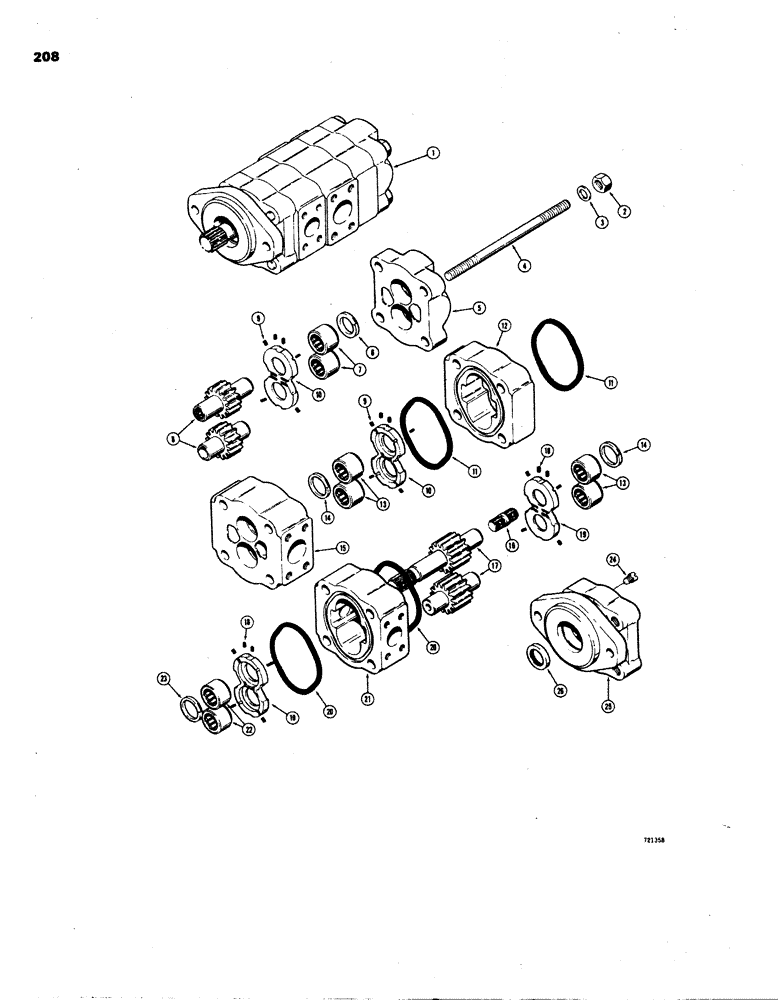

Запчасти Case W24B (208) - L51862 LOADER AND STEERING PUMP (08) - HYDRAULICS

1

L51862

PUMP, HYDRAULIC

PUMP ASSEMBLY - hydraulic, loader and steering (Commercial Shearing #C - P50B - 54), Includes: Ref. 2 - 26

1шт.

2

86625068

NUT,5/8"-11, G8

- hex., special (5/8" - 11 NC)

4шт.

3

D31957

WASHER

- special

4шт.

4

S82201

STUD

- special (5/8" - 11 NC)

4шт.

L32327

KIT

COVER ASSEMBLY - closed end, Includes: Ref. 5 - 7

1шт.

5

NSS

NOT SOLD SEPARAT

COVER - closed end

1шт.

6

L32319

SEALING RING,32.68mm ID x 44.88mm OD x 3.81mm Thk

RING - seal, bronze

1шт.

7

D31942

ROLLER BEARING,1.29" ID x 1.9375" OD x 1.125"

BEARING - roller

2шт.

8

L32325

GEAR

S - matched set, drive and driven (1" dia. gears)

1шт.

L35391

HOUSING

ASSEMBLY - gear (1" dia. gears) closed end, Includes: Ref. 9 - 12

1шт.

9

L32099

SEAL

- pocket, thrust plate

12шт.

10

D31955

PLATE

- thrust

2шт.

11

D41391

O-RING

SEAL - ring, square edge

2шт.

12

NSS

NOT SOLD SEPARAT

HOUSING - gear (1" dia. gears) Closed end

1шт.

L35338

KIT

CARRIER ASSEMBLY - bearing, Includes: Ref. 13 - 15

1шт.

13

D31942

ROLLER BEARING,1.29" ID x 1.9375" OD x 1.125"

BEARING - roller

4шт.

14

L32319

SEALING RING,32.68mm ID x 44.88mm OD x 3.81mm Thk

RING - seal, bronze

2шт.

15

NSS

NOT SOLD SEPARAT

CARRIER - bearing

1шт.

16

L32324

SHAFT

- connecting, drive gears

1шт.

17

L35336

GEAR

AND SHAFT SET - matched, drive and driven gears (2 - 1/4" dia.) Integral shaft

1шт.

L35392

BODY

HOUSING ASSEMBLY - gear (2 - 1/4" dia. gears) shaft end, Includes: Ref. 18 - 21

1шт.

18

L32099

SEAL

- pocket, thrust plate

12шт.

19

D31955

PLATE

- thrust

2шт.

20

D41391

O-RING

SEAL - ring, square edge

2шт.

21

NSS

NOT SOLD SEPARAT

HOUSING - gear (2 - 1/4" dia. gears) Shaft end

1шт.

L32317

COVER

ASSEMBLY - shaft end, Includes: Ref. 22 - 26

1шт.

22

D31942

ROLLER BEARING,1.29" ID x 1.9375" OD x 1.125"

BEARING - roller

2шт.

23

L32319

SEALING RING,32.68mm ID x 44.88mm OD x 3.81mm Thk

RING - seal, bronze

1шт.

24

L32320

PLUG

- special (7/16" - 20 NF)

1шт.

25

NSS

NOT SOLD SEPARAT

COVER - shaft end

1шт.

26

L32318

SEAL

- shaft, double lip

1шт.
