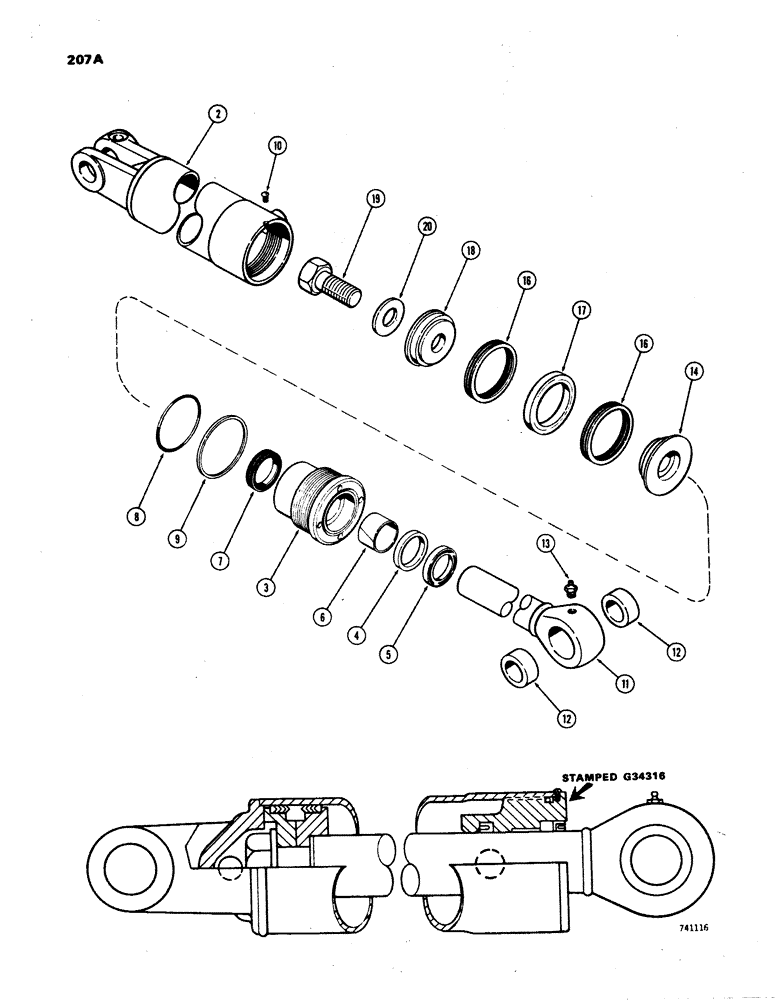

Запчасти Case W24B (207A) - G34316 CLAM CYLINDER, GLAND IS STAMPED WITH CYLINDER PART NUMBER (08) - HYDRAULICS

1

G34316

CYLINDER

- clam (4" dia. x 10 - 1/2" stroke) Not shown, Includes: Ref. 2 - 20

2шт.

2

G32346

JACK BODY,20" L

TUBE - cylinder body

1шт.

G34331

GLAND

ASSEMBLY - hand stamp for identification, Includes: Ref. 3 - 9

1шт.

3

NSS

NOT SOLD SEPARAT

GLAND

1шт.

4

NSS

NOT SOLD SEPARAT

RING - gland center bearing

1шт.

5

D95144

WIPER SEAL,50.77mm ID x 63.52mm OD x 7.92mm Thk

Wiper - piston rod, outer (2 x 2-1/2 x 5/16")

1шт.

Part of Cylinder Repair Seal Kit P/N G34335

1шт.

6

G34322

BEARING

- center

1шт.

Part of Cylinder Repair Seal Kit P/N G34335

1шт.

7

D36971

RING

SEAL - piston rod (2 x 2 - 1/2 x 7/16")

1шт.

Part of Cylinder Repair Seal Kit P/N G34335

1шт.

8

A27507

O-RING,0.139" Thk x 3.984" ID, -242, Cl 5, 75 Duro

"O" RING - gland (4 x 4 - 1/4 x 1/8")

1шт.

Part of Cylinder Repair Seal Kit P/N G34335

1шт.

9

G32176

BACK-UP RING,101.22mm ID x 107.32mm OD x 1.4mm Thk

- Gland "O" Ring

1шт.

Part of Cylinder Repair Seal Kit P/N G34335

1шт.

10

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - gland lock (#8 - 32 x 1/4" self tapping)

1шт.

11

G34317

ROD

ASSEMBLY - piston (2" dia.), Includes: Ref. 12

1шт.

12

D29325

BUSHING,38.33mm ID x 53.98mm OD x 22.23mm L

- piston

2шт.

13

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease (1/8" P.T., straight)

1шт.

14

G33159

PISTON

- split (rod end)

1шт.

G33239

PACKING

ASSEMBLY - piston, Includes: Ref. 16 and 17

1шт.

Part of Cylinder Repair Seal Kit P/N G34335

1шт.

16

NSS

NOT SOLD SEPARAT

PACKING - "V" type

2шт.

17

NSS

NOT SOLD SEPARAT

RING - center bearing

1шт.

18

D46930

PISTON

- split (bolt end)

1шт.

19

28-2040

BOLT,Hex, 1-1/4" - 12 x 2-1/2", Gr 8

- Hex, 1-1/4"-12 NF x 2-1/2", G8, Piston

1шт.

20

G32351

WASHER

- piston bolt (1 - 1/4 x 2 - 1/2 x 3/16")

1шт.

G34335

REPAIR KIT

SEAL KIT - cylinder repair, Includes: Ref. 5 - 9 and 15

1шт.
