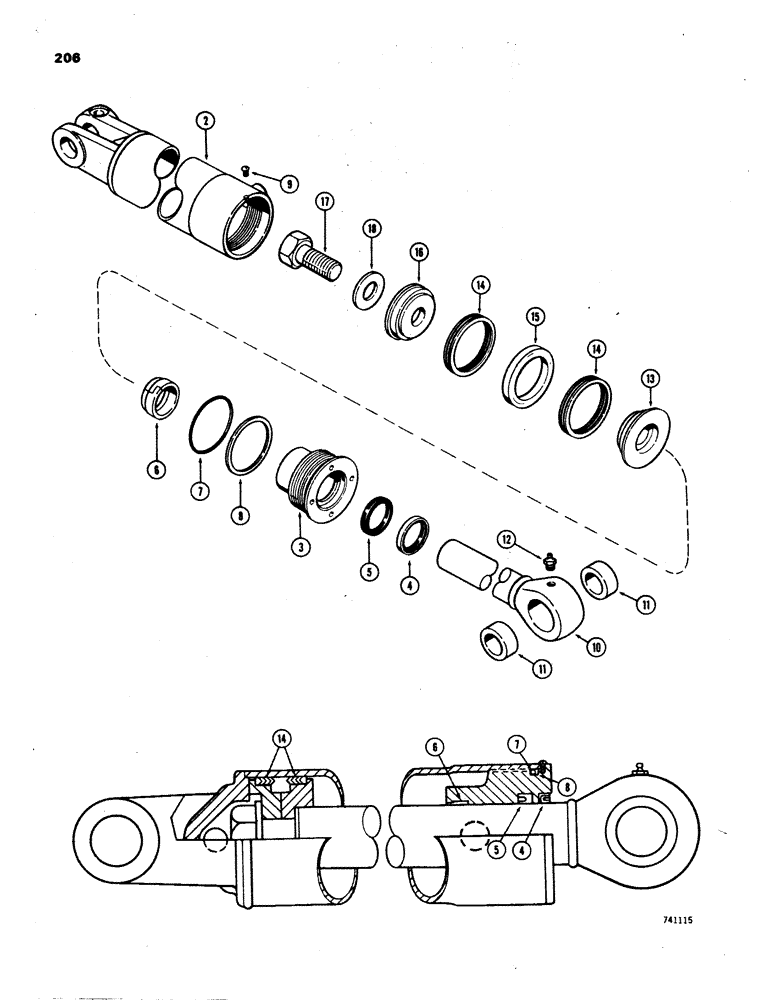

Запчасти Case W24B (206) - G32388 CLAM CYLINDER, GLAND IS NOT STAMPED WITH CYLINDER PART NUMBER (08) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
1
G32388
CYLINDER
- clam (4" dia. x 10 - 1/2" stroke) Not shown, Includes: Ref. 2 - 18
2шт.
2
G32346
JACK BODY,20" L
TUBE - cylinder body
1шт.
G32800
GLAND
ASSEMBLY - with bushing (Replaces G32737), Includes: Ref. 3 - 8
1шт.
3
NSS
NOT SOLD SEPARAT
GLAND
1шт.
4
D95144
WIPER SEAL,50.77mm ID x 63.52mm OD x 7.92mm Thk
Wiper - piston rod, outer (2 x 2-1/2 x 5/16")
1шт.
Part of Cylinder Repair Seal Kit P/N G32299
1шт.
5
D36971
RING
SEAL - piston rod (2 x 2 - 1/2 x 7/16")
1шт.
Part of Cylinder Repair Seal Kit P/N G32299
1шт.
6
D27380
SCRAPER RING
WIPER - piston rod, inner (not used w/repair gland)
1шт.
Part of Cylinder Repair Seal Kit P/N G32299
1шт.
7
A27507
O-RING,0.139" Thk x 3.984" ID, -242, Cl 5, 75 Duro
"O" RING - gland (4 x 4 - 1/4 x 1/8")
1шт.
Part of Cylinder Repair Seal Kit P/N G32299
1шт.
8
G32176
BACK-UP RING,101.22mm ID x 107.32mm OD x 1.4mm Thk
- Gland "O" Ring
1шт.
Part of Cylinder Repair Seal Kit P/N G32299
1шт.
9
187-1031
SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"
SCREW - gland lock (#8 - 32 x 1/4" self tapping)
1шт.
10
G32248
ROD
- piston, 2" dia. (Service with G34317 Rod, D46930 piston and G34331 gland assembly - parts list Figure 207A), Includes: Ref. 11
1шт.
11
D29325
BUSHING,38.33mm ID x 53.98mm OD x 22.23mm L
- piston rod
2шт.
12
219-1
LUBE NIPPLE,1/8" - 27 NPTF
FITTING - grease (1/8" P.T. str.)
1шт.
13
D46424
PISTON
- split (rod end)
1шт.
14
D47204
PACKING,89.15mm ID x 100.86mm OD
ASSEMBLY - piston ("V" type)
2шт.
Part of Cylinder Repair Seal Kit P/N G32299
1шт.
15
D47209
BEARING,3.006" ID x 3.987" OD x 0.631"
RING - center bearing
1шт.
16
D46930
PISTON
- split (bolt end)
1шт.
17
28-2040
BOLT,Hex, 1-1/4" - 12 x 2-1/2", Gr 8
- Hex, 1-1/4"-12 NF x 2-1/2", G8, Piston
1шт.
18
D36434
WASHER
- piston bolt (1 - 5/16 x 2 - 1/2 x 5/32")
1шт.
G32299
KIT
SEAL KIT - cylinder repair, Includes: Ref. 4 - 8 and 14
1шт.
