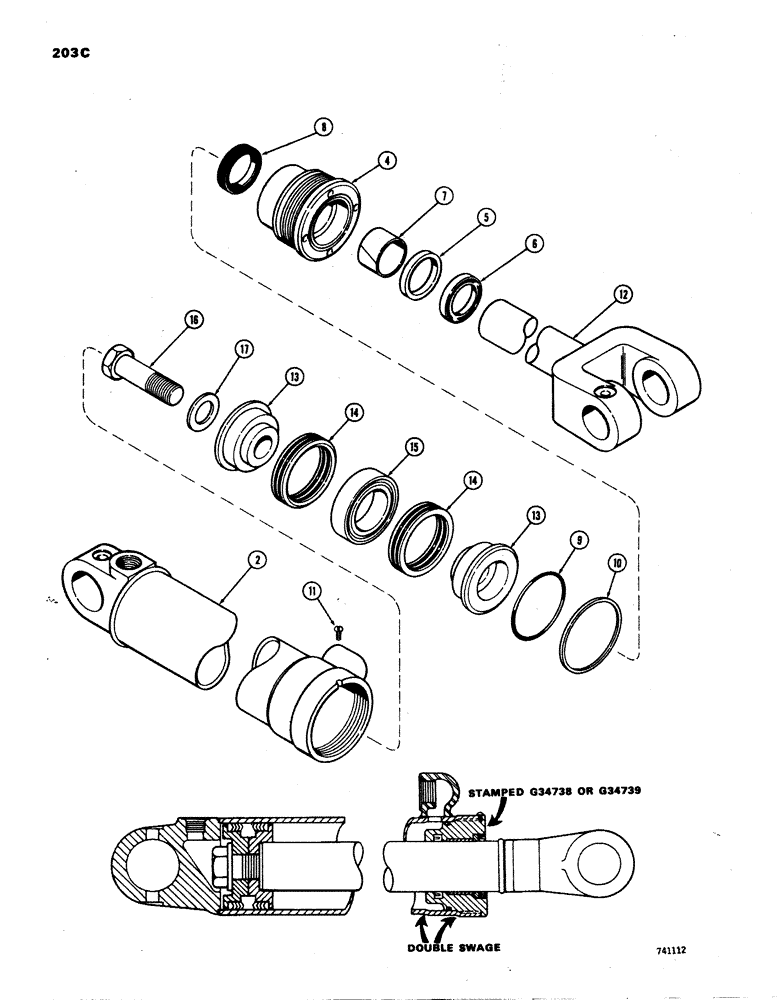

Запчасти Case W24B (203C) - G34738 AND G34739 LOADER LIFT CYLINDERS, GLAND IS STAMPED WITH CYL PART NUMBER (08) - HYDRAULICS

1

G34738

CYLINDER BLOCK

CYLINDER - lift, R.H. (5" dia. x 34 - 1/4" stroke) Not shown, Includes: Ref. 2 - 17

1шт.

1

G34739

CYLINDER

- lift, L.H. (5" dia. x 34 - 1/4" stroke) Not shown, Includes: Ref. 2 - 17

1шт.

2

G34736

TUBE

- cylinder body, R.H. (With double swage)

1шт.

2

G34737

TUBE

- cylinder body, L.H. (With double swage)

1шт.

G34735

GLAND

ASSEMBLY, Includes: Ref. 4 - 10

1шт.

4

NSS

NOT SOLD SEPARAT

GLAND

1шт.

5

NSS

NOT SOLD SEPARAT

RING - gland center bearing

1шт.

6*

D95148

WIPER SEAL

WIPER - piston rod, outer (3 x 3 - 1/2 x 5/16")

1шт.

Part of Cylinder Repair Seal Kit P/N G34753

1шт.

7*

G34313

BEARING

- center

1шт.

Part of Cylinder Repair Seal Kit P/N G34753

1шт.

8*

D45572

ROD

SEAL - piston rod (3 x 3 - 1/2 x 7/16")

1шт.

Part of Cylinder Repair Seal Kit P/N G34753

1шт.

9*

NLS

NO LONGER SERVICED

"O" RING - gland (4 - 3/4 x 5 x 1/8")

1шт.

Part of Cylinder Repair Seal Kit P/N G34753

1шт.

10*

S92639

RING

- gland "O" ring back - up

1шт.

Part of Cylinder Repair Seal Kit P/N G34753

1шт.

11

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - gland lock (#8 - 32 x 1/4" self tapping)

1шт.

12

G34135

ROD

- piston (3" dia.)

1шт.

13

D48562

PISTON,123.95mm Bore, 63.5mm Rod, 34.92mm W

- split (bolt & rod end)

2шт.

14*

D47206

PACKING

ASSEMBLY - piston ("V" type)

2шт.

Part of Cylinder Repair Seal Kit P/N G34753

1шт.

15

D47211

BEARING WASHER,95.28mm ID x 126.69mm OD x 19mm Thk

RING - center bearing

1шт.

16

28-2056

BOLT,Hex, 1-1/4" - 12 x 3-1/2", Gr 8

- piston (1 - 1/4 x 3 - 1/2" N.F. hex.)

1шт.

17

G32351

WASHER

- piston bolt (1 - 1/4 x 2 - 1/2 x 3/16")

1шт.

G34753

SEAL

KIT - cylinder repair, Includes: Ref. 6 - 10 and 14

1шт.
