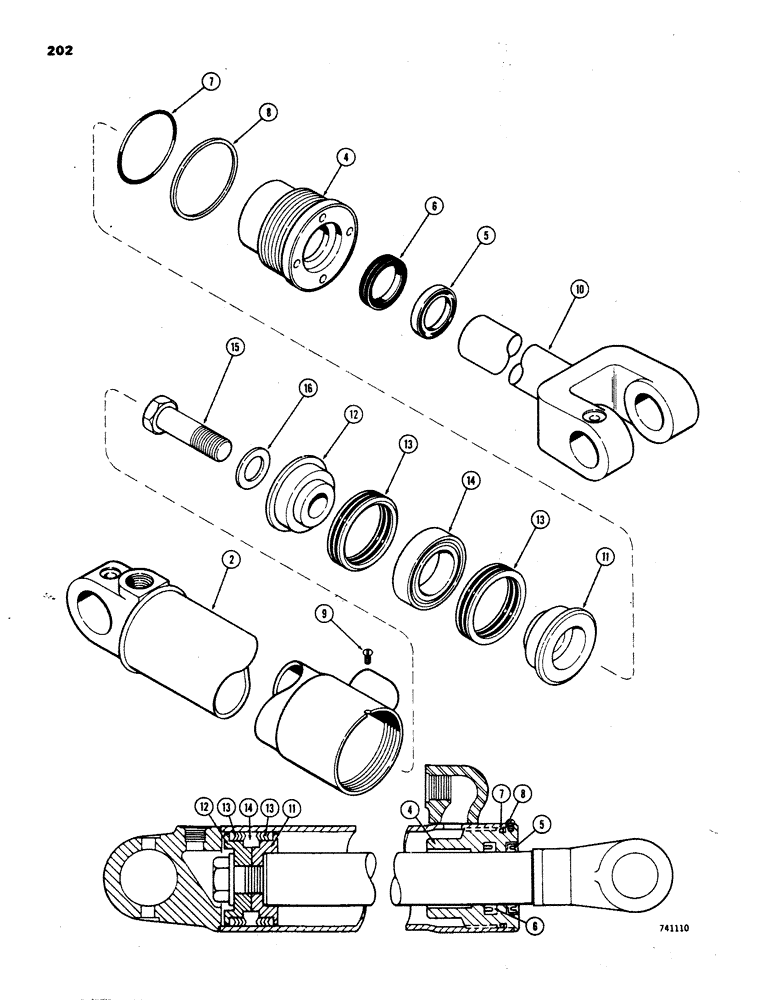

Запчасти Case W24B (202) - G32693 AND G32694 LOADER LIFT CYLINDER, GLAND IS NOT STAMPED WITH CYL PART NUMBER (08) - HYDRAULICS

1

G32693

CYLINDER

- lift, L.H. (5" dia. x 34 - 1/4" stroke) Not shown When stock is exhausted, G34309 will be supplied

1шт.

1

G34309

CYLINDER

- lift, L.H. (5" dia. x 34 - 1/4" stroke) Not shown

1шт.

1

G32694

CYLINDER ASSY.

CYLINDER - lift, R.H. (5" dia. x 34 - 1/4" stroke) Not shown When stock is exhausted G34310 will be supplied

1шт.

1

G34310

CYLINDER - lift, R.H. (5" dia. x 34 - 1/4" stroke) Not shown

1шт.

2

G33805

TUBE

- cylinder body, L.H., Includes: Ref. 4 - 10

1шт.

2

G33804

TUBE,43.93" L

- cylinder body, R.H., Includes: Ref. 4 - 10

1шт.

G32803

GLAND

ASSEMBLY - includes bushing, Includes: Ref. 4 - 8

1шт.

4

NSS

NOT SOLD SEPARAT

gland

1шт.

5

D95148

WIPER SEAL

WIPER - piston rod, outer (3 x 3 - 1/2 x 5/16")

1шт.

Part of Cylinder Repair Seal Kit P/N G32668

1шт.

6

D45572

ROD

SEAL - piston rod (3 x 3 - 1/2 x 7/16")

1шт.

Part of Cylinder Repair Seal Kit P/N G32668

1шт.

7

G10347

O-RING,0.139" Thk x 4.984" ID, -250, Cl 5, 75 Duro

"O" ring - gland (5 x 5 - 1/4 x 1/8")

1шт.

Part of Cylinder Repair Seal Kit P/N G32668

1шт.

8

G32105

RING,126.42mm ID x 132.52mm OD x 1.4mm Thk

- gland "O" ring back - up

1шт.

Part of Cylinder Repair Seal Kit P/N G32668

1шт.

9

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - gland lock (#8 - 32 x 1/4" self tapping)

1шт.

10

G34135

ROD

- piston (3" dia.)

1шт.

11

D48562

PISTON,123.95mm Bore, 63.5mm Rod, 34.92mm W

- split (rod end), Includes: Ref. 13 - 16

1шт.

12

D46932

PISTON

-split (bolt end), Includes: Ref. 13 - 16

1шт.

13

D47206

PACKING

ASSEMBLY - piston ("V" type)

2шт.

Part of Cylinder Repair Seal Kit P/N G32668

1шт.

14

D47211

BEARING WASHER,95.28mm ID x 126.69mm OD x 19mm Thk

RING - center bearing

1шт.

15

28-2056

BOLT,Hex, 1-1/4" - 12 x 3-1/2", Gr 8

-piston (1 - 1/4 x 3 - 1/2" N.F.hex.)

1шт.

16

G32351

WASHER

- piston bolt (1 - 1/4 x 2 - 1/2 x 3/16")

1шт.

G32668

KIT

SEAL KIT - cylinder repair, Includes: Ref. 5 - 8 and 13

1шт.
