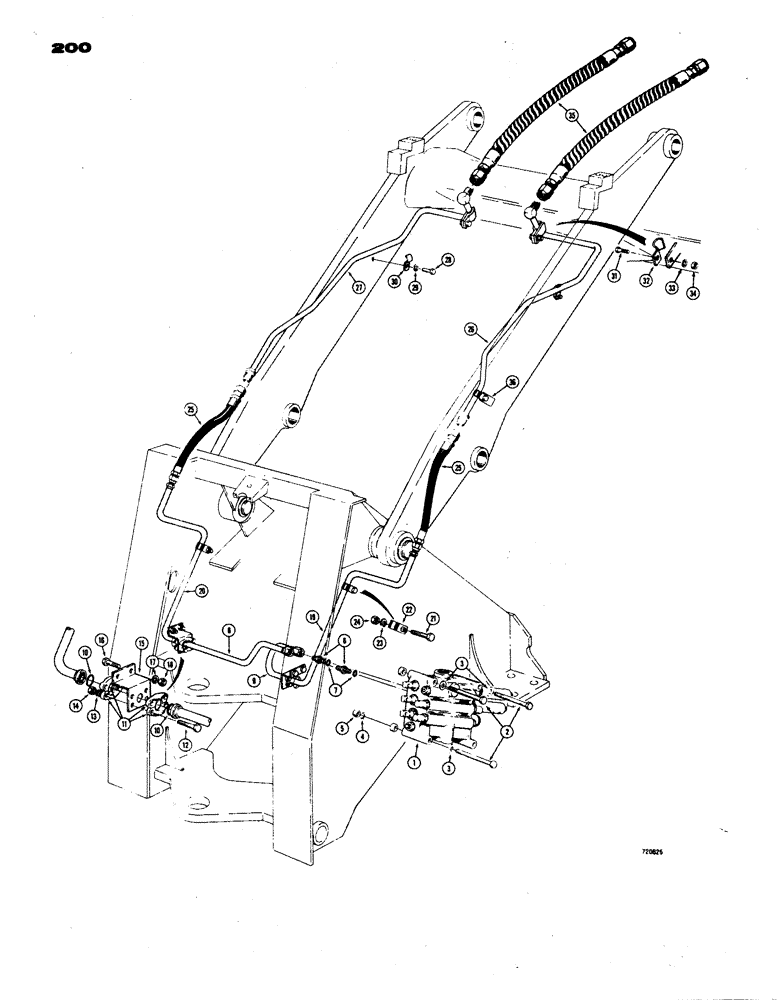

Запчасти Case W24B (200) - LOADER HYD, 4-IN-1 BUCKET HYD,MODELS W/SPLIT FLANGE HYD TUBES USED BEFORE TRAC SN.9115977 (08) - HYDRAULICS

1

L51863

VALVE

- hydraulic, 3 spool (Parts list Figure 212)

1шт.

2

13-888

BOLT,Hex, 1/2" - 13 x 5-1/2", Gr 5

3шт.

3

95-8

WASHER,1/2"

- standard wrot 1/2"

3шт.

4

92-8

LOCK WASHER,1/2"

3шт.

5

25-108

NUT,1/2"-13, G5

- hex. (1/2" - 13 NC)

3шт.

6

218-5069

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

CONNECTOR, HYD., , Male, Straight, Incl. Ref. 7 1 5/16"-12, 37º x 1 5/16"-12, O-Ring

2шт.

7

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

SEAL - "O" ring

1шт.

8

L25639

TUBE,21.7, 8.1" L

- valve to clam cylinder, rod end (Used before tractor Sn. 9115977) When stock is exhausted, order L56195 tube for service. See illustration on Figure 201A, Ref. No.8)

1шт.

9

L25638

TUBE

- valve to clam cylinder, closed end (Used before tractor Sn 9115977) When stock is exhausted, order L56193 tube for service. See illustration on Figure 201A, Ref. No. 9)

1шт.

10

A7560

O-RING,0.139" Thk x 1.296" ID, -219, Cl 5, 75 Duro

SEAL - "O" ring

4шт.

11

A12306

FLANGE

- split, tube

8шт.

12

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

8шт.

13

92-6

LOCK WASHER,3/8"

8шт.

14

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

8шт.

15

L51473

BRACKET

- tube mounting (Used before tractor Sn. 9115977).

2шт.

16

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

4шт.

17

92-6

LOCK WASHER,3/8"

4шт.

18

25-106

NUT,3/8"-16, G5

- hex. (3/8" _ 16 NC)

4шт.

19

L46916

TUBE,7, 4" L

- hydraulic, clam cylinder (R.H. front frame) Used before tractor Sn. 9115977) When stock is exhausted, order L56195 tube for service. See illustration on Figure 201A, Ref. No. 8.

1шт.

20

L46917

TUBE

- hydraulic, clam cylinder (L.H. front frame) Used before tractor Sn. 9115977) When stock is exhausted, order L59193 tube for service. See illustration on Figure 201A, Ref. No. 9.

1шт.

21

13-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

4шт.

22

R14668

CLAMP

- tube

4шт.

23

92-6

LOCK WASHER,3/8"

4шт.

24

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

4шт.

25

D42969

HOSE

- hydraulic, at frame (36" long)

2шт.

26

L46966

TUBE,59, 18.2" L

- hydraulic, R.H. frame

1шт.

27

L46967

TUBE,59, 18.2" L

- hydraulic, L.H. frame

1шт.

28

13-610

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5, Full Thd

2шт.

29

92-6

LOCK WASHER,3/8"

2шт.

30

49891

CLAMP

- tube

2шт.

31

13-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

2шт.

32

A12308

CLAMP

- tube

2шт.

33

92-6

LOCK WASHER,3/8"

2шт.

34

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

2шт.

35

L48756

HOSE

- hydraulic, at bucket (53" long)

2шт.

36

L41323

SPACER - clamp (If used)

2шт.
