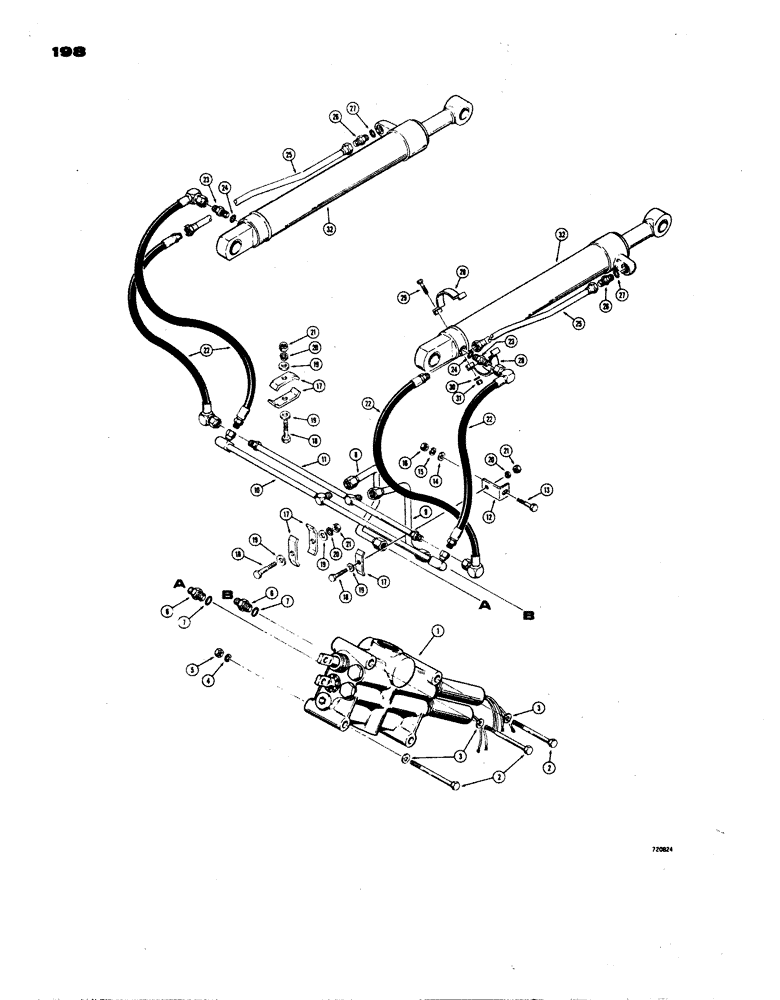

Запчасти Case W24B (198) - LOADER HYDRAULICS, LOADER BUCKET CYLINDER HYDRAULICS (08) - HYDRAULICS

1

REF

INSTRUCTION

VALVE - hydraulic control (See Figures 210 and 212 for proper valves)

1шт.

2

13-888

BOLT,Hex, 1/2" - 13 x 5-1/2", Gr 5

3шт.

3

95-8

WASHER,1/2"

- standard wrot 1/2"

3шт.

4

92-8

LOCK WASHER,1/2"

3шт.

5

9635082

NUT,5/16" - 18, Gr 5

- hex. (1/2" - 13 NC)

3шт.

6

218-5069

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

CONNECTOR, HYD., , Male, Straight, Incl. Ref. 7 1 5/16"-12, 37º x 1 5/16"-12, O-Ring

2шт.

7

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

SEAL - "O" ring

1шт.

8

L52671

TUBE ASSY.,1" OD

TUBE - hydraulic, to manifold and closed end of cylinders

1шт.

9

L17738

HYD TUBE,1" OD x 13.2, 7.2" L

TUBE - hydraulic, to manifold and rod end of cylinders

1шт.

10

L52675

MANIFOLD

- hydraulic, to closed end of cylinders

1шт.

11

L17747

MANIFOLD - hydraulic, to rod end of cylinders

1шт.

12

L17787

BRACKET - tube clamping

2шт.

13

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

HHCS - 3/8" - 16 NC x 1 1/2"

2шт.

14

95-6

WASHER,3/8"

- standard wrot () 3/8"

2шт.

15

92-6

LOCK WASHER,3/8"

2шт.

16

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

2шт.

17

L17788

CLAMP

- tube

6шт.

18

13-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

HHCS - 3/8" - 16 NC x 2"

4шт.

19

95-6

WASHER,3/8"

- standard wrot () 3/8"

6шт.

20

92-6

LOCK WASHER,3/8"

4шт.

21

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

4шт.

22

L17745

HOSE

- hydraulic manifold to cylinders (36.3" long)

4шт.

23

218-5110

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

Connector, male, straight (replaced 218-5069 ), Incl. Ref. 24 90º, 1 5/16"-12, 37º x 1 5/16"-12, O-Ring

2шт.

24

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

SEAL - "O" ring

1шт.

25

L17789

TUBE,1" OD x 32.2, 1.9" L

- hydraulic, at rod end of cylinder

2шт.

26

L46238

HYD CONNECTOR

CONNECTOR - male, straight, Includes: Ref. 27

2шт.

27

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

SEAL - "O" ring

1шт.

28

L17785

CLAMP

- tube

4шт.

29

13-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

4шт.

30

92-6

LOCK WASHER,3/8"

4шт.

31

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

4шт.

32

REF

INSTRUCTION

CYLINDER - hydraulic, bucket (Parts list Figures 204 and 205A)

2шт.
