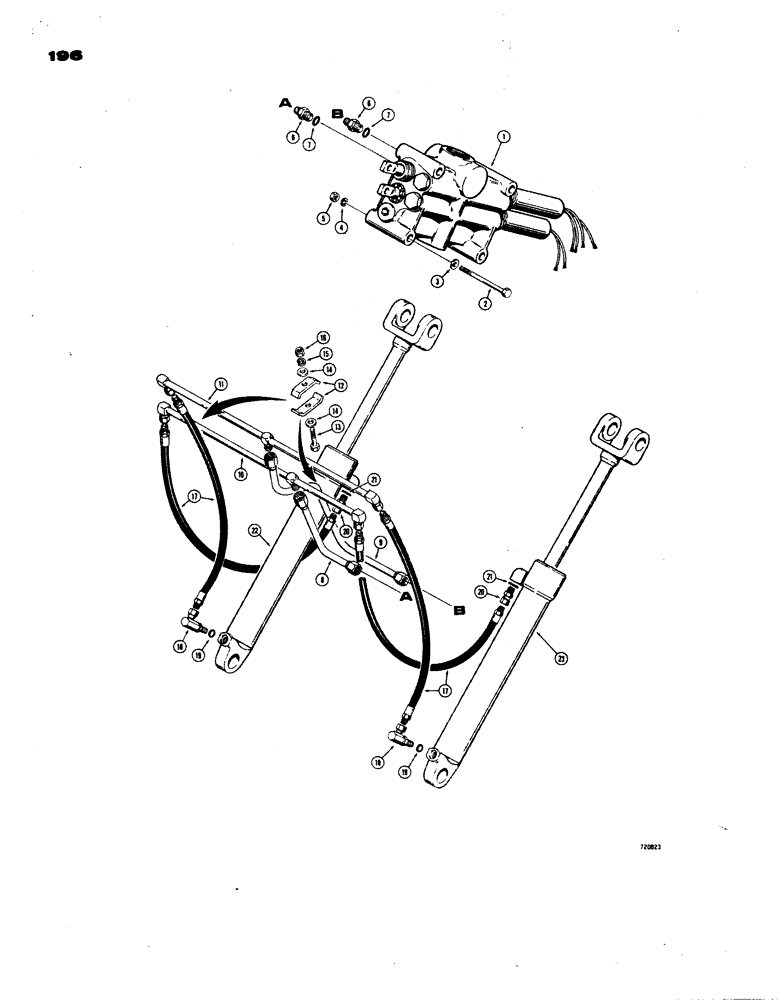

Запчасти Case W24B (196) - LOADER HYDRAULICS, LOADER LIFT CYLINDER HYDRAULICS (08) - HYDRAULICS

1

REF

INSTRUCTION

VALVE - hydraulic control (See Figures 210 and 212 for proper valves)

1шт.

2

13-888

BOLT,Hex, 1/2" - 13 x 5-1/2", Gr 5

3шт.

3

95-8

WASHER,1/2"

flat 1/2"

3шт.

4

92-8

LOCK WASHER,1/2"

3шт.

5

25-108

NUT,1/2"-13, G5

- hex. (1/2" - 13 NC)

3шт.

6

218-5069

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

CONNECTOR, HYD., , Male, Straight, Incl. Ref. 7 1 5/16"-12, 37º x 1 5/16"-12, O-Ring

2шт.

7

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

SEAL - "O" ring

1шт.

8

L17737

TUBE,1" OD x 7.05, 4.4" L

- hydraulic, valve to cylinder (Rod end)

1шт.

9

L17735

HYD TUBE,1" OD

TUBE - hydraulic, valve cylinder (Closed end)

1шт.

10

L17748

HOSE

TUBE - hydraulic, manifold (Lower)

1шт.

11

L17750

MANIFOLD

TUBE - hydraulic, manifold (Upper)

1шт.

12

L17788

CLAMP

- tube

8шт.

13

13-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

4шт.

14

95-6

WASHER,3/8"

- plain, 3/8"

8шт.

15

92-6

LOCK WASHER,3/8"

4шт.

16

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

4шт.

17

L17746

HOSE

- hydraulic, to cylinders (42 - 1/2" long)

4шт.

18

218-5202

90 ELBOW,90 Degree, 1 1/16"-12 O-Ring x 3/4" NPSM Fem

- adjustable, 90 degree (Swivel), Includes: Ref. 19

2шт.

19

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

SEAL - "O" ring

1шт.

20

218-5250

HYD CONNECTOR,1-1/16" - 12 ORB x 3/4" NPT

ADAPTER - straight, swivel, Includes: Ref. 21

2шт.

21

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

SEAL - "O" ring

1шт.

22

REF

INSTRUCTION

CYLINDER - lift, L.H. (See Figures 202 - 203C for cylinders)

1шт.

23

REF

INSTRUCTION

CYLINDER - lift, R.H. (See Figures 202 - 203C for cylinders)

1шт.
