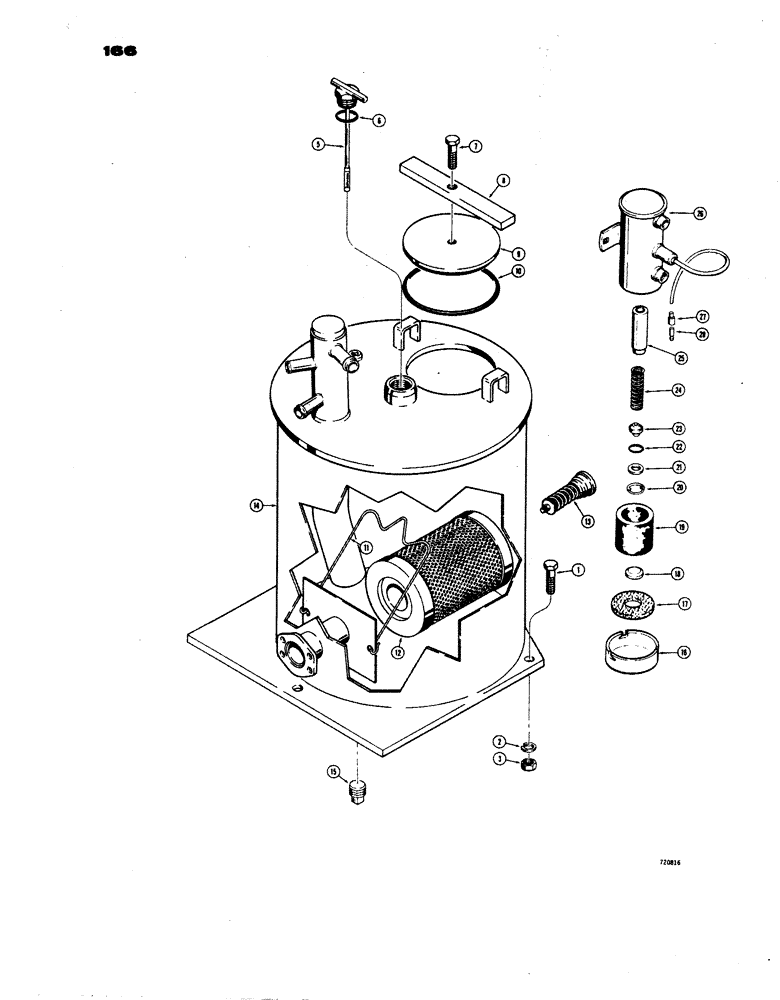

Запчасти Case W24B (166) - HYDRAULIC TANK AND RELATED PARTS (08) - HYDRAULICS

1

13-1028

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5, Full Thd

3шт.

2

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

3шт.

3

25-1010

NUT,5/8"-11, G5

3шт.

5

L16680

GAUGE

- oil level

1шт.

6

218-5012

O-RING,0.118" Thk x 1.720" ID, -924, Cl 6, 90 Duro

SEAL - "O" ring

1шт.

7

113-419

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5, Full Thd

Hex, 1/2"-13 x 2 1/2", G5, Full Thd

1шт.

8

L50741

BAR

- cover holddown

1шт.

9

L50743

COVER

- hydraulic tank (When stock is exhausted, order L55406 cover and L55410 seal for service)

1шт.

9

L55406

COVER

- hydraulic tank

1шт.

10

L52161

SEALING RING

QUAD RING - seal, cover (.134" thick) L50743 cover only

1шт.

10

L55410

O-RING,0.275" Thk x 7.22" ID, -442, Cl 5, 75 Duro

SEAL - "O" ring, cover (.275" thick) L55406 cover only

1шт.

11

L51089

SPRING

- filter holddown

1шт.

12

L50384

FILTER, ELEMENT

FILTER - hydraulic tank

1шт.

13

L50383

VALVE

- relief, bypass

1шт.

14

L53392

TANK

- hydraulic (When stock is exhausted, order L55422 tank for service)

1шт.

14

L55422

TANK

- hydraulic

1шт.

15

221-677

DRAIN PLUG,Sq Hd, 3/4" NPT

PLUG - magnetic drain

1шт.

L52634

PUMP

- fuel transfer, L52634, Includes: Ref. 16 - 26

1шт.

16

A40312

COVER

- fuel pump, L52634

1шт.

17

A40315

GASKET

- cover, L52634 fuel pump

1шт.

18

A40311

MAGNET

- plunger, L52634 fuel pump

1шт.

19

L33210

FILTER SCREEN

SCREEN - filtering, L52634 fuel pump

1шт.

20

A40316

RETAINER

- seal, "O" ring, L52634 fuel pump

1шт.

21

A40317

WASHER

- special, retainer, L52634 fuel pump

1шт.

22

A40318

O-RING,0.429" ID x 0.106"

SEAL - "O" ring, valve, L52634 fuel pump

1шт.

23

A40313

CUP

VALVE - cup, L52634 fuel pump

1шт.

24

L32394

VALVE SPRING

SPRING - plunger (When stock is exhausted, order L35316 spring for service), L52634 fuel pump

1шт.

24

L35316

SPRING

- plunger, L52634 fuel pump

1шт.

25

A40310

PLUNGER

- fuel pump, L52634

1шт.

26

NSS

NOT SOLD SEPARAT

BODY - pump, fuel transfer, L52634

1шт.

27

L11779

TUBE,0.187" ID x 0.187" OD x 1" L

SLEEVE - insulation, L52634 fuel pump

1шт.

28

L11778

CONNECTOR, ELEC

CONNECTOR - male, bullet, L52634 fuel pump

1шт.
