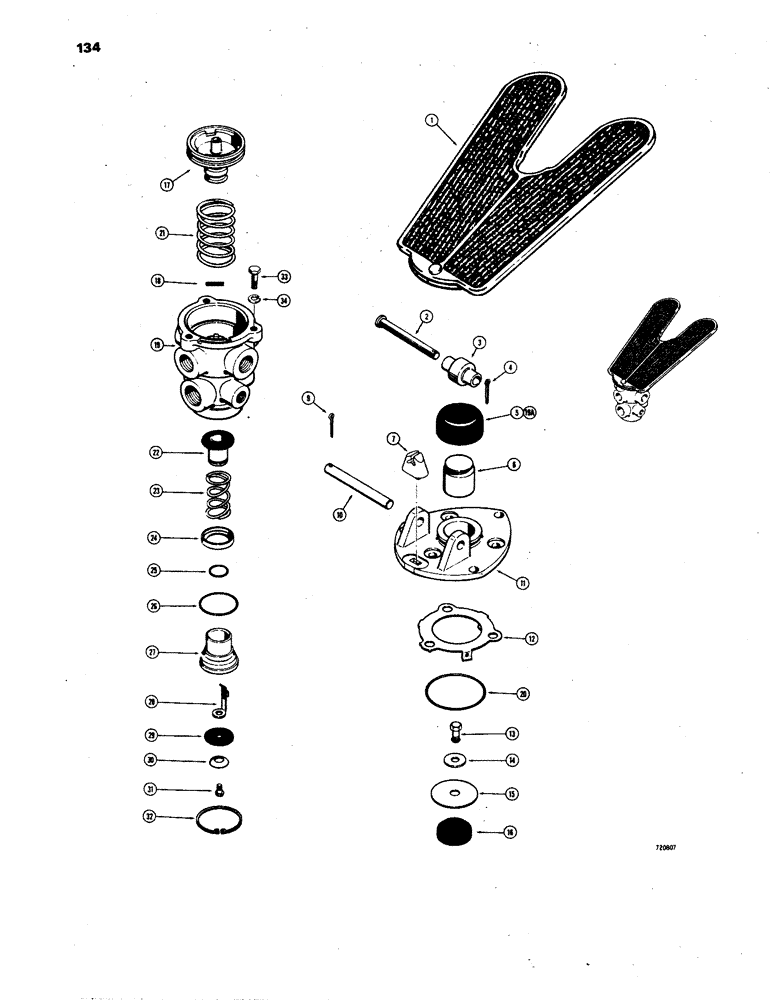

Запчасти Case W24B (134) - BRAKE SYSTEM, TREADLE AND BRAKE VALVE, L43595 BRAKE TREADLE (07) - BRAKES
№
Артикул
Название
Примечание
Количество
L43595
PEDAL
TREADLE AND PLATE ASSY. - brake, Includes: Ref. 1 - 11
1шт.
1
NSS
NOT SOLD SEPARAT
TREADLE - brake
1шт.
2
L32345
PIN
- roller, brake
1шт.
3
L32752
ROLLER
- treadle, brake
1шт.
4
132-25
COTTER PIN,3/32" x 5/8"
Pin, Split (Cotter), 3/32" x 5/8"
1шт.
5
L31364
BOOT
- treadle, brake
1шт.
6
L31363
PLUNGER
- treadle, brake
1шт.
7
L31362
BUTTON
- stop, treadle (Brake)
1шт.
9
132-26
COTTER PIN
Pin, Split (Cotter), 3/32" x 3/4"
1шт.
10
L32346
PIN
- fulcrum, treadle (Brake)
1шт.
11
NSS
NOT SOLD SEPARAT
PLATE - treadle, brake
1шт.
L15782
BRAKE VALVE
ASSEMBLY - brake, L15782, Includes: Ref. 12 - 32
1шт.
12
L31382
- valve, brake, L15782
1шт.
L32329
PISTON ASSY.
PISTON ASSEMBLY - valve, brake, L15782, Includes: Ref. 13 - 17
1шт.
13
L31384
LOCK BOLT,Hex, 1/4" - 20 x 5/8"
BOLT - special, L15782 brake valve
1шт.
14
L31387
WASHER
- special, L15782 brake valve
1шт.
15
L32331
SEAT - spring, piston, L15782 brake valve
1шт.
16
L31385
SPRING
- rubber, piston, L15782 brake valve
1шт.
17
L32330
PISTON - valve, L15782 brake
1шт.
18
L31459
FILTER
- vent, L15782 brake valve
1шт.
19
NSS
NOT SOLD SEPARAT
BODY - valve, L15782 brake
1шт.
L31806
KIT
VALVE ASSEMBLY - inlet exhaust, L15782 brake, Includes: Ref. 19A - 31
1шт.
19a
L31364
BOOT
- treadle, brake, L15782 valve
1шт.
20
L31381
O-RING,2 1/8" ID x 2 3/8" OD x 1/8"
SEAL - "O"ring, piston, L15782 brake valve
1шт.
21
L31379
SPRING
- return, piston, L15782 brake valve
1шт.
22
L31375
VALVE
- check, inlet and exhaust, L15782 brake valve
1шт.
23
L31378
VALVE SPRING
SPRING - valve, L15782 brake
1шт.
24
L31376
RETAINER
- valve, L15782 brake
1шт.
25
L31377
O-RING,5/8" ID x 3/4" OD x 1/16"
SEAL - "O"ring, check valve (Small), L15782 brake
1шт.
26
L31374
O-RING
SEAL - "O"ring, check valve (Large), L15782 brake
1шт.
27
L31370
SEAT
- check valve, exhaust, L15782 brake
1шт.
28
L31371
SPRING
- preload, inlet valve, L15782 brake
1шт.
29
L31372
DIAPHRAGM
- valve, L15782 brake
1шт.
30
L31373
WASHER
- special, diaphragm, L15782 brake valve
1шт.
31
182-84
SCREW,Slotted Pan Hd, #8-32 x 3/8"
- machine, slotted pan head (#8 - 32 NC x 3/8"), L15782 brake valve
1шт.
32
D27833
SNAP RING,1.625", Int, #162
Ring, Snap, , L15782 brake valve 1.625", Int, #162
1шт.
33
13-512
BOLT,Hex, 5/16" - 18 x 3/4", Gr 5
L15782 brake valve Hex, 5/16"-18 x 3/4", G5, Full Thd
3шт.
34
92-5
LOCK WASHER,5/16"
L15782 brake valve 5/16"
3шт.
Выбрано товаров: 38
