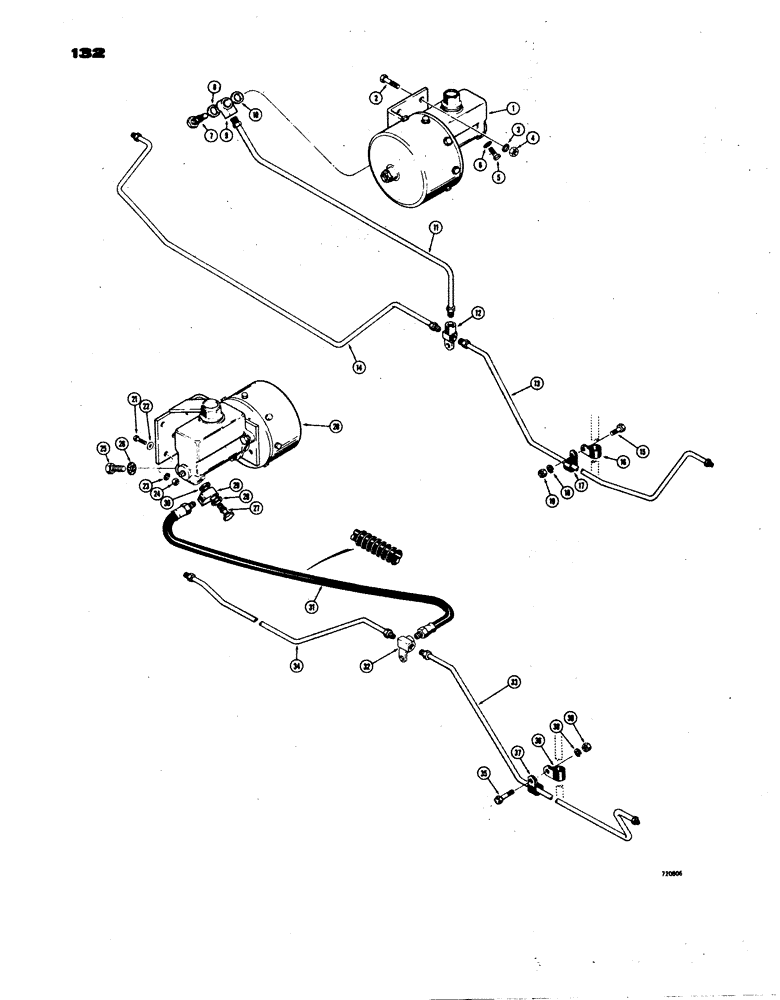

Запчасти Case W24B (132) - BRAKE SYSTEM, BRAKE MASTER CYLINDERS TO WHEEL CYLINDERS (07) - BRAKES

1

L40512

CYLINDER

MASTER CYLINDER - brake, front axle (Parts list Figure 136)

1шт.

2

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

HHCS - 3/8" - 16 NC x 1/2" (Master cylinder mounting)

3шт.

3

92-6

LOCK WASHER,3/8"

3шт.

4

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

3шт.

5

114-412

BOLT,Hex, 1/2" - 20 x 5/8", Gr 5, Full Thd

1шт.

6

L114099

WASHER,13.64mm ID x 21.21mm OD x 1.59mm Thk

GASKET - bolt

1шт.

7

A12864

BOLT

- special, tube fitting

1шт.

8

51200242

SEAL,15.24mm ID x 20.64mm OD x 0.81mm Thk

- fitting, outer

1шт.

9

A18531

FITTING

- brake, Serial Range: cylinder-tube

1шт.

10

L114099

WASHER,13.64mm ID x 21.21mm OD x 1.59mm Thk

GASKET - fitting, inner

1шт.

11

L46511

TUBE

- front brakes, master, Serial Range: cylinder-tee

1шт.

12

A12452

FITTING

TEE - front brake system

1шт.

13

L16506

TUBE

- tee to R.H. wheel cylinder, front

1шт.

14

L16507

TUBE

- tee to L.H. wheel cylinder, front

1шт.

15

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

Clamp mounting Hex, 3/8"-16 x 1", G5, Full Thd

2шт.

16

R14668

CLAMP

- tube support

2шт.

17

49851

SHIELD

- brake tube

2шт.

18

92-6

LOCK WASHER,3/8"

2шт.

19

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

2шт.

20

L40663

CYLINDER

MASTER CYLINDER - brake, rear axle (Parts list Figure 136)

1шт.

21

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

(Master cylinder mounting) Hex, 3/8"-16 x 1 1/4", G5, Full Thd

3шт.

22

95-6

WASHER,3/8"

- standard wrot () 3/8"

3шт.

23

92-6

LOCK WASHER,3/8"

3шт.

24

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

3шт.

25

114-412

BOLT,Hex, 1/2" - 20 x 5/8", Gr 5, Full Thd

1шт.

26

L114099

WASHER,13.64mm ID x 21.21mm OD x 1.59mm Thk

GASKET - zinc plated bolt

1шт.

27

A12864

BOLT

- special, tube fitting

1шт.

28

51200242

SEAL,15.24mm ID x 20.64mm OD x 0.81mm Thk

- fitting, outer

1шт.

29

A18531

FITTING

- brake, Serial Range: cylinder-tube

1шт.

30

L114099

WASHER,13.64mm ID x 21.21mm OD x 1.59mm Thk

GASKET - fitting, inner

1шт.

31

L14848

HOSE

- rear brakes, master cylinder to tee (18-1/4" long)

1шт.

32

L14854

TEE

- rear brake system

1шт.

33

L16507

TUBE

- tee to R.H. wheel cylinder, rear

1шт.

34

L16506

TUBE

- tee to L.H. wheel cylinder, rear

1шт.

35

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

36

R14668

CLAMP

- tube support

2шт.

37

515-2363

CLAMP,M6.3, Insul, 3/8" Bolt

- brake tube

2шт.

38

92-6

LOCK WASHER,3/8"

2шт.

39

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

2шт.
