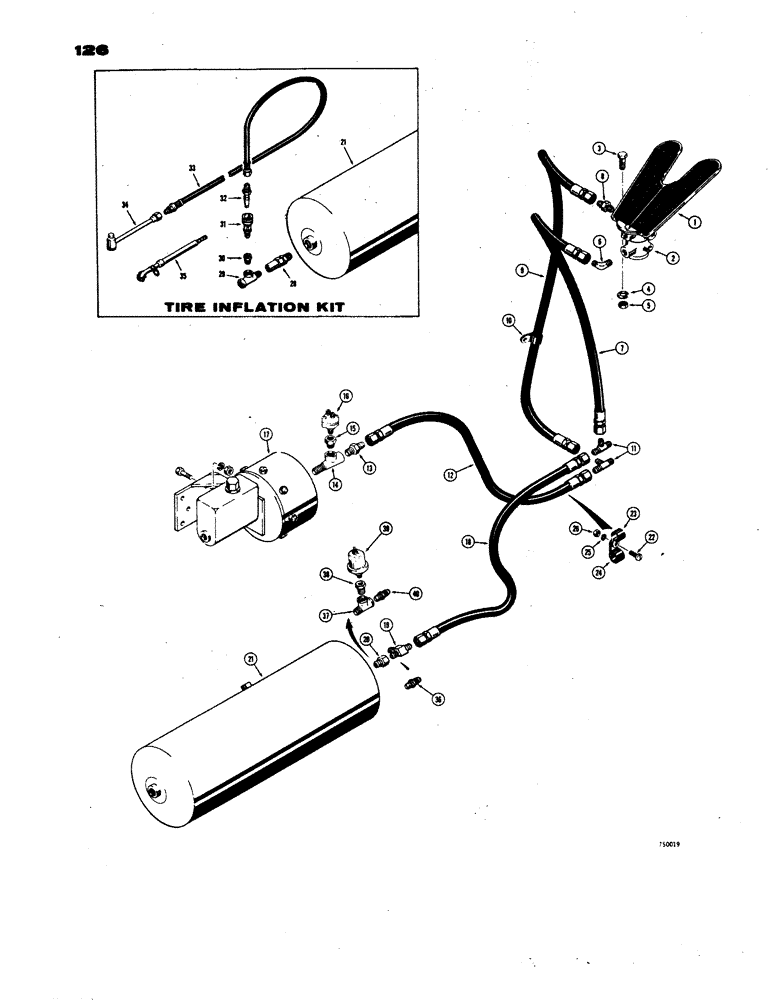

Запчасти Case W24B (126) - BRAKE SYSTEM, TREADLE TO REAR MASTER CYLINDER AND RESERVOIR (07) - BRAKES

1

L43595

PEDAL

TREADLE ASSEMBLY - brake (Parts list Figure 134)

1шт.

2

L15782

BRAKE VALVE

- control, brake (Parts list Figure 134)

1шт.

3

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

(Treadle mounting) Hex, 5/16"-18 x 1", G5, Full Thd

3шт.

4

92-5

LOCK WASHER,5/16"

3шт.

5

9635082

NUT,5/16" - 18, Gr 5

- hex. (5/16" - 18 NC)

3шт.

6

218-1054

ELBOW,90 Degree, 9/16"-18, 37 Degree x 1/2"-14, NPTF

- male, 90 degrees

1шт.

7

L52705

HOSE ASSY.

HOSE - lower rear port to valve to tee at pressure protection valve (44" long)

1шт.

8

218-454

HYD CONNECTOR,9/16" - 18 Male JIC x 1/2" - 14 Male NPTF

ADAPTER - male, straight

1шт.

9

L52708

HOSE

- upper, R.H. port of valve to tee at front brake master cylinder (63" long)

1шт.

10

515-23159

CLAMP,5/8", Insul, 3/8" Bolt

- hose to front fender

1шт.

11

218-613

TEE,9/16"-18, 37 Degree x 1/4"-18, NPTF Run

- male

2шт.

12

L52707

HOSE

- front brake master cylinder tee to rear brake master cylinder (98" long)

1шт.

13

218-443

HYD CONNECTOR,9/16" - 18 Male JIC x 1/4" - 18 Male NPTF

ADAPTER - male, straight

1шт.

14

221-1691

TEE,Street, 1/4" NPT

- street, master cylinder

1шт.

15

221-1051

REDUCER,Hex, 1/4" x 1/8" NPT

BUSHING - reducing, brake switch (If used)

1шт.

16

L47989

SWITCH

- stop light

1шт.

17

L40663

CYLINDER

MASTER CYLINDER - brake, rear axle (Parts list Figure 136)

1шт.

18

L52706

HOSE ASSY.

HOSE - tee at pressure protection valve to reservoir (115" long)

1шт.

19

218-613

TEE,9/16"-18, 37 Degree x 1/4"-18, NPTF Run

- male (If used)

1шт.

20

217-43

REDUCER,1/2" - 14 NPTF x 1/4" - 18 Fem NPTF

If used 1/2"-14 NPTF x 1/4"-18 Fem NPTF

1шт.

21

L14823

TANK

RESERVOIR - air, rear

1шт.

22

77-516

BOLT (SPREADER),M16 x 75mm, Cl 8.8

SCREW - machine, truss head (5/16" - 18 NC x 1")

4шт.

23

49838

CLAMP

- hose, small

4шт.

24

515-23159

CLAMP,5/8", Insul, 3/8" Bolt

- hose, large

4шт.

25

92-5

LOCK WASHER,5/16"

4шт.

26

9635082

NUT,5/16" - 18, Gr 5

- hex. (5/16" - 18 NC)

4шт.

28

L12586

VALVE

CHECK VALVE - air reservoir

1шт.

29

217-1064

TEE,1/2" - 14 Female x 1/2" - 14 Male Run

- pipe

1шт.

30

217-44

REDUCER,1/2" - 14 NPT x 3/8" - 18 NPT

Bushing 1/2"-14 NPTF x 3/8"-18 Fem NPTF

1шт.

31

L13978

VALVE

CHECK - air

1шт.

32

L13979

COUPLING

COUPLER - adapter

1шт.

33

L15274

HOSE

- inflation

1шт.

34

L13983

FAN

CHUCK - air

1шт.

35

L13977

GAUGE ASSY.

GAUGE - tire pressure

1шт.

36

218-454

HYD CONNECTOR,9/16" - 18 Male JIC x 1/2" - 14 Male NPTF

CONNECTOR - male, straight (If used)

1шт.

37

221-1693

TEE,Street, 1/2" NPT

- street (Used with L57176 sender)

1шт.

38

221-1054

BUSHING

- reducing (Used with L57176 sender)

1шт.

39

L57176

SENDER UNIT

SENDER - air pressure (Used on models with instrument cluster)

1шт.

40

218-454

HYD CONNECTOR,9/16" - 18 Male JIC x 1/2" - 14 Male NPTF

CONNECTOR - male, straight (Used with L57176 sender)

1шт.
